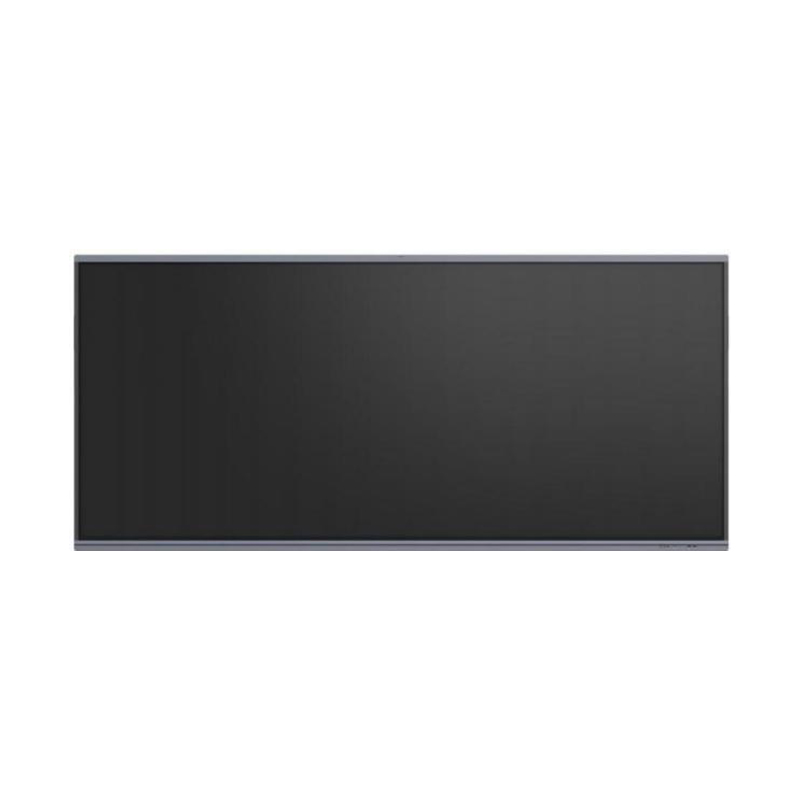

Widescreen Smart Conference Tablet FT-7101-92M

This 92" 5K Ultra HD display features a 21:09 aspect ratio, 5120×2160 resolution, and 400cd/m² brightness. It supports infrared touch with ±1mm accuracy, dual-pen writing, and split-screen multitasking. Equipped with an 8-array microphone, 2.1 audio system, and AI-powered gesture controls, it runs on Android 13.0 with an RK3588 chipset, 8GB RAM, and 64GB ROM. Connectivity includes USB 3.0, HDMI, Wi-Fi 6, and Bluetooth 5.0. Ideal for interactive and collaborative environments.
Categories:
Get Quote
Category
Description
  • Equipped with a 5K Ultra HD display, supporting full-channel 5K UI display
  • Front 2 USB 3.0, Rear 2 USB 3.0, Top 2 USB 3.0 (automatic switch)
  • Supports wireless screen sharing
  • 4mm thick tempered glass with anti-glare coating
  • High-precision infrared touch control (±1mm accuracy), ≤2mm writing height for precise writing
  • Supports dual-pen simultaneous writing with dual-color display
  • Intelligent wake-up from standby mode via HDMI/VGA/RS232 channel & network signal input
  • Advanced welcome applications for enhanced interactive experiences
  • Split-screen multitasking for broader applications
  • Eye protection, screen lock, and touch lock tools
  • AI-powered camera recognition for gesture-based controls (e.g., back, confirm, mute, screenshot, volume control, WPS document navigation) (requires external camera)
  • 8-array microphone with intelligent noise reduction and voice enhancement
Parameter
Display Parameters
Item Specification
Size 92”
Response Time 6.5ms
Aspect Ratio 21:09
Display Area 2141.952 × 903.636 mm
Resolution 5120 (H) × 2160 (V)
Pixel Pitch 0.41835(W) × 0.41835(H) mm
Refresh Rate 60Hz
Color Depth 1.07B (10-bit)
NTSC Color Gamut 90% (Typ)
Contrast Ratio 4000:1 (Typ)
Viewing Angle 178° (H/V)
Backlight Type DLED
Brightness 400cd/m² (Typ)
Lifespan ≥30,000 hours
Audio System
Item Specification
Channels 2.1
Power 2 × 16W (Tweeter) + 20W (Woofer)
Microphone
Item Specification
Pickup Distance 0~8m
Quantity 8
Pickup Angle 0°~180°
Features Echo cancellation, intelligent noise reduction, reverb suppression
Touch & Writing System
Item Specification
Technology Infrared Touch
Supported OS Windows 10/8/7, Android, Linux, Mac OS X, Chrome
Android Touch Points 20 Points
OPS Touch Points 40 Points
Minimum Recognition 2mm (Over 90% touch area)
Input Methods Finger, Stylus, Opaque Objects
Response Time ≤2.0ms
Touch Accuracy ±1mm (Over 90% touch area)
Writing Height ≤2mm
Writing Display Single Pen Dual-Color
Output Coordinates 32768 (W) × 32768 (D)
Built-in System
Item Specification
Chipset RK3588
OS Version Android 13.0
CPU Quad-core A76 + Quad-core A55
GPU ARM Mali-G610 MC4
Clock Speed 2.4GHz
RAM 8GB
ROM 64GB
Languages Simplified Chinese, English
Wireless Connectivity
Item Specification
Bluetooth Version 5
Frequency 2.4GHz
Range 0~10m
Wi-Fi Version 802.11 ac/b/g/n/ax
Wi-Fi Frequency 2.4GHz/5GHz
Wi-Fi Range 0~10m
Remarks Includes Wireless Module
Front Ports
Port Quantity
USB 3.0 2
Type-C 1
Buttons 1
Onboard Ports
Port Quantity
USB 3.0 4 (2 Onboard + 2 Top)
USB 2.0 1
Type-C IN 2
Touch OUT 2.0 3
HDMI IN 4
DP IN 1
HDMI OUT 1
RS232 1
SPDIF 1
Audio OUT 1
Audio IN 1
RJ45 IN 1
RJ45 OUT 1
Power Parameters
Item Specification
Power Input 100-240V~, 50/60Hz, Max Power 250W
Max Power Consumption TBD
Standby Power Consumption ≤0.5W
Dimensions & Weight
Item Specification
Device Dimensions (L×W×H) 2203 × 1000 × 92 mm
Packaging Dimensions (L×W×H) 2335 × 225 × 1140 mm
Device + Wall Mount Thickness 129 mm
VESA Mount (L×W) 1000 × 400 mm
Wall Mount Screw Size M8 × 20 mm
Net Weight 88.26 kg
Gross Weight TBD
Accessories
Item Quantity
Power Cable 1
Stylus 1
Wall Mount 1
Quick Start Guide 1
Environmental Factors
Item Specification
Operating Temperature 0°C ~ 40°C
Operating Humidity 10% ~ 90% RH
Storage Temperature -20°C ~ 60°C
Storage Humidity 10% ~ 90% RH
Operating Altitude Below 5000m
