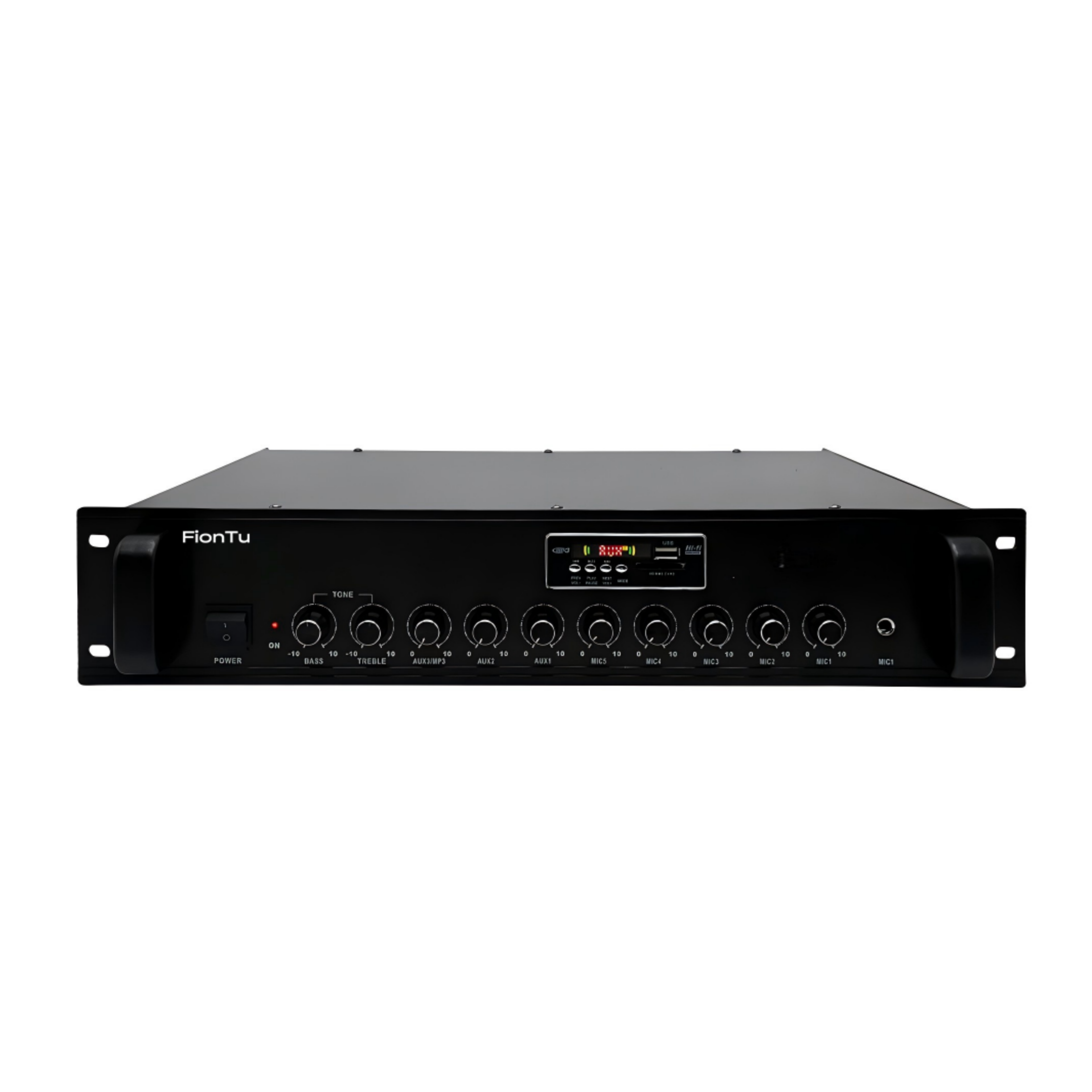

Preamplifier FP4-C9803

This preamplifier features multiple input options, including 5 microphone and 3 auxiliary inputs with priority settings, offering advanced audio control and emergency signal management. It supports cross-mixing, independent volume and tone adjustments, ensuring high-quality audio performance in a sleek, professional 2U cabinet design.
Categories:
Get Quote
Category Tag
Description
Parameter
Microphone 1-5 Input SensitivityMic: 5mV/600Ω unbalanced, RCA: 775mV/10kΩ unbalanced
Auxiliary 1-3 InputsAUX 1, 2, and 3: 3500mV/10kΩ unbalanced
EMC 1-2 InputsRAC: Unbalanced 200mV-1000mV/10kΩ, MIC: Unbalanced 5mV-25mV/600Ω
Frequency Response20Hz-20kHz (±3dB)
Signal-to-Noise RatioMIC Input: 50dB, AUX Input: 80dB
Tone AdjustmentBass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Power Supply~220V/50Hz
Power Consumption20W
Dimensions480*330*90mm
Weight4.54kg
Donwload
FP4-C9803
