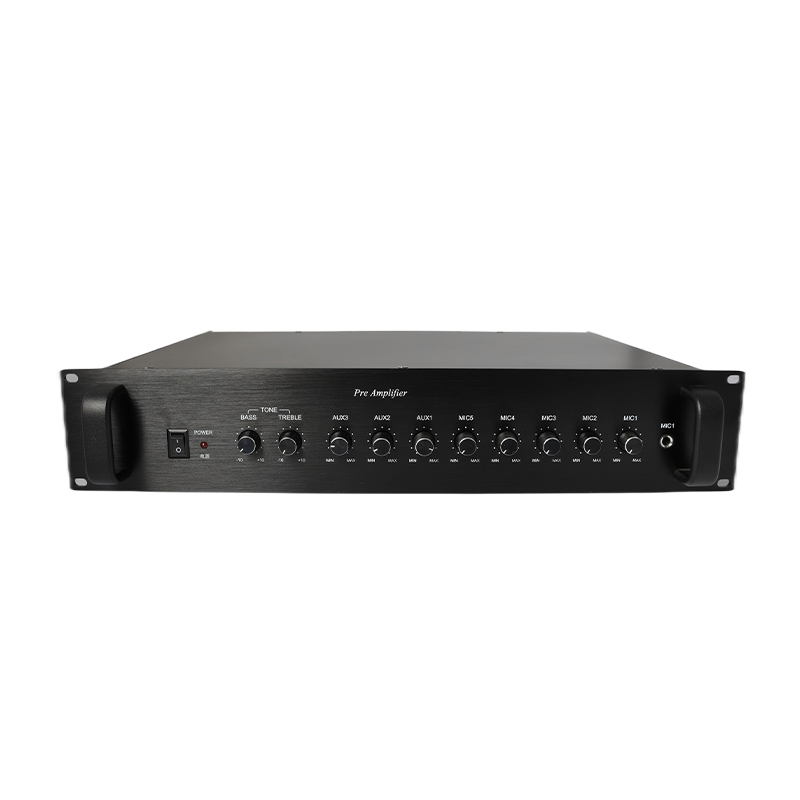

Preamplifier FP4-C68058

The device features 5 MIC inputs, 3 AUX inputs, and 2 EMC emergency inputs with priority functions for MIC5. - It offers independent volume control for MIC and AUX channels, along with bass and treble adjustments. - Designed for professional audio mixing with high sensitivity and dynamic range.
Categories:
Get Quote
Category Tag
Description
  • It has 5 microphone (MIC) inputs, 3 standard signal line (AUX) inputs, and 2 emergency line (EMC) inputs
  • The 5th microphone (MIC5) has the highest priority and forced cut-in priority functions; the MIC1 and EMC highest priority functions can be selected alternately through the pull switch, and customers can choose the priority according to the usage
  • The 4-way emergency input line has secondary priority and forced cut-in priority function
  • MIC1, 2, 3, 4, 5 and 2 emergency input (EMC) channels are equipped with line auxiliary input interface function
  • MIC1, 2, 3, 4 and AUX1, 2, 3 can be cross-mixed output
  • The microphone (MIC) input channel and the line (AUX) input channel can adjust the volume independently, and there is a total volume control knob
  • Treble (TREBLE) and bass (BASS) are independently adjusted
    • Parameter
    Input sensitivity of microphones 1-5microphone: 5mV/600Ω unbalanced; line RCA: 775mV /10KΩ unbalanced
    Auxiliary 1-3 inputAUX 1.2.3: 3500mV/10KΩ unbalanced
    EMC1-2 inputRAC: unbalanced 200mV～1000mV/10KΩ; MIC: unbalanced 5mV～25mV/600Ω
    Frequency response20Hz-20KHz (±3dB)
    Signal-to-noise ratioMIC input: 50dB; AUX input: 80dB
    Tone adjustmentBass: ±10dB at 100Hz; Treble: ±10dB at 10KHz
    Power supply~220V/50Hz
    Power consumption20W
    Donwload
    FP4-C68058
