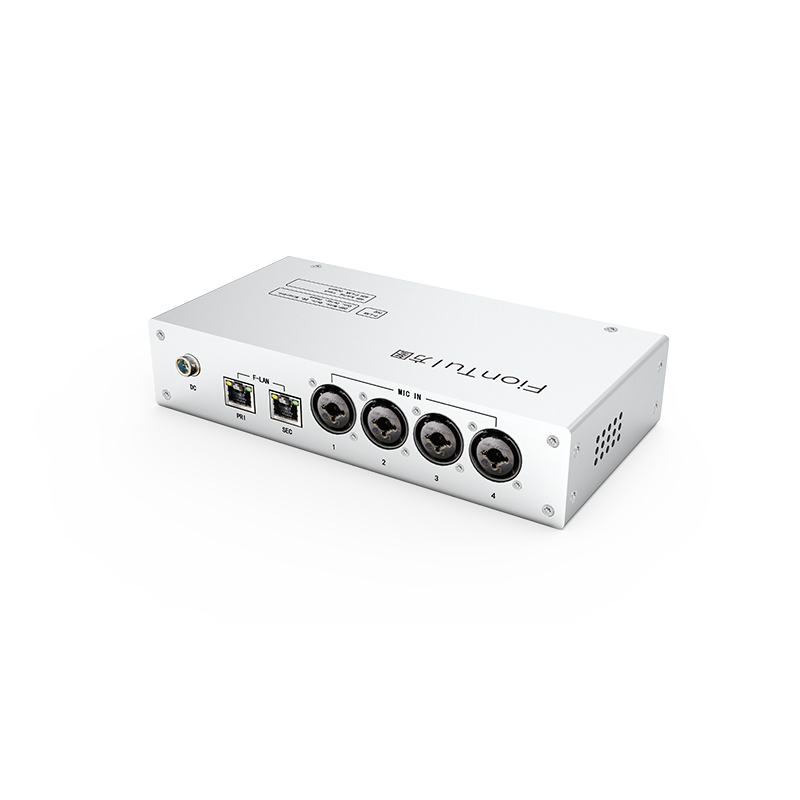

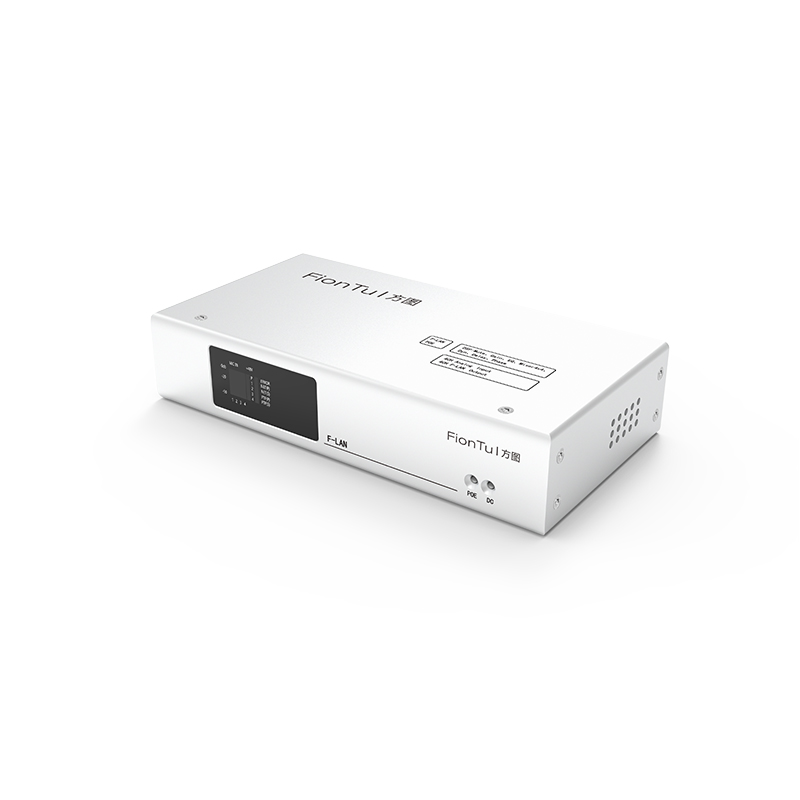

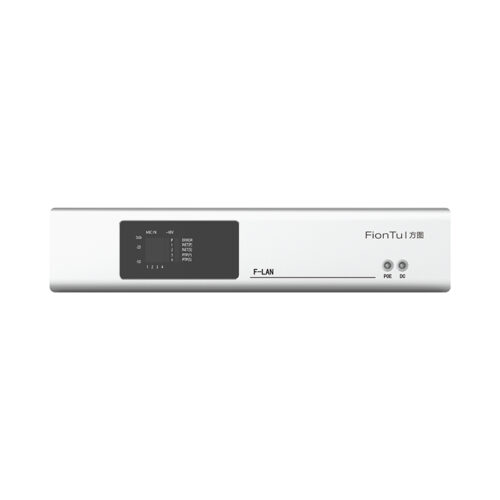

Network Audio Interface FT-NDB04P

This product supports the F-LAN protocol and FT-Designer software for configuration. It features 4-way Line/Mic inputs with +48V phantom power and a pre-stage gain range of 0-36dB. Dual 100M network interfaces, PoE power supply, and built-in DSP processing for audio adjustments are also included.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Support F-LAN protocol
  • Support FT-Designer software debugging

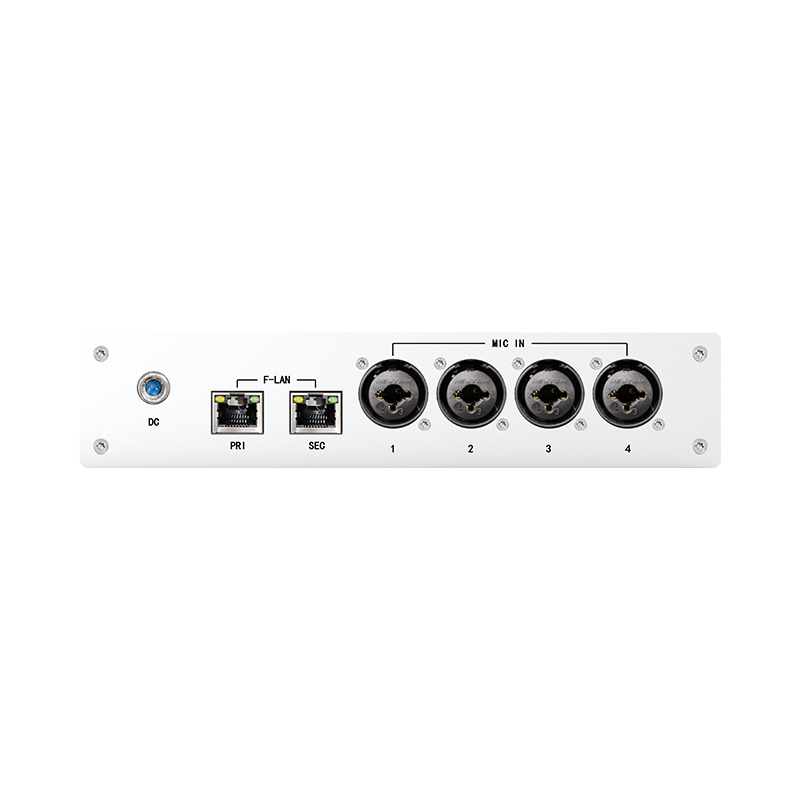

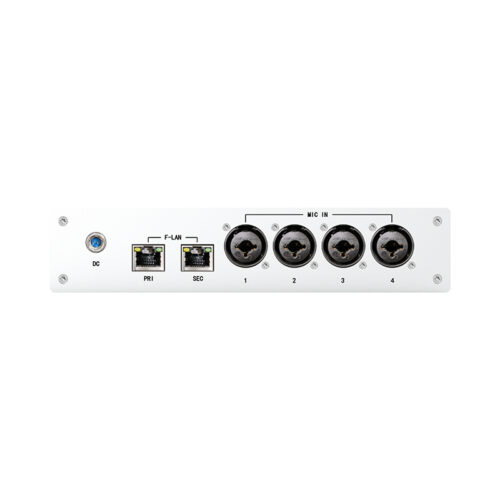

  • Support 4-way Line/Mic input (XLR connector), support independently enabled +48V phantom power
  • Pre-stage gain range 0-36dB
  • Maximum input level: Line+15dBu (0dB gain), Mic+45dBu (36dB gain)
  • Dual 100M network interface, support PoE power supply
  • Built-in DSP processing, support frequency division, equalization, dynamics, delay, volume, mixing, etc.
    • Parameter
    Power supplyPOE, voltage DC12 V/1A
    Working current (peak)1000 mA
    Sampling rate48 KHz, 24 Bit
    Maximum input12 dBu
    Signal-to-noise ratio106dB @12dBu, 1kHz
    Total harmonic distortion-79dB @12dBu, 1kHz, 20kHz LPF, A-wt -79dB @12dBu, 1kHz, 20kHz LPF, A-wt
    Frequency response20Hz-20kHz
    Noise floor22uVrms @20kHz LPF 22uVrms @20kHz LPF
    Channel isolation<-110dB @0dBu, 1kHz
    Common mode rejection ratio>57dB @ 0dBu, 1kHz
    System delay<1ms
    Balanced input impedance11.5kΩ
    Output impedance100Ω
    Operating temperature-20℃--80℃
    Donwload
    FT-NDB04P
