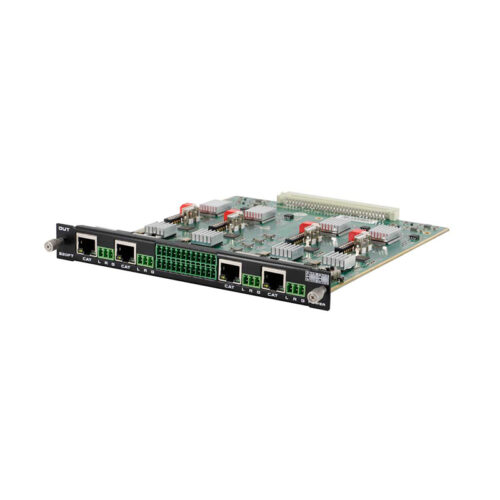

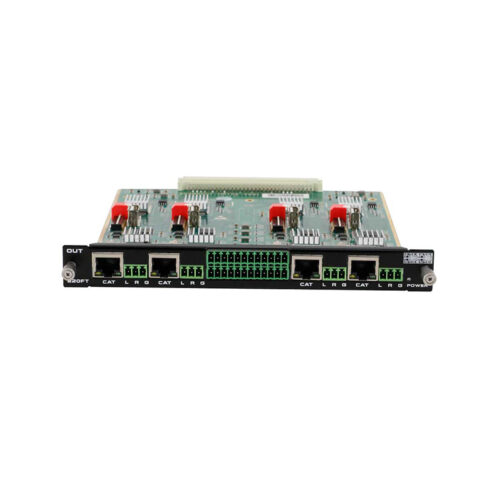

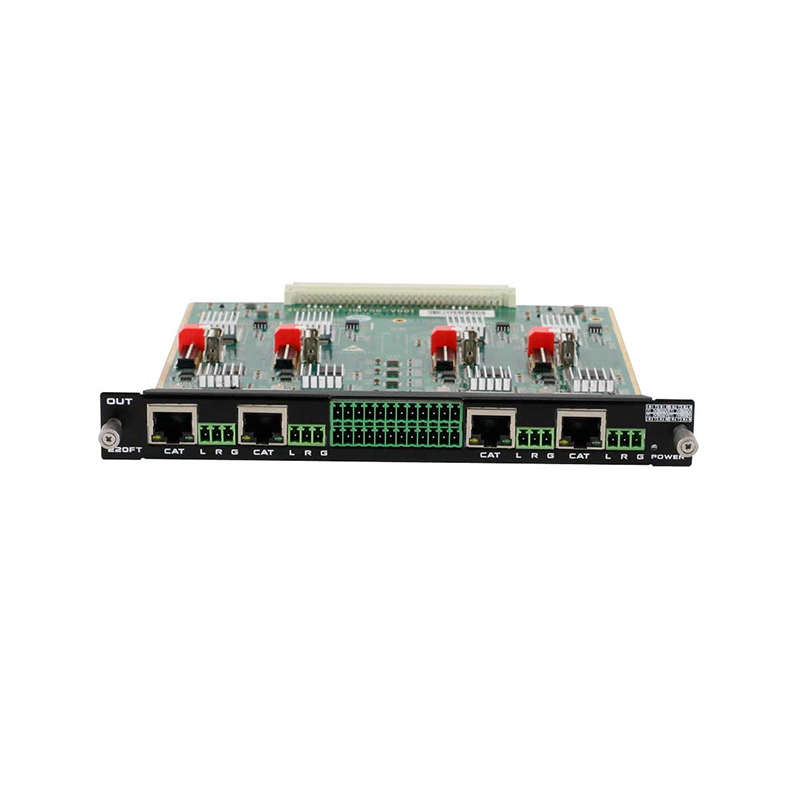

HDBT Output Board FT-4OBT40

The FT-4OBT40 is a 4K HDBT seamless output card with 4 RJ45, 4 bidirectional RS232, and 4 IR interfaces. It supports resolutions up to 4Kx2K at 30Hz, with a transmission distance of 40 meters for 4K and 70 meters for 1080p. Features include POC power supply, seamless switching, and resolution change capabilities.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Support 4-way 30RJ45 signal output
  • Support power-off on-site switching memory protection function, unique ESD static protection function
  • Support POC power supply function, the receiving end does not need power supply
  • Compatible with HDMI1 .4 and HDCP2.0 standards
  • Maximum resolution supports 4Kx2K@30Hz, 4k30 can be transmitted 40 meters, 1080P70 meters
  • Support hot plug, plug and play, extremely convenient.
  • Support seamless switching across resolutions, input 1080P/4K30 can achieve seamless switching
  • Support output resolution change
  • Support splicing function 10.FT-4OBT40 is a HDBT seamless output card with 4 RJ45, 4 232, 4 bidirectional IR interfaces, supporting 4K signals. Highly integrated board design, the number of boards can be selected as needed
    • Parameter
    ProtocolHDMI1.4 standard, HDCP2.0 protocol
    Gain0 dB
    Pixel bandwidth300MHz, all digital
    Interface bandwidth3.4Gbps, all digital (10.2Gbps in total, 3.4Gbps for each color)
    Maximum supported resolution4Kx2K@30Hz
    Bit clock jitter (Clock Jitter)<0.15 Tbit
    Bit rise time (Rise time)<0.3Tbit (20%--80%)
    Bit fall time (Fall time)<0.3Tbit (20%--80%)
    Maximum transmission delay5nS (±1nS)
    Interface4-way RJ45
    Signal strengthT.M.D.S.+/-0.4Vpp
    Minimum/maximum levelT.M.D.S.2.9V/3.3V
    Impedance50Ω
    EDIDSupport EDID management and learning
    Maximum DC bias error15mV
    Recommended maximum input/output distanceinput less than 20 meters, at 1080P resolution (it is recommended to use certified HDMI dedicated cables, such as Molex TM cables)
    Product weightabout 0.5KG
    Maximum power consumption5W
    Donwload
    FT-4OBT40
