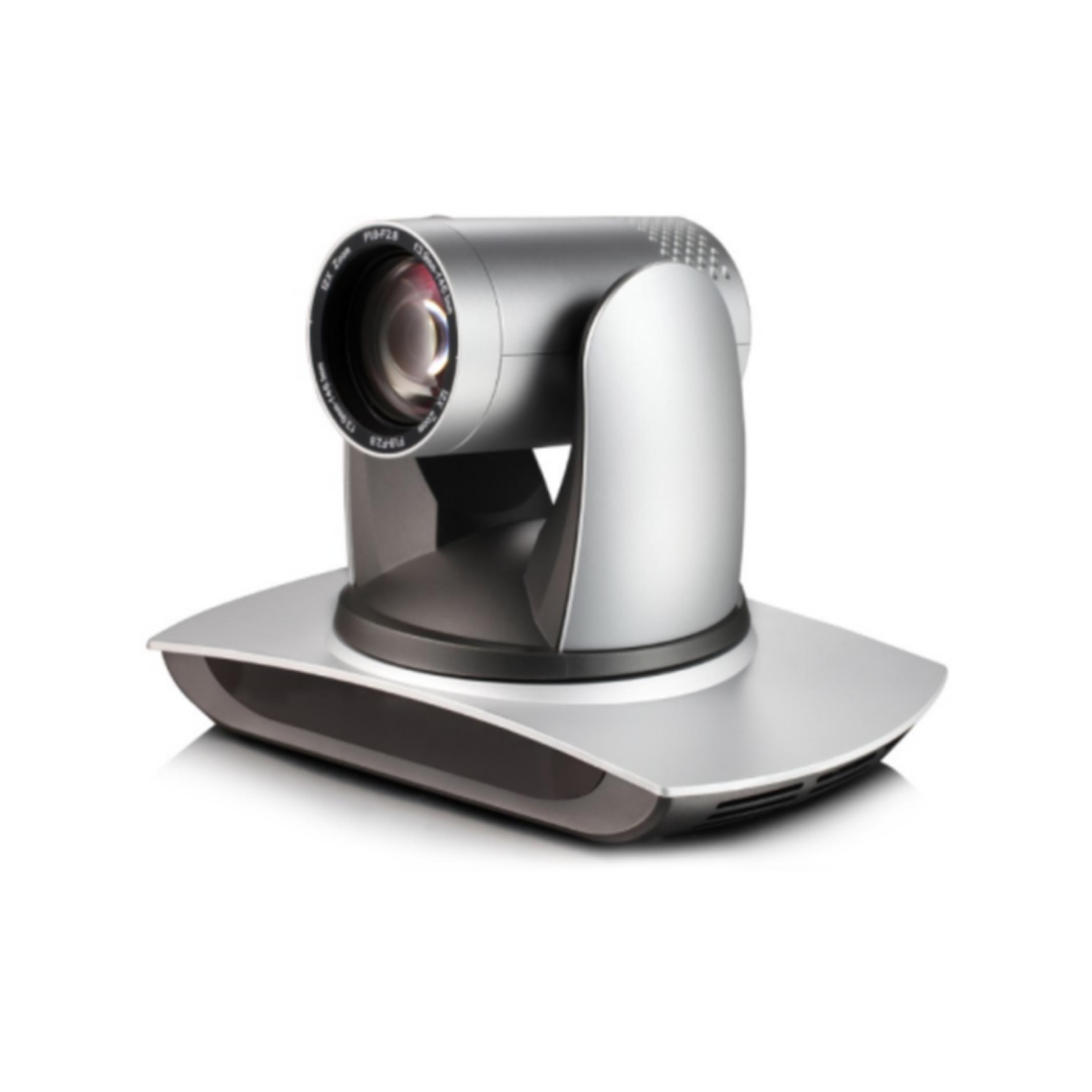

HD Camera FT-S20-HC

This Full HD camera features a 20x optical zoom and advanced autofocus for high-quality, stable images. It supports multiple interfaces (HDMI, SDI, USB, LAN) and compression standards (H.265, H.264), making it ideal for applications like conferencing, education, and telemedicine. Its silent PTZ control, 255 presets, and broad protocol compatibility ensure seamless integration.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Full HD image: using 1/2.8-inch 2.07 million pixel high-quality image sensor, the maximum resolution can reach 1920x1080, and the output frame rate is up to 60 frames/second
  • Optical zoom lens: 20X optical zoom lens
  • Leading autofocus technology: advanced autofocus algorithm enables the lens to complete autofocus quickly, accurately and stably
  • Low noise and high signal-to-noise ratio: low noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of the camera video. Using advanced 2D and 3D noise reduction technology, the noise is further reduced while ensuring image clarity
  • Multiple video output interfaces: support HDMI, SDI, USB, wired LAN (POE function optional.; SDI supports 100 meters transmission in 1080P60 format
  • Multiple audio and video compression standards: support H.265/H.264 video compression, support AAC, MP3, G.711A audio compression; support up to 1920x1080 resolution 60 frames/second compression
  • Audio input interface: support AAC, MP3, G.711A audio encoding, AAC, MP3 encoding support 16000, 32000, 44100, 48000 sampling frequencies, G.711A encoding only supports 8000 sampling frequencies
  • Multiple network protocols: support ONVIF, GB/T28181, RTSP, RTMP protocols; support RTMP push mode, easily connect to streaming media servers (Wowza, FMS.; support RTP multicast mode, support network full command VISCA control protocol
  • Control interface: RS485, RS232; RS232 supports cascading, which is convenient for engineering installation and use
  • Multiple control protocols: Support VISCA, PELCO-D, PELCO-P protocols, and support automatic identification protocols
  • Super silent PTZ: Adopt high-precision stepper motor and precision motor drive controller to ensure that the PTZ runs smoothly at low speed and without noise
  • Low-power sleep function: Support low-power sleep/wake-up, and the power consumption is less than 400mW when in sleep
  • Multiple preset positions: Support up to 255 preset positions (the remote control setting is 10.
  • Multiple remote controls: Users can choose infrared remote control or wireless remote control according to the environmental conditions used. 2.4G wireless remote control is not affected by angle, distance, and infrared interference. Support remote control signal transparent transmission function, which is convenient for back-end equipment to use
  • Many application places: distance education, teaching recording and broadcasting, conference system, remote training, telemedicine, trial system, emergency command system, etc
    • Parameter
    Image sensor1/2.8-inch high-quality CMOS sensor
    Effective pixels2.07 million, 16:9
    Video signalHDMI/SDI/
    Interface video format1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
    U2 interface video format320x240/352x288/640x360/640x480/704x576/704x480/720x576/800x448/800x600/960x540/1024x576/1024x768/1280x720/1920x1080P30/25/20/15/10/5
    Lens optical zoom20x optical zoom f＝5.05～101mm
    Viewing angle3.45° (narrow angle) 60.04° (wide angle)
    Aperture coefficientF1.8 – F2.9
    Digital zoomX10
    Minimum illumination0.5Lux (F1.8, AGC ON)
    Digital noise reduction2D﹠3D digital noise reduction
    White balanceAuto/Manual/One-click white balance/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
    FocusAuto/Manual/One-button focus
    ApertureAuto/Manual
    Electronic shutterAuto/Manual
    Backlight compensationOn/Off
    Dynamic rangeOff/Dynamic level adjustment
    Video adjustmentBrightness, contrast, sharpness, horizontal flip, vertical flip (displayed when auto flip is off), black and white mode, gamma curve, electronic zoom, DCI, lens distortion correction
    Signal-to-noise ratio>55dB
    Interface function performance
    Product interfaceHDMI, SDI, LAN (support POE), USB2.0, A-IN, RS232-IN,
    RS232-OUT,RS 485, rotary dial, DC12V power supply
    Video output interfaceHDMI, SDI, LAN, USB2.0
    Video compression formatLAN interface supports: H.264, H.265
    USB 2.0 interface supportsMJPG, H264, H.265, YUY2, NV12
    Audio input interfacedual-channel 3.5mm linear input
    Audio output interfaceHDMI, LAN, USB2.0
    Audio compression formatAAC, MP3, G.711A
    Network interface100M network port, POE power supply optional, support audio and video output
    Network protocolRTSP, RTMP, ONVIF, GB/T28181; support network VISCA control protocol
    Supportremote upgrade , remote restart, remote reset
    Control interfaceRS232-IN, RS232-OUT, RS485
    Serial communication protocolVISCA/Pelco-D/Pelco-P; support baud rate 115200/38400/9600/4800/2400
    USB communication protocolUVC (video communication protocol), UAC (audio communication protocol)
    Power interfaceHEC3800 power socket (DC12V)
    Power adapterinput AC110V~AC220V ; Output DC12V/1.5A
    Input voltageDC12V±10%
    Input current<1A
    Power consumption of the whole machine<12W
    PTZ parameters
    Horizontal rotation -170°～+170°
    Pitch rotation-30°～+90°
    Horizontal control speed0.1°/s～100°/s
    Pitch control speed0.1°/s～30°/s
    Preset speedhorizontal: 60°/s, pitch: 30°/s
    Number of preset positionsUsers can set up to 255 preset positions (10 for remote control)
    Other parameters
    Storage temperature-10℃～+60℃
    Storage humidity20%～95%
    Operating temperature -10℃～+50℃
    Operating humidity 20%～80%
    Dimensions258 (length) mm×172 mm (width)×169 mm (height)
    Weight (approx.)about 1.54 kg
    Usage environmentindoor
    Donwload
    FT-S20-HC
