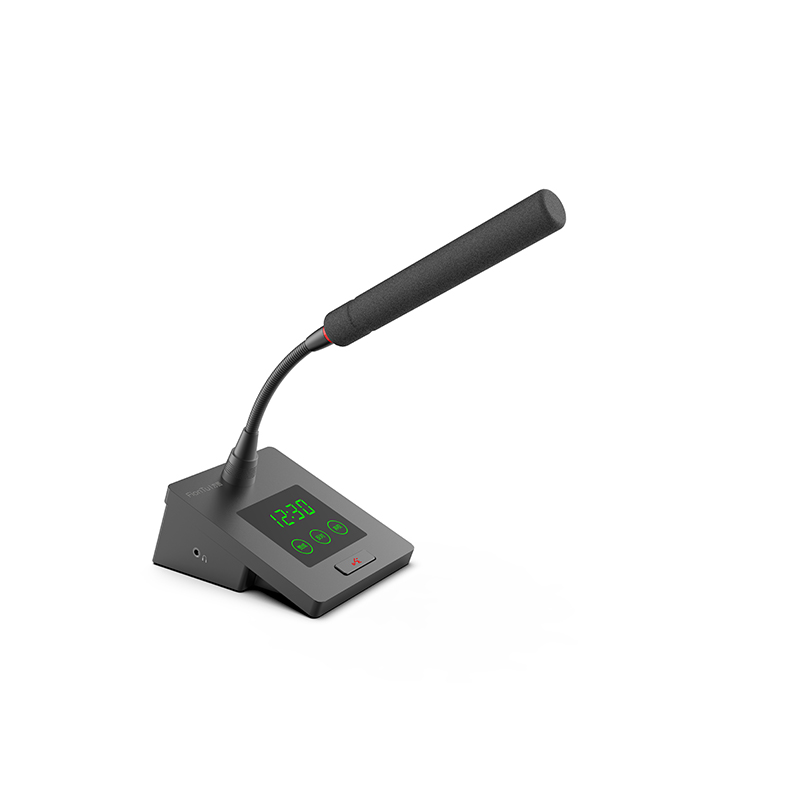

Gooseneck conference unit E80 PRO

This microphone features acoustic interference design, built with a zinc alloy body for stability and shock resistance, and includes a high-performance CPU for better sound quality. It offers key sign-in, voting functions, and a clock display, with customizable chairman unit settings and automatic camera tracking. The microphone is equipped with a super-directional microphone and LED indicator for a professional, sleek design.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Designed based on the principle of acoustic interference
  • Made of zinc alloy die-casting, it has good stability and shock resistance. The bottom is equipped with shockproof pads to effectively prevent noise caused by desktop vibration
  • One-button switch on and off the microphone, convenient and atmospheric, very suitable for use in lectures, teaching, meetings, reports and other occasions
  • Built-in high-performance CPU, faster processing speed and better sound quality
  • With key sign-in, voting and other voting functions
  • With clock display function
  • Customized chairman machine configuration function, any unit can be temporarily defined as the chairman unit according to the needs of the site, and there is no limit on the number of chairman units
  • With video switcher and camera, after using computer preset, the camera automatic tracking function can be realized
  • The shockproof microphone is coated with low-reflection and frosted Qiang color layer, and is equipped with a XLR female seat as the microphone insertion end. The back is a FionTu conference six-core dedicated connection cable, which serves as the microphone signal output end and communication channel. The sockets at both ends are nickel-plated for power connection
  • The microphone has a simple and elegant appearance design, and the microphone boom pickup end is decorated with an LED indicator light, making the microphone show a simple and solemn conference equipment style
    • Parameter
    Output frequency response20-20KHz
    Signal-to-noise ratio>78 dB
    Working voltage24V DC
    Total harmonic distortion≤ 0.05%
    Maximum power consumption2W
    Shell materialZinc/aluminum alloy
    Weight0.89kg
    ColorBase: dark blue ；Microphone boom: black
    Connection methodFionTu conference six-core dedicated connection cable
    Dimensions (length * width * height mm)Base: 138*98*54 Microphone boom: φ21.5*294 (without windshield)
    Microphone parameters
    Standard spare partsSponge windshield
    Directional characteristicsSuper directional
    Mic rod4-pin XLR female head Mic rod(with LED indicator)
    Sensitivity-33 dB
    Frequency response20-20KHz
    Output impedance680Ω
    Connection socket between microphone and baseM16 aviation female core-4Ppin*1 M16 aviation male core-4Ppin*1
    Donwload
    E80 PRO
