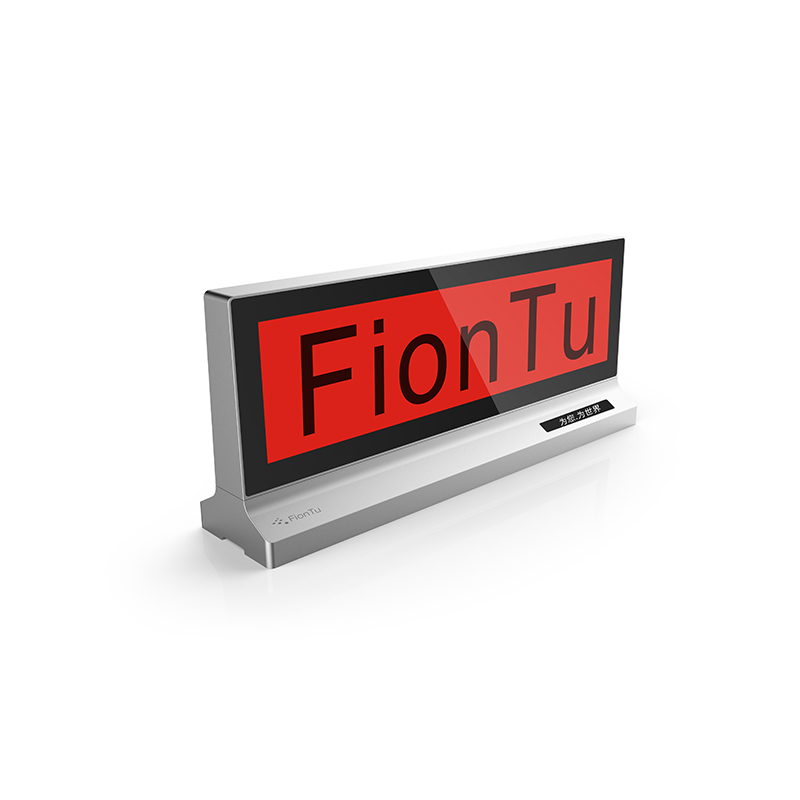

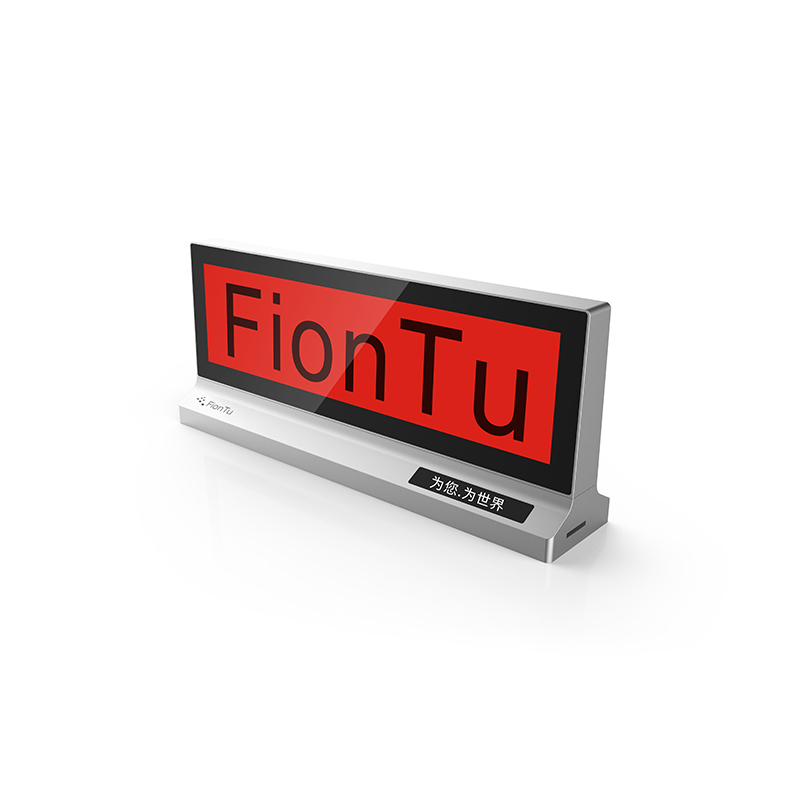

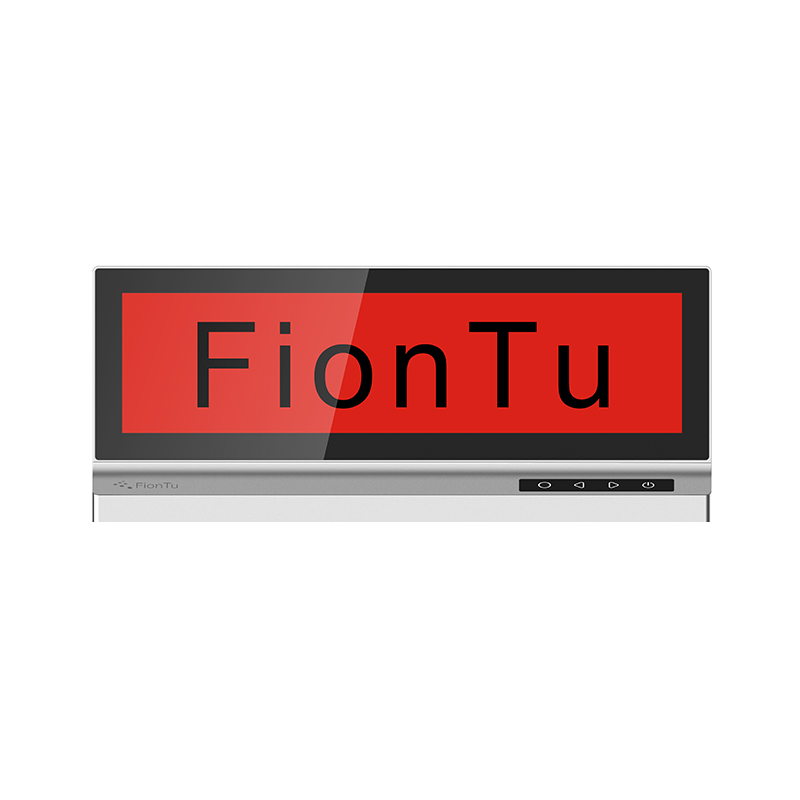

Dual-screen electronic table sign FT-N1D

The 8.8-inch double-sided screen display features an ultra-bright LCD TFT true color panel with a 1280x320 resolution, allowing for clear and vibrant text and images. With its elegant aluminum alloy design, this device supports power over Ethernet (POE) and enables easy content updates directly from a PC without the need for a TF card. Its user-friendly features and robust construction make it ideal for dynamic signage and information display in various environments.
Categories:
Get Quote
Category
Description
  1. This device adopts a dual-screen paperless smart desktop design, with an auxiliary screen on the back, and a seamless, back-free connection, highlighting the high-end atmosphere of the product. With a paperless conference terminal, it can display the patterns required for the meeting and the names of the meeting guests, perfectly realizing the interactive paperless and powerful conference functions
  2. The equipment adopts an all-aluminum structure, high-quality aluminum materials plus CNC precision carving processing, the display frame and chassis are aluminum alloy, making the overall equipment exquisite, light, beautiful and atmospheric. The surface treatment of the equipment is anodized, and the color is bright
  3. Digital transmission link, the conference unit adapter is powered, connected to the switch and the conference host level through a network cable, non-compressed audio transmission technology, 48K sampling rate, 80Hz-16KHz bandwidth perfect sound quality
  4. The unit has a 5-band EQ adjustment function, which can adjust different sound effects according to the speaker's voice characteristics until the perfect effect is achieved
  5. The unit supports PC software microphone control and voice control function
  6. The unit has feedback suppression function inside, voice control function, and adjustable voice control sensitivity
  7. The unit has speech timing and timed speech functions, and the representative machine has the function of applying for speech
  8. Supports HDMI and VGA two-way signal input. When only one signal is input, the screen will automatically identify the signal. When two signals are input at the same time, they can be manually switched through the panel buttons. When there is no signal input, the screen automatically enters power saving mode
  9. The panel has a USB interface, and files can be browsed or uploaded by connecting a USB flash drive
  10. Supports paperless conference mode and ordinary computer mode, which can be switched at will
  11. Supports sign-in function, and can also prohibit unit sign-in, control unit sign-in and other functions through PC software
  12. Supports signal management authority, can control the same-screen broadcast of any participant, and supports group same-screen broadcast
  13. Supports adding account password login function, can automatically log in to the default meeting, and can choose to participate in the desired meeting
  14. The terminal has strong confidentiality performance, and automatically clears local meeting files when the meeting ends
  15. The chairman unit has priority authority to close the representative unit speech
Parameter

Main screensupport touch
ProcessorI5-4th generation
MemoryDDR44G (customizable)
Hard disk128G solid state hard disk (customizable)
Power requirementsvoltage AC220V±10%50HZ
Elevation angle0°-40°
Product materialaluminum alloy Size: 420*218*191MM (excluding the length of the gooseneck)
Environmental conditions-20℃～50℃ humidity ≤70%
Main screen size15.6 inches
Main screen ratio16:9
Main screen Resolution1920*1080P
Main screen contrast500:1
Main screen brightness220
Viewing angle45/45/20/40 (Typ.) (CR≥10)
Signal systemEDP
Maximum power30W
Secondary screen size10.1 inches
Secondary screendoes not support touch
Secondary screen resolution1280*800
Secondary screen contrast600:1
Secondary screen brightness330
Secondary screen working environmentWorking temperature:0~50℃；Storage temperature:-20~60℃
Secondary screen viewing angle89/89/89/89 (Typ.) (CR≥10)
Secondary screen signal systemLVDS
Display size154.2144×85.92
Microphone parameters
Pickup microphone9.7mm diameter Dujin anti-shielding capacitor microphone
Microphone rod4-pin XLR female microphone rod (with LED indicator)
Frequency response100-lOOOOHz
Maximum sound pressure level115dB (THD<3%)
Directional characteristicssupercardioid
Sensitivity-32dB
Input impedance2.2KO
Power consumption85W/including computer
