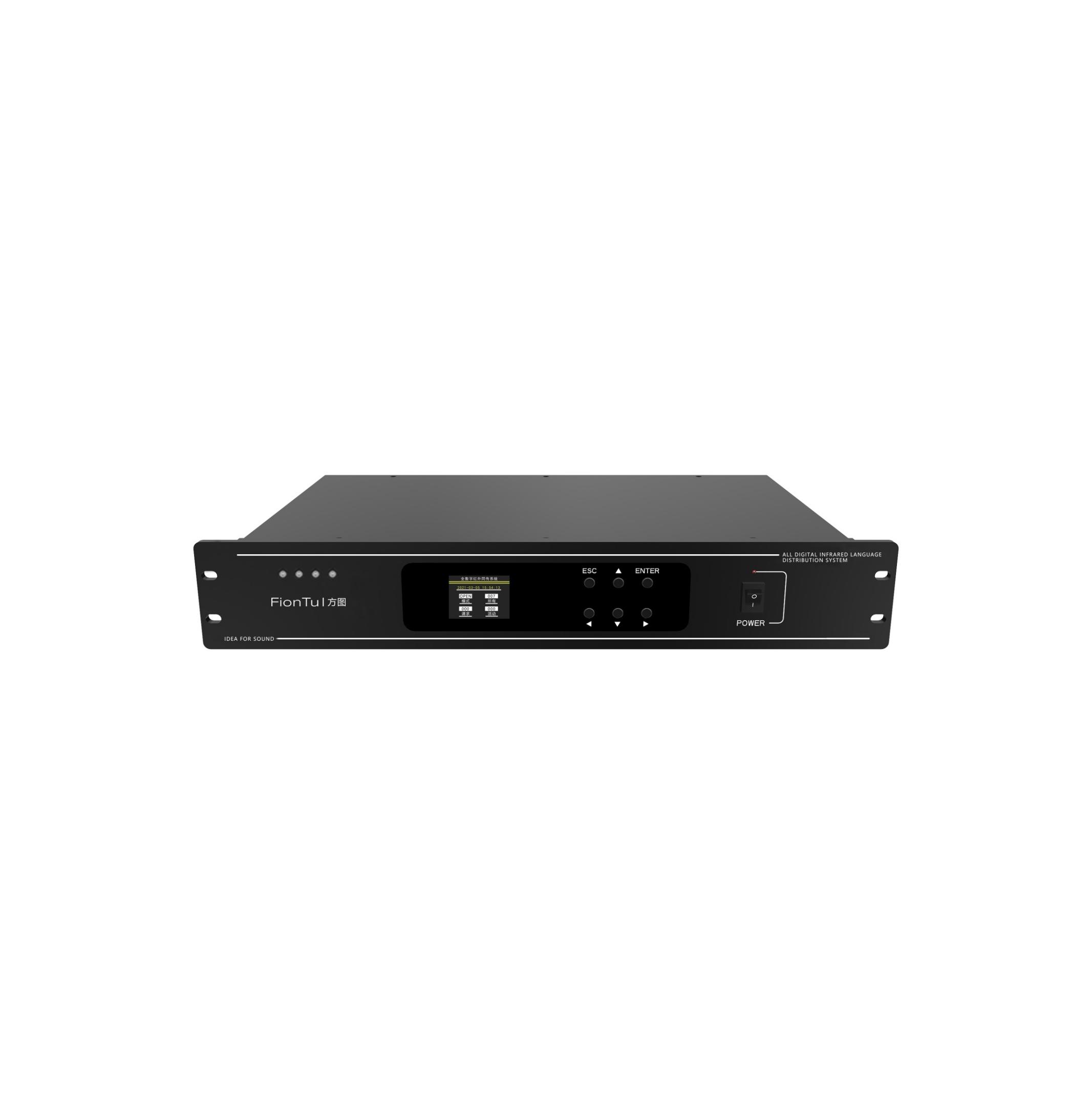

Digital infrared transmitter host FT-A-TSC8

This fully digital infrared simultaneous interpretation system supports 8 audio channels and complies with both international and national standards. It ensures superior sound quality with enhanced anti-interference and privacy features, and it is compatible with other IEC 61603-7 compliant systems. The system allows easy setup with expanded coverage and effective signal transmission, even in challenging environments.
Description
Parameter
 Modulation frequencycarrier 0 to 5: 2 MHz to 6 MHz, carrier 6 and 7: up to 8 MHz
 Protocol and modulationDQPSK
 Audio frequency response20 Hz to 10 kHz (-3 dB) (standard quality)
 Total harmonic distortion at 1 kHz<0.05%
 Crosstalk attenuation at 1 kHz> 80 dB
 Dynamic range> 80 dB
 Weighted signal-to-noise ratio> 80 dB(A)
 Power consumption100 W
 Unbalanced audio inputRated +3 dBV, maximum +6 dBV (± 6 dB)
 HF output1 Vpp, 6 VDC, 50 ohms
 Interpreter desk interface6P-DIN

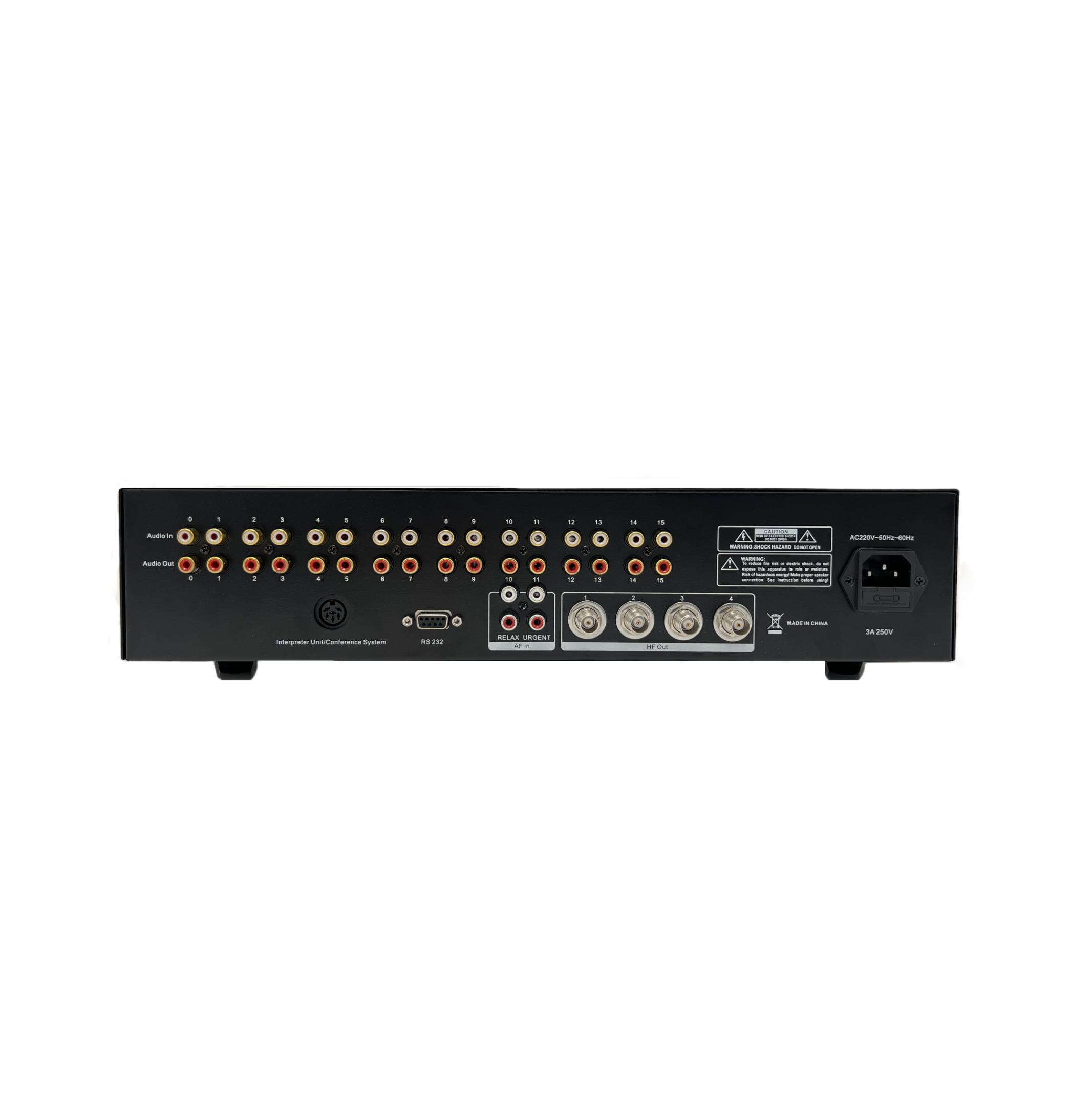

 Audio input RCA unbalanced × 8
 Audio outputRCA unbalanced × 8
 RF outputRF output BNC plug × 4
