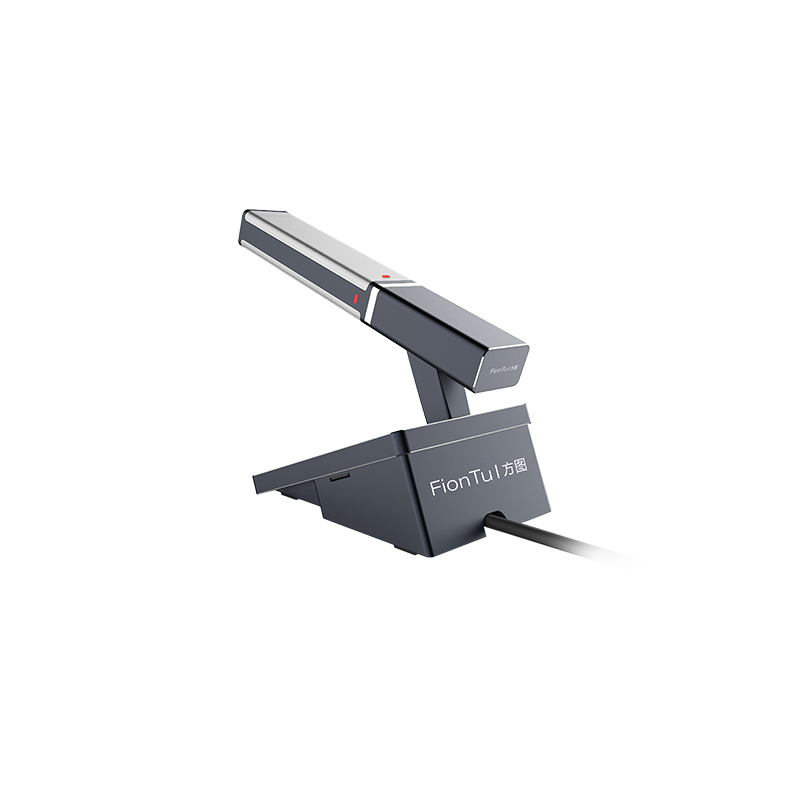

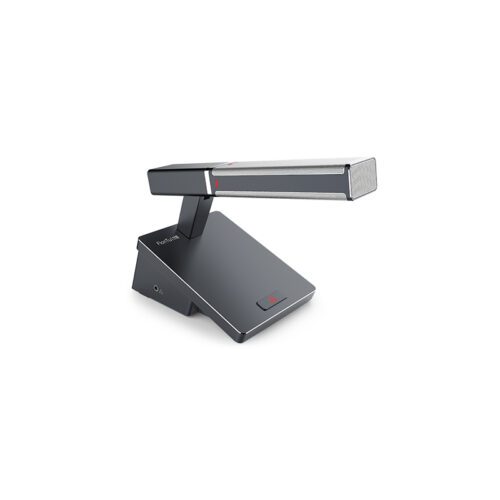

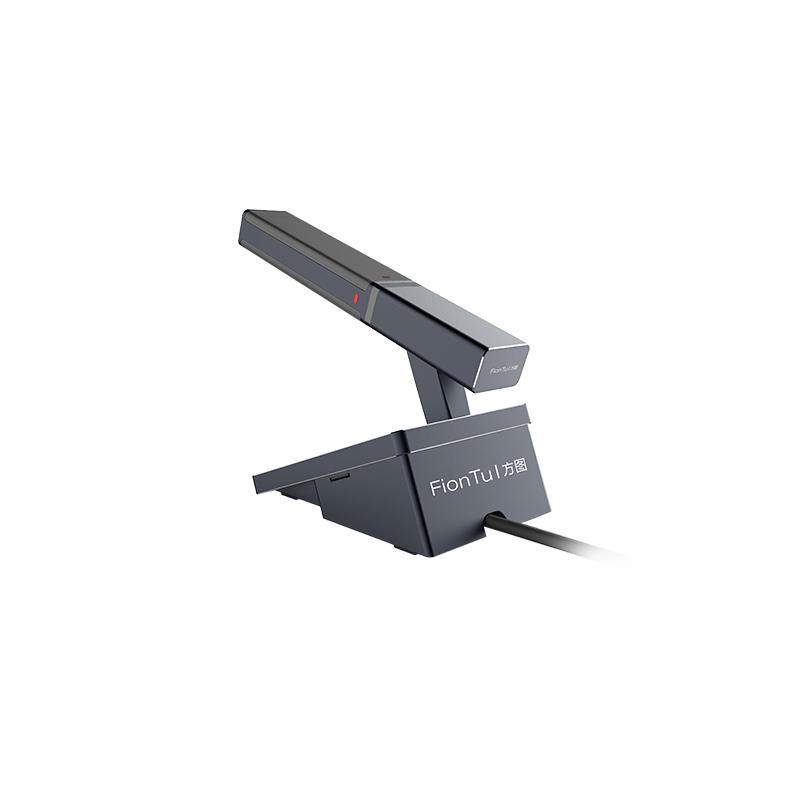

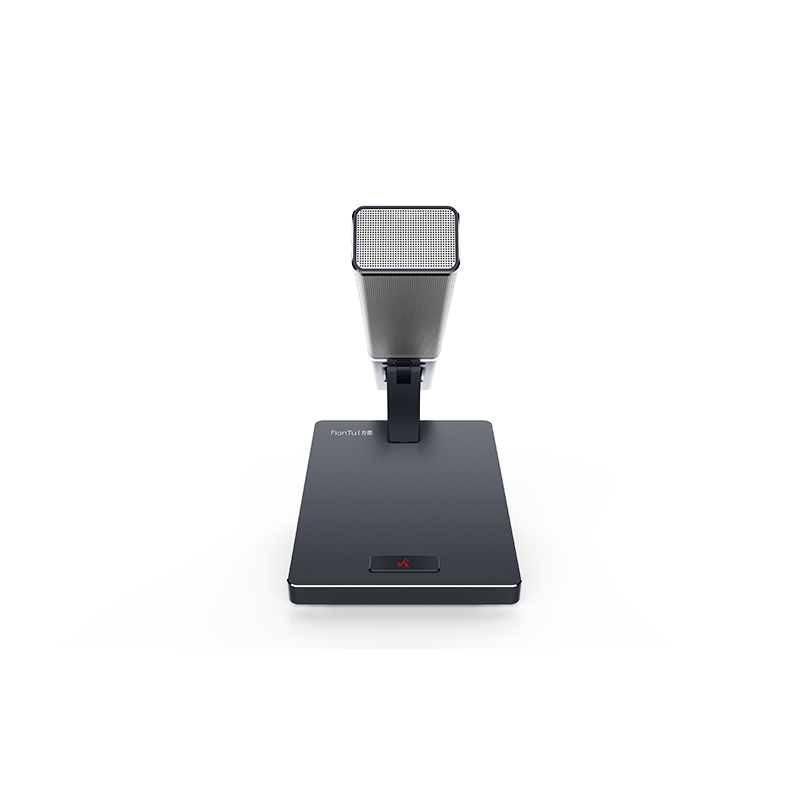

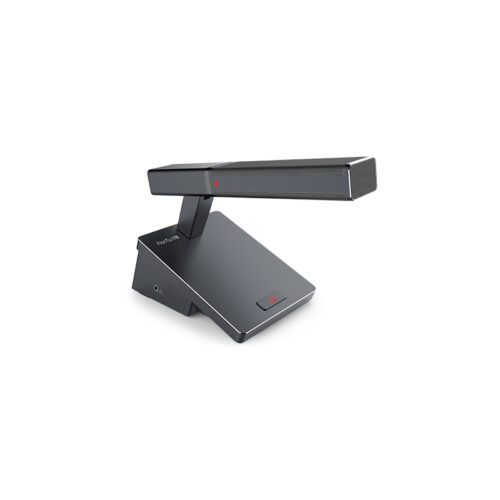

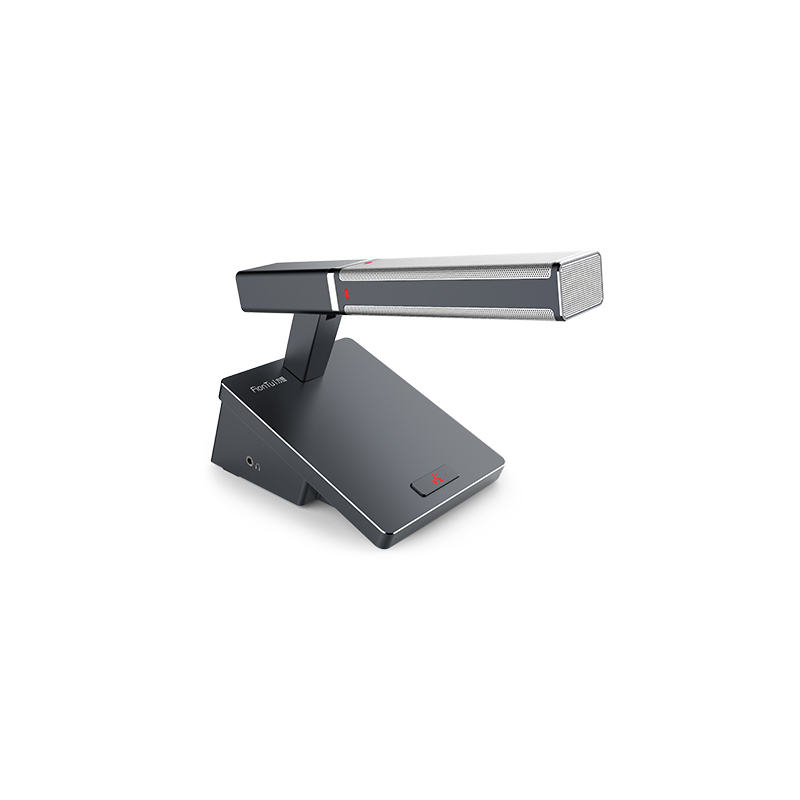

Digital Conference Unit G20 E

This high-fidelity conference microphone features a gold-plated condenser capsule with supercardioid directionality for precise sound collection, offering superior sound quality. It has a customizable chairman unit configuration, supports automatic camera tracking with video switchers, and includes features like hot plugging and system repair for seamless integration. Its zinc/aluminum alloy construction ensures durability and a sleek, professional appearance.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Top-grade gold film high-fidelity microphone capsule, super directional sound collection effect, better sound quality
  • Built-in high-performance CPU, faster processing speed, better sound quality
  • Effective sound collection angle of 100° can prevent interference from adjacent microphones and suppress howling
  • With video switcher and camera, after using computer preset, the camera automatic tracking function can be realized
  • Customized chairman unit configuration function, any unit can be temporarily defined as chairman unit according to on-site needs, and there is no limit on the number of chairman units
  • The system has automatic repair function and supports hot plugging of lines
  • The microphone can be adjusted from -50° to 45° (horizontal)
  • Made of zinc/aluminum alloy, anodized process, CNC precision processing high-gloss edge, novel appearance, mainly used in high-end conferences and other professional occasions
    • Parameter
    Output frequency response40Hz-16KHz
    Signal-to-noise ratio>74 dB
    Dynamic range>108 dB(1 KHz)
    Total harmonic distortion <0.05%
    Maximum power consumption1.5W
    Phantom power48V DC
    Headphone volume10mW
    Headphone load>16 Ω
    Headphone output interface Ø 3.5 mm stereo jack
    Shell materialZinc/aluminum alloy
    Connection methodFionTu conference six-core dedicated connection cable
    Weight0.9kg
    Colordark blue
    Dimensions (mm) length*width*heightMicrophone rod:200*34.5*23, base:138*98*54
    Microphone parameters
    Pickup microphone14mm diameter gold-plated condenser microphone
    Directional characteristicsSupercardioid
    Sensitivity-28 dB
    Frequency response30Hz-18KHz
    Input impedance 2.2KΩ
    Maximum sound pressure level130 dB (THD<3%)
    Equivalent noise25 dB-A
    Donwload
    G20 E
