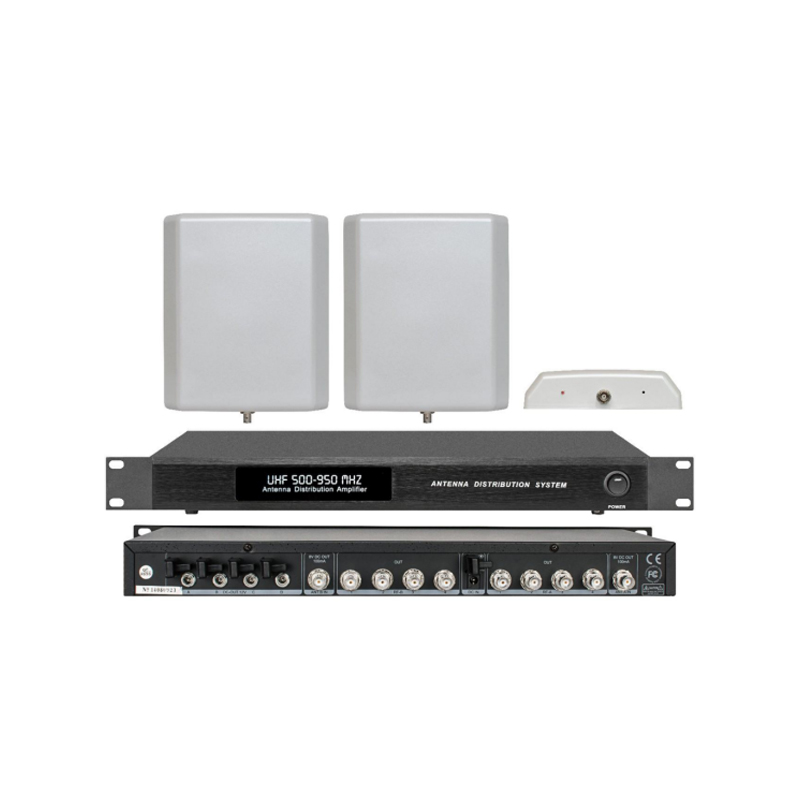

Description
- Provides a multi-channel system using 2~4 UHF wireless series or other series of various automatic selection receivers, sharing a pair of antennas,
- Adopts the latest design of high dynamic components and active feedback current bias, with ultra-low internal distortion characteristics,
- Can be used simultaneously in multiple channels to eliminate mixing interference, and its output gain is approximately equal to 1
- The antenna input socket can directly configure various single-pole antennas, coaxial antennas, extended antenna groups and logarithmic directional antenna groups within the applicable frequency band
- The antenna input socket has a power supply for the booster
- Can directly connect the extended antenna group with antenna booster and the logarithmic directional antenna group with built-in booster
- Four sets of power output:12V/600~1000mA
Parameter
| Frequency range | 500-900MHz |
| Input cutoff point | +22dBm |
| Noise ratio | 4.0dB Type (Center Band) |
| Gain | +6-9dB (Center Band) |
| Output impedance | 15dB min |
| Impedance | 50Ω |
| Bandwidth | 300MHz |
| Socket | TNC female |
| Power supply | 100-240V/50/60Hz |
| Power consumption | 170mA |
| Directivity | 180 degrees |
