Description

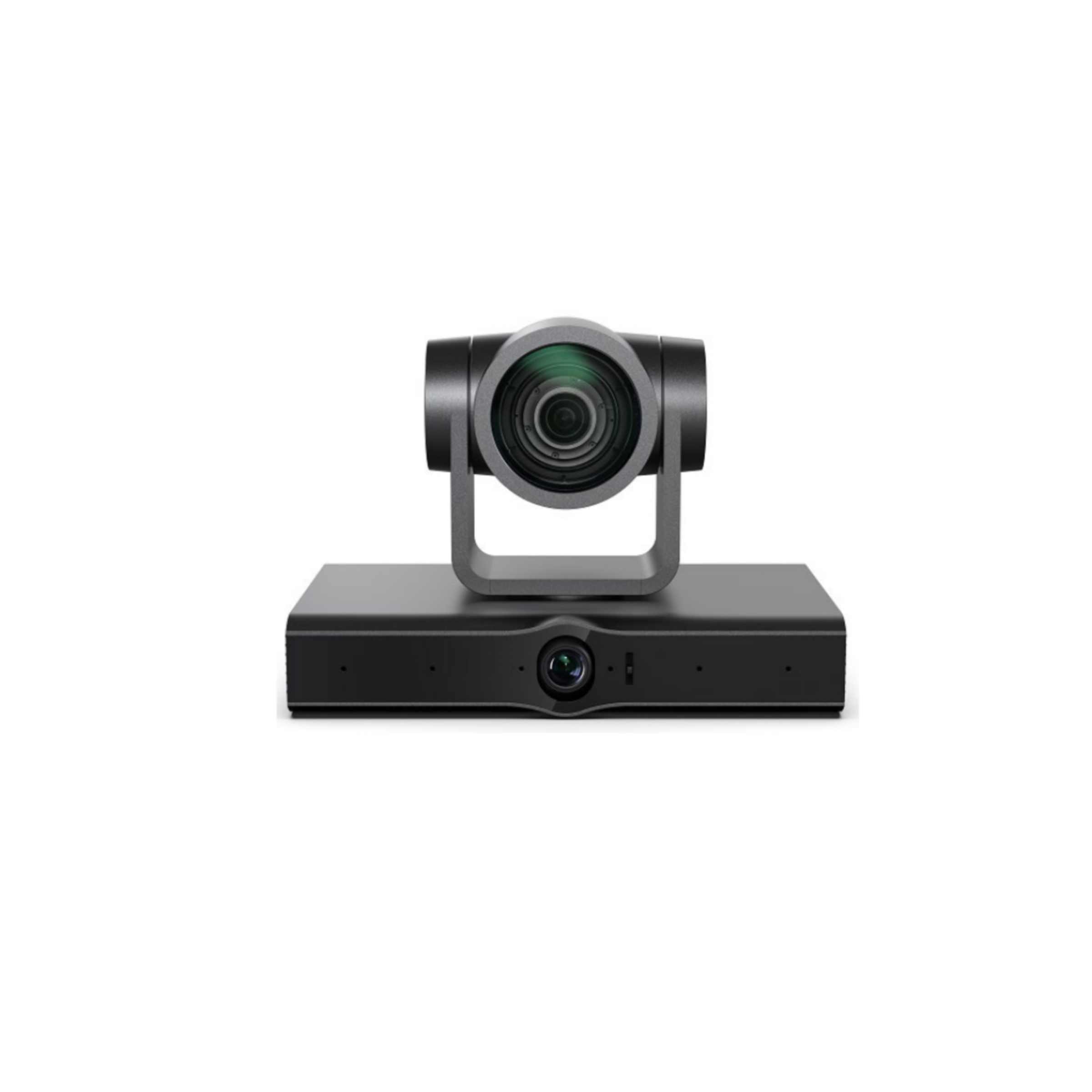

- Integrated Design: Built-in panoramic camera integrates the panoramic camera and tracking camera into one unit, providing a compact and integrated solution.
- Adjustable Panoramic Lens Angle: The panoramic camera lens angle can be adjusted by ±15°, greatly facilitating installation and commissioning.
- 4K Ultra-HD Imaging: Equipped with an 8.42-megapixel high-quality SONY CMOS image sensor, supporting up to 4K (3840×2160) resolution and up to 30 fps at 4K output, delivering clear and lifelike video images.
- Optical Zoom Lens: 12× optical zoom lens with an 80° horizontal field of view.
- Advanced Autofocus: Advanced autofocus algorithms enable fast, accurate, and stable focusing.
- Low Noise and High SNR: Low-noise CMOS sensor combined with advanced 2D and 3D digital noise reduction provides high signal-to-noise ratio and clear images.
- Multiple Video Interfaces: Supports HDMI, USB 3.0, SDI, and wired LAN interfaces. Supports PoE+ power supply, with USB 3.0 supporting dual-stream output.
- Multiple Video Compression Formats: Supports YUY2, MJPEG, H.264, H.265, and NV12 formats. MJPEG, H.264, and H.265 support compression up to 3840×2160 at 30 fps.
- Audio Input: Supports AAC audio encoding with a 48 kHz sampling rate.
- Built-in Gravity Sensor: Supports automatic PTZ flipping, facilitating flexible installation.
- Multiple Network Protocols: Supports ONVIF, GB/T28181, RTSP, RTMP, VISCA over IP, IP VISCA, RTMPS, and SRT protocols; supports RTMP streaming and RTP multicast.
- Multiple Control Protocols: Supports VISCA, PELCO-D, and PELCO-P protocols with automatic protocol recognition.
- Ultra-Quiet PTZ: Uses high-precision stepper motors and precision motor drivers to ensure smooth and quiet PTZ movement even at low speeds.
- Multiple Presets: Supports up to 255 preset positions, with up to 10 presets available via remote control.
- Multiple AI Tracking Modes: Supports Real-Time Tracking, Stage Tracking, Zone Tracking, and Smart Framing. Built-in ReID technology accurately identifies and tracks the target based on body shape, appearance, clothing, and other characteristics.
- Smart Framing: Built-in high-performance processor and face detection algorithm automatically detect participants and provide optimized framing.
- Intelligent Voice Localization & Tracking: Built-in 6-element omnidirectional microphone array and intelligent sound-source localization algorithm enable real-time speaker positioning and tracking.
- Wide Range of Applications: Suitable for distance education, lecture recording, conference systems, remote training, telemedicine, court systems, emergency command systems, and other applications.
Parameter
| 1. Camera & Imaging Parameters | |
| Item | Specification |
| Image Sensor | 1/2.8" High-Quality CMOS Sensor |
| Effective Pixels | 8.42 Megapixels, 16:9 |
| Maximum Resolution | 4K (3840 × 2160) |
| Maximum Frame Rate | 30 fps |
| Digital Noise Reduction | 2D & 3D Digital Noise Reduction |
| Signal-to-Noise Ratio | >50 dB |
| White Balance | Auto / Manual / One-Push / Specified Color Temperature |
| Focus Mode | Auto / Manual / One-Push Focus |
| Exposure Mode | Auto / Manual / Shutter Priority / Aperture Priority / Brightness Priority |
| Aperture | Auto / Manual |
| Shutter Speed | 1/25–1/10000 s |
| Backlight Compensation | On / Off |
| Dynamic Range | Off / Level 1–8 |
| Video Adjustment | Brightness / Hue / Saturation / Contrast / Sharpness / Gamma Curve |
| 2. Video Signal & Resolution | |
| Interface / Stream | Video Format & Resolution |
| Network Stream – Tracking Camera | H.264/H.265: 3840×2160 / 2592×1944 / 2304×1296 / 1920×1080 / 1280×720 @ 30/25/20/15/10/5 fps |
| Network Stream – Panoramic Camera | H.264/H.265: 1920×1080 / 1280×720 @ 30/25/20/15/10/5 fps |
| USB 3.0 – Tracking Camera | YUY2/NV12: 1920×1080 / 1280×720 / 1024×576 / 800×600 / 800×448 / 640×480 / 640×360 / 480×270 / 320×180 @ 30/25/20/15/10/5 fps |
| USB 3.0 – Tracking Camera | H.264/H.265/MJPEG: 3840×2160 / 1920×1080 / 1600×896 / 1280×720 / 1024×576 / 960×540 / 800×600 / 800×448 / 720×576 / 720×480 / 640×480 / 640×360 / 480×270 / 352×288 / 320×240 @ 30/25/20/15/10/5 fps |
| USB 3.0 – Panoramic Camera | YUY2/NV12: 1920×1080 / 1280×720 / 1024×576 / 800×600 / 800×448 / 640×480 / 640×360 / 480×270 / 320×180 @ 30/25/20/15/10/5 fps |
| USB 3.0 – Panoramic Camera | H.264/H.265/MJPEG: 1920×1080 / 1600×896 / 1280×720 / 1024×576 / 960×540 / 800×600 / 800×448 / 720×576 / 720×480 / 640×480 / 640×360 / 480×270 / 352×288 / 320×240 @ 30/25/20/15/10/5 fps |
| HDMI Output | Tracking/Panoramic: 3840×2160 / 1920×1080 @ 30/25 fps; 1280×720 @ 60/59.94/50 fps |
| SDI Output | Tracking/Panoramic: 1920×1080 @ 30/25 fps; 1280×720 @ 60/59.94/50 fps |
| 3. Tracking Camera Lens Parameters | |
| Item | Specification |
| Optical Zoom | 12× |
| Horizontal Field of View | 8° (Tele) – 80° (Wide) |
| Aperture | F1.8–F2.68 |
| Focal Length | 3.5 mm (Wide) – 42 mm (Tele) |
| Minimum Illumination | 0.5 Lux (F1.8, AGC ON) |
| Digital Noise Reduction | 2D & 3D Digital Noise Reduction |
| Focus | Auto / Manual / One-Push |
| Exposure | Auto / Manual / Shutter Priority / Aperture Priority / Brightness Priority |
| 4. Panoramic Camera Parameters | |
| Item | Specification |
| Image Sensor | 1/2.8" High-Quality CMOS Sensor |
| Effective Pixels | 8.42 Megapixels, 16:9 |
| Lens Type | Fixed-Focus Lens |
| Horizontal Field of View | 110° |
| Aperture | F2.2 |
| Focal Length | f = 2.03 mm |
| Lens Angle Adjustment | ±15° |
| 5. Interface & Connectivity | |
| Item | Specification |
| Interfaces | HDMI, SDI, LAN (PoE+), USB 3.0, LINE-IN, RS485/RS232 |
| Video Output Interfaces | HDMI, SDI, LAN, USB 3.0 |
| LAN Video Compression | H.264, H.265 |
| USB 3.0 Video Formats | YUY2, NV12 |
| Audio Input | Dual-Channel 3.5 mm Line Input |
| Audio Output | HDMI, SDI, LAN, USB 3.0 |
| Audio Compression | AAC |
| Network Interface | 10/100/1000 Mbps Adaptive Ethernet, PoE+, Audio & Video Output |
| Network Protocols | RTSP, RTMP, ONVIF, GB/T28181, VISCA over IP, IP VISCA, RTMPS, SRT |
| Remote Functions | Remote Upgrade / Remote Restart / Remote Reset |
| Control Interfaces | RS232, RS485, LAN |
| Control Protocols | VISCA / PELCO-D / PELCO-P |
| Baud Rate | 115200 / 38400 / 9600 / 4800 / 2400 bps |
| USB Communication Protocols | UVC (Video Communication) / UAC (Audio Communication) |
| Power Connector | HEC3800 DC Power Socket |
| Power Adapter Input | AC 110–220V |
| Power Adapter Output | DC 12V / 2.5A |
| Input Voltage | DC 12V ±10% |
| Input Current | 2A (Max.) |
| Power Consumption | 24W (Max.) |
| Dimensions | 219 × 136.6 × 155.4 mm |
| Weight | Approx. 1.58 kg |
| 6. PTZ Parameters | |
| Item | Specification |
| Pan Range | -170° to +170° |
| Tilt Range | -30° to +90° |
| Pan Speed | 0.1–60°/s |
| Tilt Speed | 0.1–45°/s |
| Preset Speed | Pan: 60°/s; Tilt: 45°/s |
| Preset Positions | Up to 255 user-configurable presets; 10 presets via remote control |
| Gravity Sensor | Built-in, supports automatic PTZ flipping |
| PTZ Drive | High-precision stepper motor |
| 7. Environmental Parameters | |
| Item | Specification |
| Storage Temperature | -10°C to +70°C |
| Storage Humidity | 20%–95% RH |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 20%–80% RH |
| Installation Environment | Indoor |
| Weight | Approx. 1.58 kg |
| 8. AI Function Parameters | |
| AI Function | Specification |
| Real-Time Tracking | Supports continuous single-person tracking. Tracking target size can be configured for close-up, half-body, full-body, and other framing modes. The tracking target can be selected through the WEB preview interface. |
| Stage Tracking | A predefined stage area can be configured. When a person enters the designated area, the camera automatically tracks the person and keeps the target centered in the frame. |
| Zone Tracking | Allows one or more specific tracking zones to be manually defined within the panoramic view. When a person enters the designated zone, the tracking camera locks onto the corresponding preset position. When the person leaves the zone, the system automatically switches to real-time tracking. |
| Smart Framing | Built-in high-performance processor and face detection algorithm automatically detect participants and provide optimized framing. Maximum framing distance: 6–7 m. |
| Intelligent Voice Localization & Tracking | Built-in 6-element omnidirectional microphone array and intelligent sound-source localization algorithm enable real-time speaker positioning. Voice tracking can be enabled/disabled. Maximum pickup distance: 6–7 m. |
