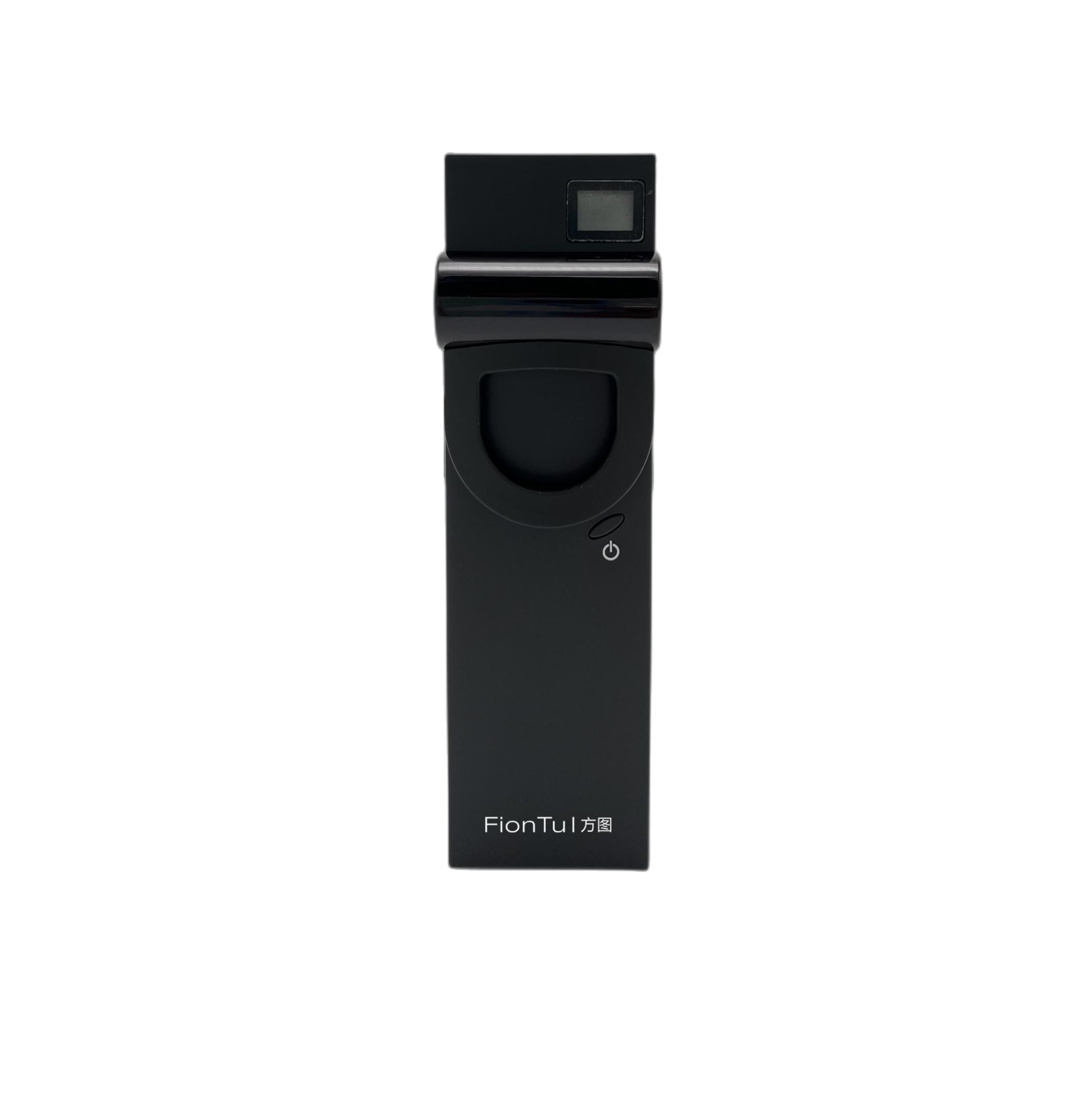

4-channel receiving unit FT-A-TR4

This infrared receiver supports up to 4 channels, offers ergonomic design, and ensures high-quality digital signal transmission with low noise and wide dynamic range. It features a 270° sensitivity angle, user-friendly controls, and a long battery life of over 30 hours. The device is compatible with other infrared systems and has automatic shutdown when idle.
Categories:
Get Quote
Category Tags , , , ,
Description
Parameter
 Sensitivity angle270
 Headphone output volume at 2.4V450mVrms
 Headphone output frequency response20Hz ~ 20kHz
 Headphone output impedance32 ohms
 Maximum signal-to-noise ratio>80dBA
 Power supply voltage1.8V – 3.6V, nominal 2.4V
 Battery working timemore than 30 hours
 Dimensions (mm)155×44×19
 Weight135g (including battery)
Donwload
FT-A-TR4
