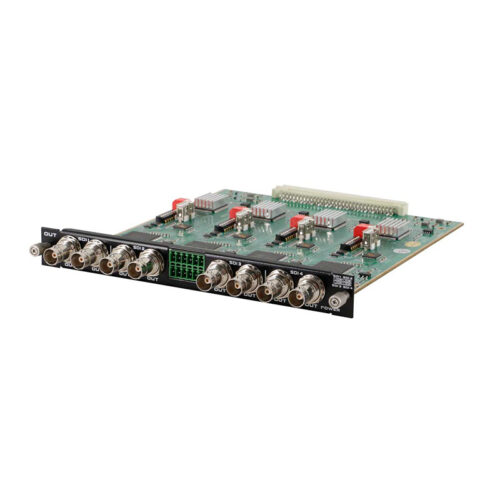

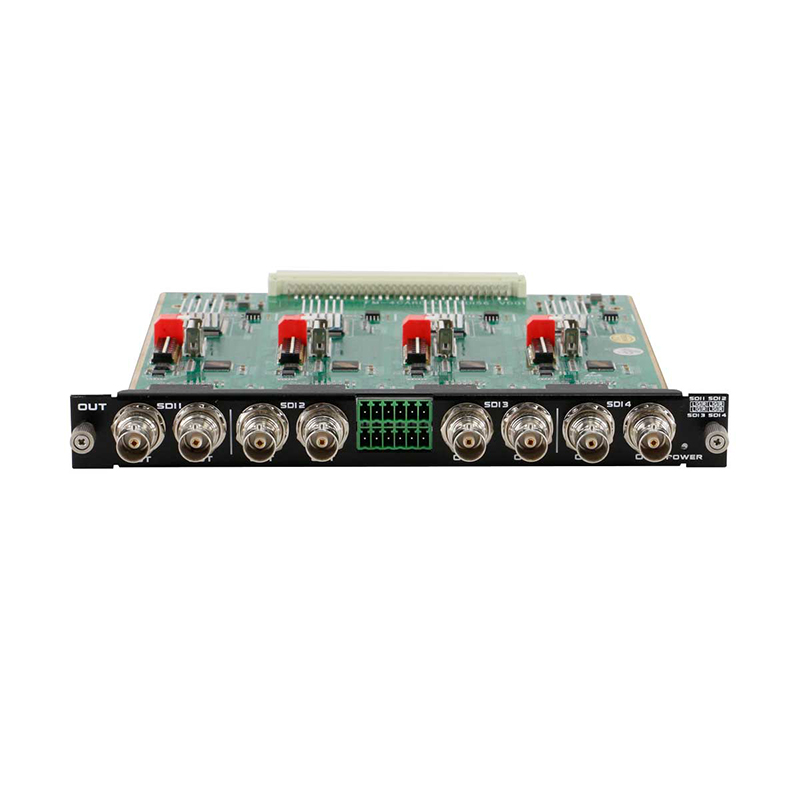

3GSDI Output Board FT-4OSMUS

The FT-4OSMUS is an SDI output card with 8 SDI interfaces supporting 3G-SDI, HD-SDI, and SD-SDI video output with resolutions up to 1920x1080. It offers seamless switching, video splicing, and supports up to 100 meters equalization. The card supports customizable output resolutions and is hot-pluggable for convenience.
Categories:
Get Quote
Category Tags , , , ,
Description
  1. FT-4OSMUS is an SDI output board that supports 8-way SDI interface; supports 3G-SDI with a resolution of up to 1920x1080; highly integrated board design, the number of boards can be selected as needed, which brings great convenience to application and maintenanc
  2. Support 8-way SDI interface, support audio and video signal synchronous output
  3. Support fast seamless switching, no flicker, no black screen
  4. Support power-off on-site switching memory protection function, unique ESD static protection function
  5. Support 3G-SDI, HD-SDI and SD-SDI video output with a resolution of up to 1920x1080; Support 100m equalization capability
  6. Fully compatible with HDTV
  7. Bandwidth up to 19Mbps to 2.97Gbps
  8. Support output resolution setting, up to 1080P@60HZ perfect match with display screen
  9. Support hot plug, plug and play, extremely convenient. 10.Support video splicing function
Parameter
Protocol(SMPTE 259M&SMPTE 344M), HD−SDI (SMPTE 292M), 3G HD−SDI (SMPTE 424M) and dual link HD−SDI (SMPTE 372M)
Pixel bandwidth2.970Gb/s, 1.485Gb/s, 270Mb/s
Signal jitter±10%
Maximum supported resolution1920x1080
Product weightabout 0.5KG
Maximum power consumption20W
Donwload
FT-4OSMUS
