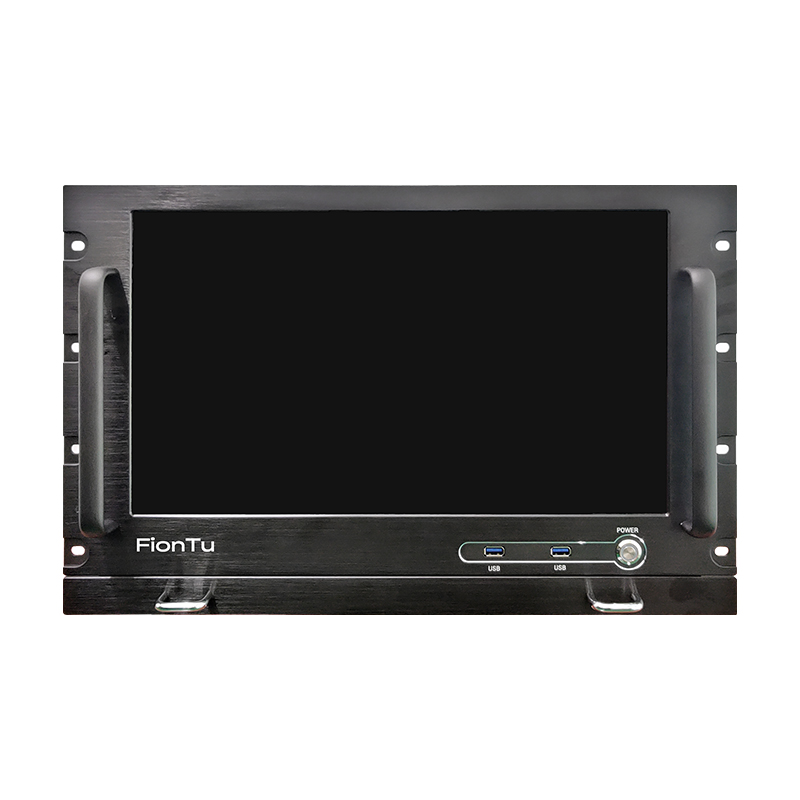

Webcast Server FP6-M21502

This industrial control chassis is a professional, rugged solution for IP broadcast systems, featuring a 15.6-inch HD touchscreen, high-capacity SSD, and strong cross-platform compatibility. It supports advanced system management, real-time terminal monitoring, and seamless network connectivity in harsh environments.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Professional rack-mount industrial control chassis design, featuring an integrated iron and aluminum alloy panel and electroplated steel spray-coated chassis structure, offering superior heat dissipation, interference resistance, dust resistance, and impact resistance
  • High-grade 7U brushed black aluminum alloy panel with chamfered edges and a matte sandblasted finish. A high-gloss finish surrounds the switch buttons and alloy keyboard drawer, highlighting the ultimate in detail and aesthetics
  • 15.6-inch HD touchscreen for easy-to-use touchscreen control
  • Integrated digital matrix industrial keyboard with embedded touchscreen and removable hidden keyboard and mouse touchpad
  • Built-in high-capacity SSD with vibration and drop resistance, fast read/write speeds, and low power consumption
  • After installing the broadcast system server software, it forms the basis of the IP broadcast system. The management and control center controls all audio source signals, allocates broadcast zones, and configures terminal information for the PA system
  • View the real-time status of each PA terminal using an electronic map generated by the service software, ensuring complete control
  • Standard RJ45 network interface allows access anywhere with an Ethernet port, supporting cross-segment and cross-router connectivity
  • Strong compatibility, compatible with Windows/Linux systems
  • Shock-resistant and anti-interference, with power-activated silent operation, high and low temperature resistance, and adaptability to various environments; supports 24/7 uninterrupted operation
  • Features two microphone inputs, two line inputs, each with independent volume control, and one line output
    • Parameter
    Processor4th-generation Core i5, dual-core, four-threaded, 2.7GHz
    Display15.6-inch, 4-wire resistive touchscreen, 1366*768 resolution
    MemoryDDR3 8GB DIMM slot, expandable to dual 8GB
    Hard DriveOnboard 128G SSD solid-state drive, mSATA interface
    Power SupplyMean Well fanless professional industrial power supply
    Operating SystemSupports Windows/Vista/WinXP/Win2000/Linux/UINX
    Hard Drive Expansion1 SATA 2.0 connector, 1 SATA 3.0 connector
    Video Interface1 VGA port, 1 HDMI port
    Ethernet Port1, supports 10/100/1000Mbps
    Serial Port1* RS-232 serial port
    USB2 x 3.0 USB, 4 x 2.0 USB
    Input1 x 3.5mm jack, 1 x 6.35mm jack, 4 x RACline jacks
    Power connector3-position jack
    Operating temperature-10°C to 50°C
    Storage temperature-20°C to 60°C
    Relative humidity5% to 95%, non-condensing
    Dimensions485mm (D) x 300mm (W) x 310mm (H) (excluding feet)
    Net weight11.8kg
