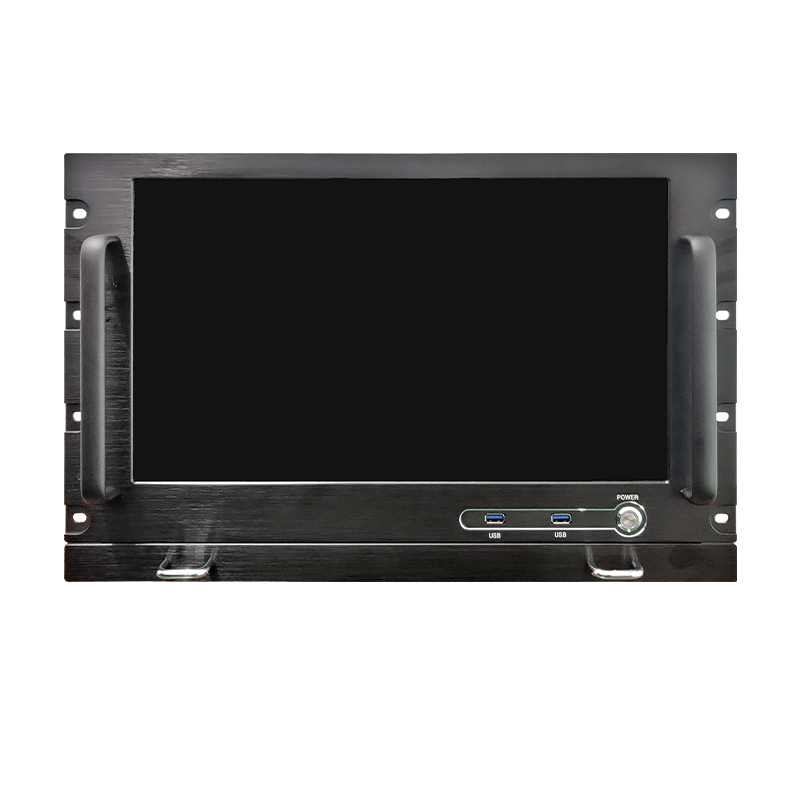

Webcast Server FP6-M1501

High-performance industrial control chassis with advanced design, featuring aluminum alloy panels and high heat dissipation. - Equipped with a 15.6-inch HD touch screen and embedded SSD storage for fast performance. - Designed for long-hour operation in various environments, supporting multiple operating systems and network connectivity.
Categories:
Get Quote
Category Tag
Description
  • Professional rack-mounted industrial control chassis design, using an integral iron, aluminum alloy panel and electroplated steel plate spray chassis structure, with high heat dissipation, anti-interference, dustproof and impact-proof capabilities
  • High-end 7U aluminum alloy black brushed panel, panel frame chamfering treatment sprayed with matte fine sand, switch buttons and alloy keyboard pull-out slots around a highlight to show the ultimate details, high-end atmosphere, beautiful and generous
  • Adopt 15.6-inch high-definition touch screen, simple and easy to use touch screen control
  • Embedded touch screen and retractable hidden keyboard and mouse touchpad integrated digital matrix industrial keyboard
  • Built-in large-capacity SSD solid-state hard disk, with anti-vibration, anti-fall, fast reading and writing speed, low power consumption and other characteristics
  • After installing the broadcast system server software, It constitutes the management and control center of the IP broadcasting system, controls the audio source signals of the broadcasting system, allocates the broadcasting area, and configures the terminal information
  • According to the electronic map formed by the service software, you can view the real-time status of each broadcasting terminal and be in control
  • Standard RJ45 network interface, which can be connected to any place with an Ethernet port, and supports cross-segment and cross-route
  • Strong compatibility, compatible with WINDOWS/LUNIX system
  • Anti-vibration and anti-interference, energy-saving and silent, high and low temperature resistance, adaptable to various environments; supports 7*24 hours of uninterrupted operation
  • It has 2 microphone inputs, 2 line inputs, each input has independent volume adjustment, and 1 line output
    • Parameter
    ProcessorCore I3
    Display15.6-inch 4-wire resistive touch screen, resolution 1920×1080
    MemoryDDR3 1333/1600MHz, 8G DIMM Slot interface
    Hard diskOnboard 128GSSD solid state hard disk, mSATA interface
    Power supply typefanless professional industrial power supply
    Operating systemSupport Windows/Vista/WinXP/Win2000/Linux/UINX
    Hard disk expansion1 SATA2.0 Connector 1 SATA3.0 Connectors
    Video interface1 VGA interface, 1 HDMI
    Network port1, support 10/100/1000Mbps
    Serial port1*RS-232 serial port
    USB3.0 USB*2, 2.0 USB*4
    Input1*3.5mm interface, 1*6.35mm interface, 4*RAC line interface
    Power interfacethree-position Phoenix tail plug interface
    Working environment-10℃~50℃
    Storage temperature-20℃~60℃
    Relative humidity5%~95%, non-condensing state
    Donwload
    FP6-M1501
