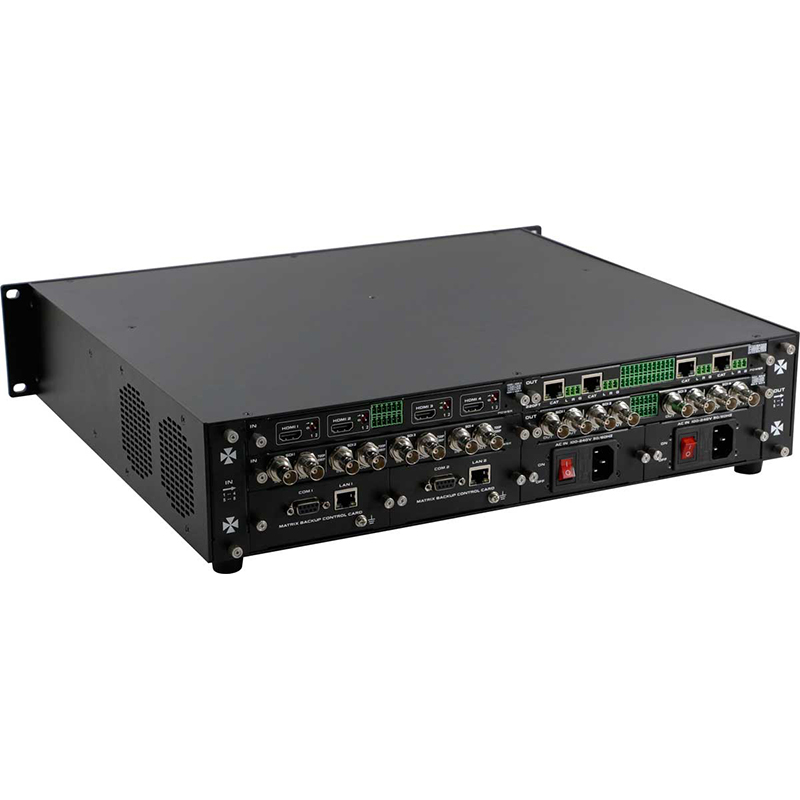

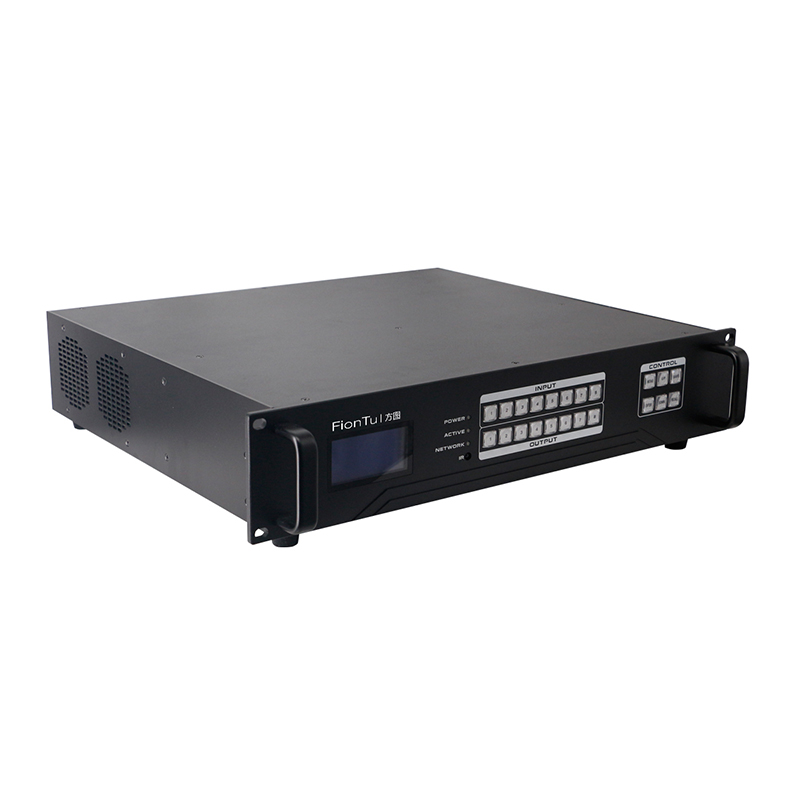

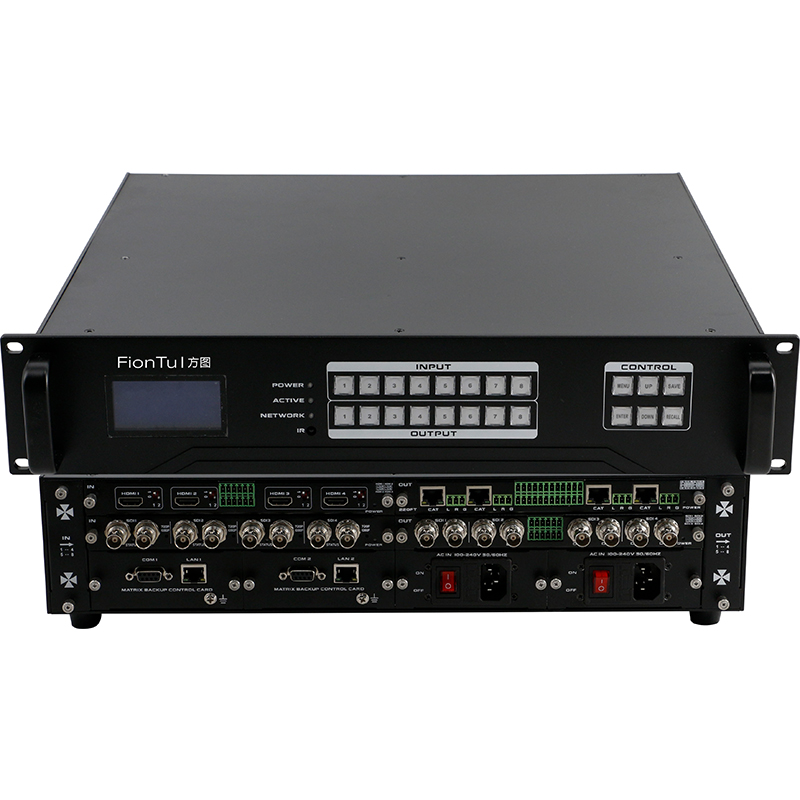

Seamless hybrid card matrix FT-MSHT08

FT-MSHT08 is an 8×8 modular hybrid matrix supporting seamless signal switching, high-definition video and audio processing, and flexible configuration. It features multi-format compatibility, 4K60 output, dual network/power backup, and long-distance HDBaseT/fiber transmission. Ideal for stable 24/7 operation with network and RS232 control for centralized management.
Categories:
Get Quote
Category Tags , , , ,
Description
  1. FT-MSHT08 is a multifunctional high-definition seamless hybrid matrix, with 8-input and 8-output design, increasedaudioanalysis, transmission, distribution, switching functions, and a key-type management design concept. All signal inputandoutput cards use one card with four channels, giving users maximum configuration flexibility, equipped withsignal resolution adjustment and signal type selection adjustment functions. This matrix adopts electromagnetic protectiondesign, which can effectively shield electromagnetic interference from the surrounding environment, so that theequipmentcan operate stably. Support 7*24 hours of uninterrupted operation; with network and RS232 communicationinterfacecontrol, it can be conveniently used with various remote control devices such as personal computers and central control systems
  2. Modular design, the device adopts one card with four channels, which can support CVBS/VGA/YPBPR/DVI/HDMI/HDSDI/3GSDI/
  3. Mixed input and output of HDBaseT/Fiber signals
  4. Support fast and seamless switching of various signals, without black screen, blue screen, or broken screenduringtheswitching process
  5. Powerful signal exchange processing capability, using quad-core quad-link core chip up to 32 Gbps processingrate; professional radio and television light button design, which can switch, set and other functions of the product
  6. Support HDCP analysis
  7. Support 4K60 signal output
  8. Support the analysis, distribution and switching of stereo audio of various video signals
  9. Support the transmission and switching of 4K digital high-definition video signals
  10. Support 3D image frequency doubling repair, adjacent pixel re-reading processing and 3D de-interlacingprocessingfunctions for image repair function
  11. Support down-scaling processing, adjacent pixel repair processing and blur processing to achieve image down-scalingprocessing function
  12. Support dual network, dual control backup, dual power backup function, and realize large-scale integratednetworkmanagement function
  13. Support video signal interface card plug-and-play function
  14. Support automatic storage protection in power-off scene and automatic memory recovery function at startup
  15. Support network conversion and transmission function of HDBaseT high-definition video signal, with a transmissiondistance of 70/100 meters and network input
  16. Output transmission bandwidth rate is up to 10 Gbps
  17. Supports fiber transmission distance from 550 meters to 10 kilometers, up to 80 kilometers
  18. Built-in powerful WEB server, can realize network remote management and control;
  19. Support powerful network centralized control function, a single control interface can control up to 254 devices19.Support simple splicing function
  20. Support overvoltage, overcurrent, overheating and overload protection to reduce the probability of equipment damage21.Support output picture still frame function
Parameter
Number of input cards that can be connected2 pieces
Number of output cards that can be connected2 pieces
Board interfaceone card four channels

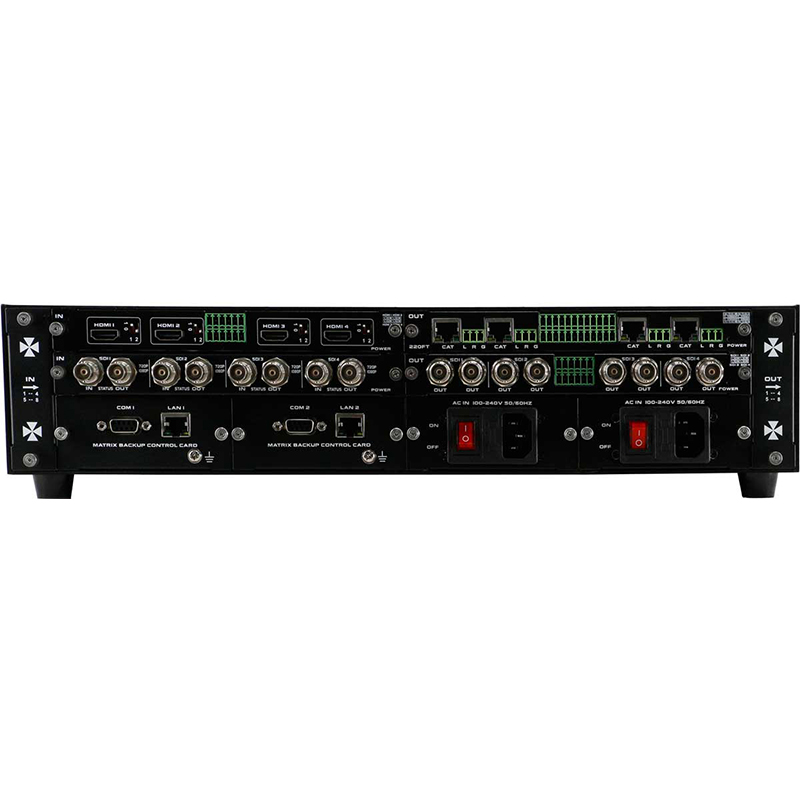

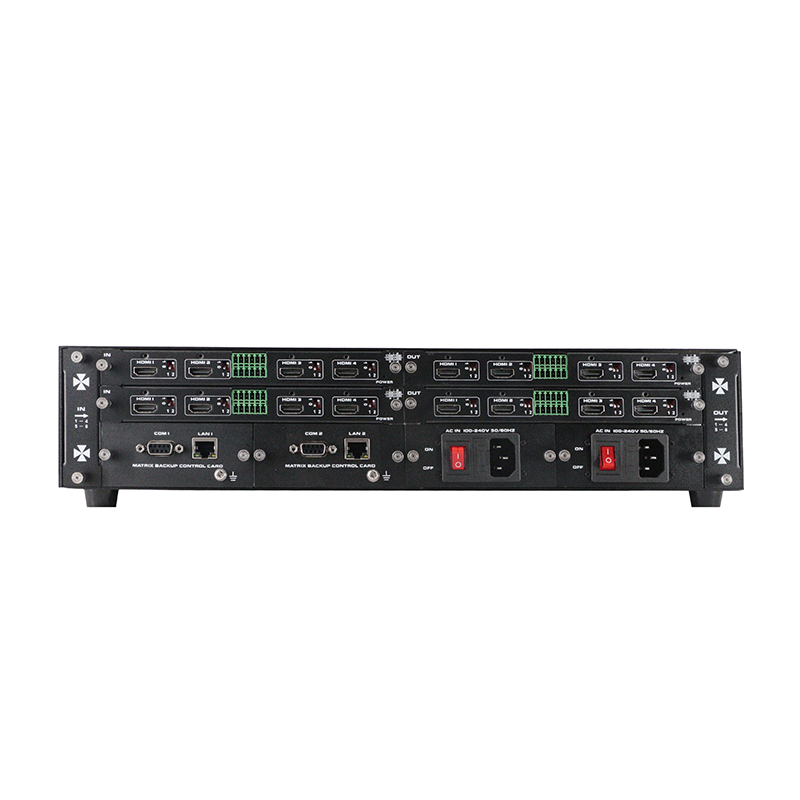

Input boardinterface board, support HDMI, DVI, 3GSDI, VGA, YPBPR, CVBS, network, fiber input
Output boardinterface board, support HDMI, DVI, 3GSDI, VGA, YPBPR, CVBS, network, fiber output
Protocolsupport HDMI2.0 and DVI1.0 protocol, support HDCP2.2 protocol and EDID function
7.3 Color spacesupport RGB444, YUV444, YUV422 color space, support x.v.Color extended color gamut standard
Resolution640×480---1920×1200@60Hz (VESA standard), 480i---4K60Hz (HDTV standard)
Data rate12.5Gbps
Transmission distance70m (category 6 network cable), 300m (multi-mode optical fiber), 2Km (single-mode optical fiber), 25m (digital cable) 30m (analog cable)

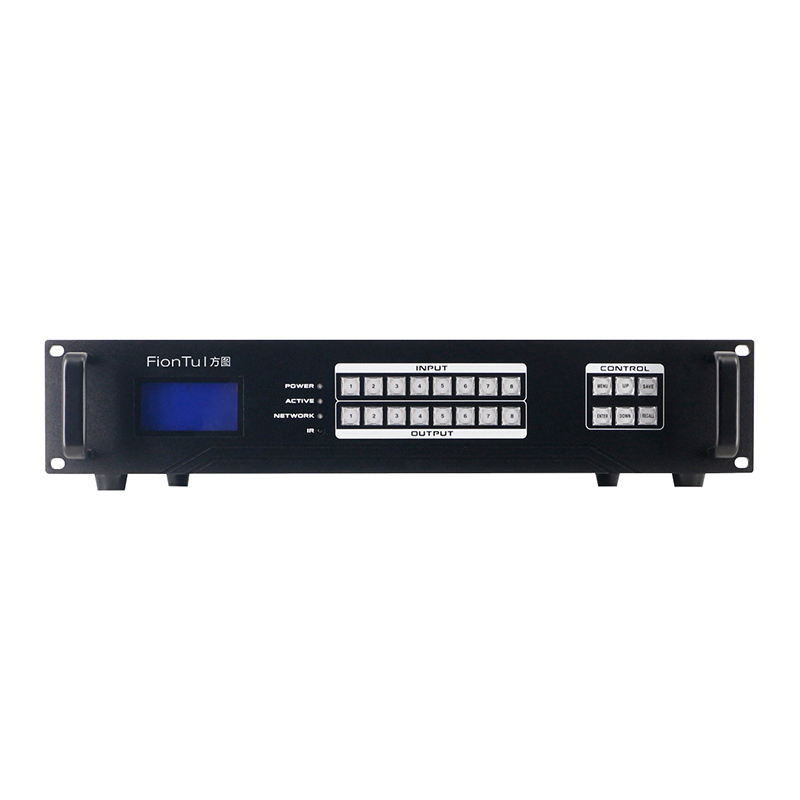

Control modebroadcasting-level switching button, dual RS232+LAN and other control modes
Size(mm)482*385*89 ( 2U)
Weight7KG (without card)
Power consumption10W (without card)
Power supplyAC 180V-240V 50/60HZ power input
Operating temperature-10℃ - 50℃
Storage temperature-25℃ - 55℃
Donwload
FT-MSHT08
