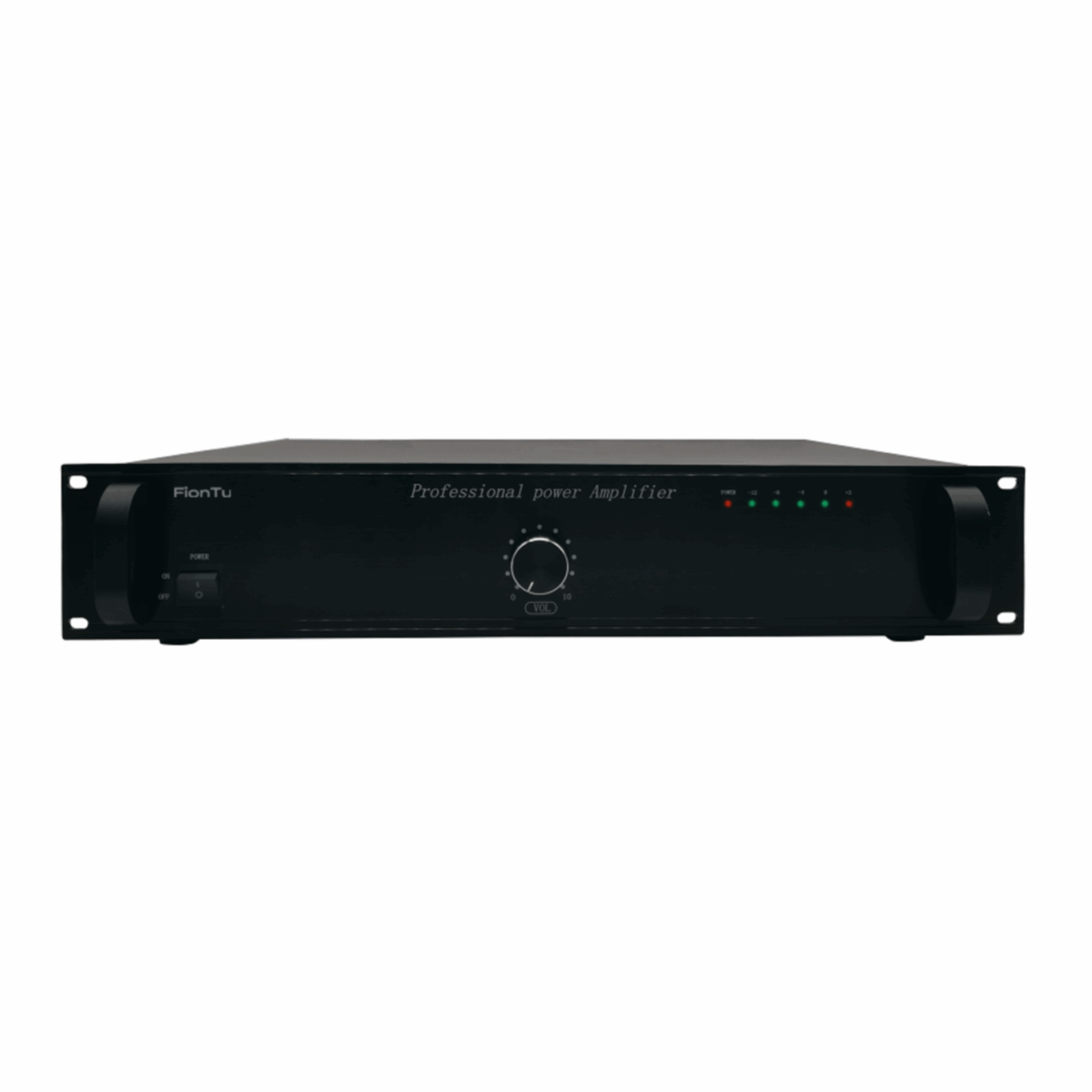

Pure power amplifier FP4-G9650

- A single-channel, high-power pure power amplifier designed for large-area broadcast sound reinforcement, offering regional amplification and robust protection. - Supports two power output modes (100V, 70V, and 4-16Ω) with versatile input/output interfaces for flexibility in installation.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Single-channel, high-power, pure power amplifier
  • Provides regional power amplification for broadcast systems, suitable for large-area broadcast sound reinforcement
  • 1-channel TRS input, 1-channel TRS cascade output
  • 1-channel RCA input, 1-channel RCA cascade output
  • Front panel with volume control knob
  • Provides robust protection against short circuits, overloads, and overheating
  • Two power output modes: 100V, 70V, and 4-16Ω constant resistance
    • Parameter
    Rated output power650W
    Speaker output100V, 70V, and 4-16Ω
    Input sensitivity & output Input Impedance775mV/10kΩ, balanced RCA/TRS jacks
    Output Sensitivity & Output Source Impedance775mV/470Ω, balanced RCA jacks
    Frequency Response50Hz-16kHz (+1dB, -3dB)
    Signal-to-Noise Ratio>90dB
    Total Harmonic Distortion0.5% at 1kHz, 1/3 output power
    CoolingFront-to-back forced air cooling, built-in fan activates at 45°C
    ProtectionOverheat, overload, short circuit
    Power Supply~220V, 60/50Hz
    Dimensions480×385×88mm
    Weight20kg
    Donwload
    FP4-G9650
