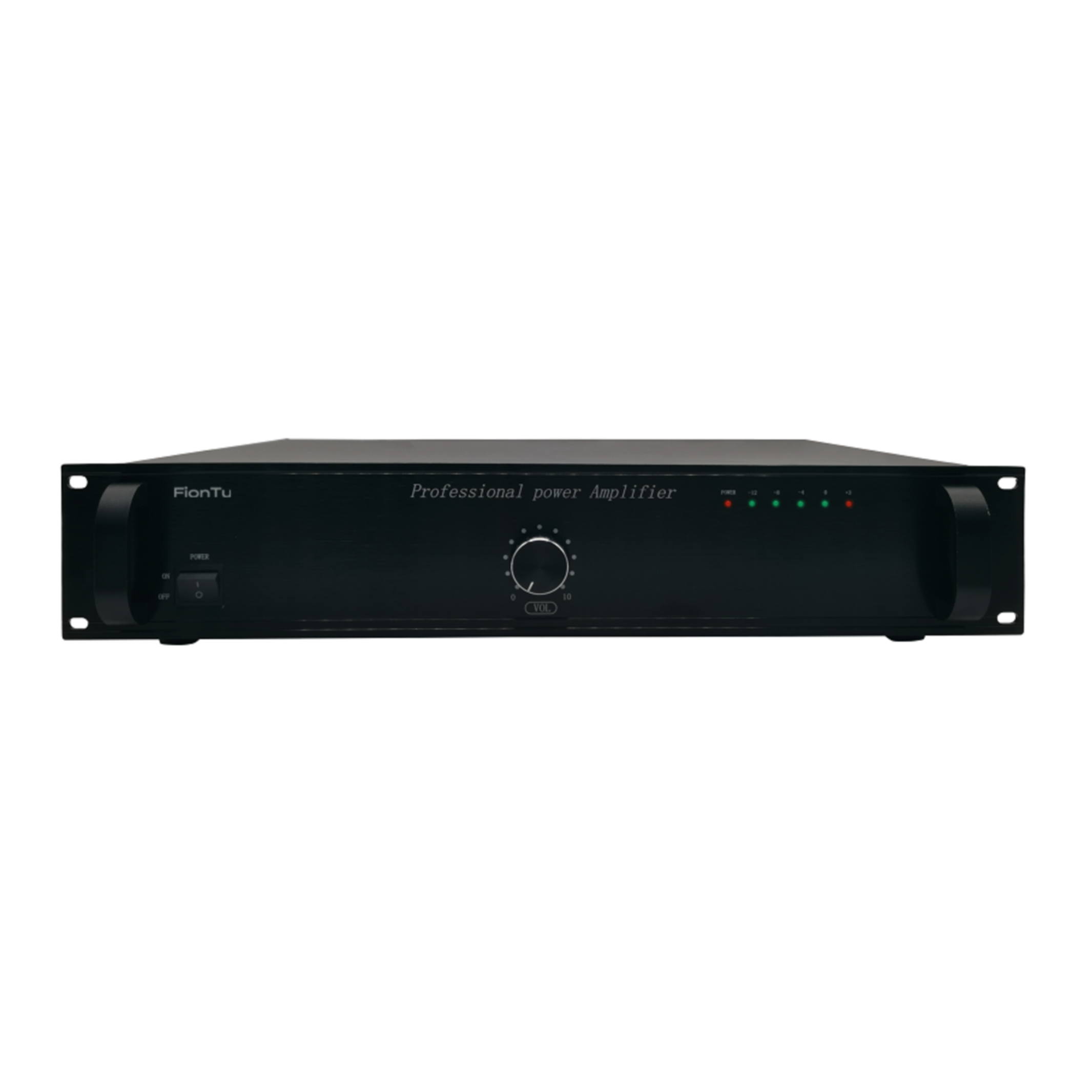

Pure power amplifier FP4-G9350

- High-power single-channel amplifier with 350W rated output, supporting 100V, 70V, and 4-16Ω outputs. - Designed for large-area sound reinforcement with regional power amplification and robust protection features. - Versatile inputs (TRS/RCA) and outputs, ensuring flexibility in various audio systems.
Categories:
Get Quote
Category Tag
Description
Rated output power350W
Speaker output100V, 70V, and 4-16Ω
Input sensitivity & output Input Impedance775mV/10kΩ, balanced RCA/TRS jacks
Output Sensitivity & Output Source Impedance775mV/470Ω, balanced RCA jacks
Frequency Response50Hz-16kHz (+1dB, -3dB)
Signal-to-Noise Ratio>90dB
Total Harmonic Distortion0.5% at 1kHz, 1/3 output power
CoolingFront-to-back forced air cooling, built-in fan activates at 45°C
ProtectionOverheat, overload, short circuit
Power Supply~220V, 60/50Hz
Dimensions480×385×88mm
Weight12kg
Parameter
Specification:
Donwload
FP4-G9350
