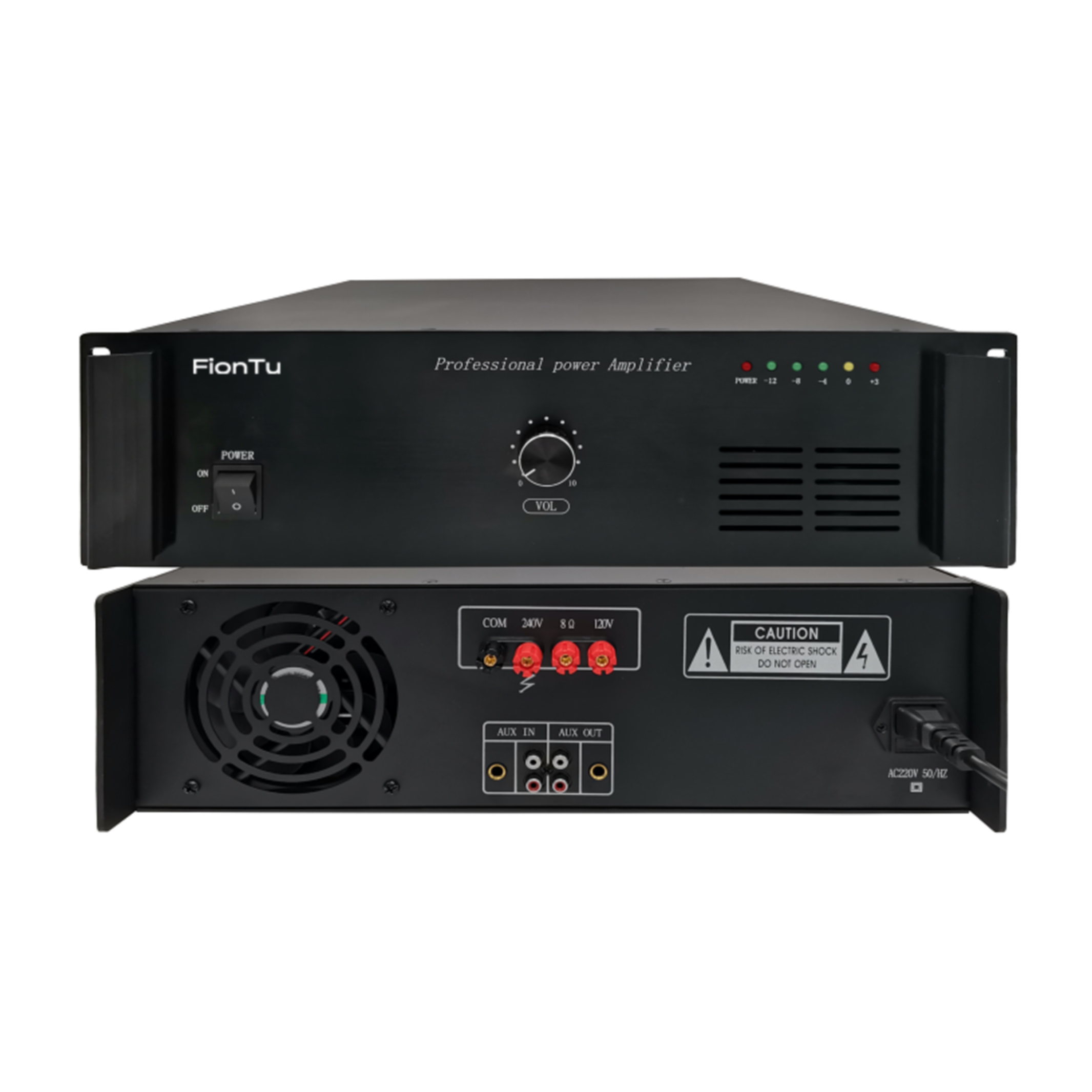

Pure power amplifier FP4-G91000

High-power, single-channel power amplifier with regional broadcast capabilities and forced-air cooling. Supports 120V/240V constant voltage and 4-16Ω constant impedance output modes. Features short circuit, overload, and overheating protection.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Single-channel, high-power, pure power amplifier
  • Provides regional power amplification for broadcast systems, suitable for large-area broadcast sound reinforcement
  • 1-channel TRS input, 1-channel TRS cascade output
  • 1-channel RCA input, 1-channel RCA cascade output
  • Front panel with volume control knob
  • Effective self-protection against short circuits, overloads, and overheating
  • Two power output modes: 120V and 240V constant voltage output, and 4-16Ω constant impedance output
    • Parameter
    Rated output power1000W
    Speaker output240V, 120V, and 4-16Ω
    Input sensitivityInput Impedance: 775mV/10kΩ, balanced RCA/TRS jacks
    Output Sensitivity & Output Source Impedance775mV/470Ω, balanced RCA jacks
    Frequency Response50Hz-16kHz (+1dB, -3dB)
    Signal-to-Noise Ratio>90dB
    Total Harmonic Distortion0.5% at 1kHz, 1/3 output power
    CoolingFront-to-back forced air cooling, built-in fan activates at 45°C
    ProtectionOverheat, overload, short circuit
    Power Supply~220V, 60/50Hz
    Dimensions482×500×140mm
    Weight27kg
    Donwload
    FP4-G91000
