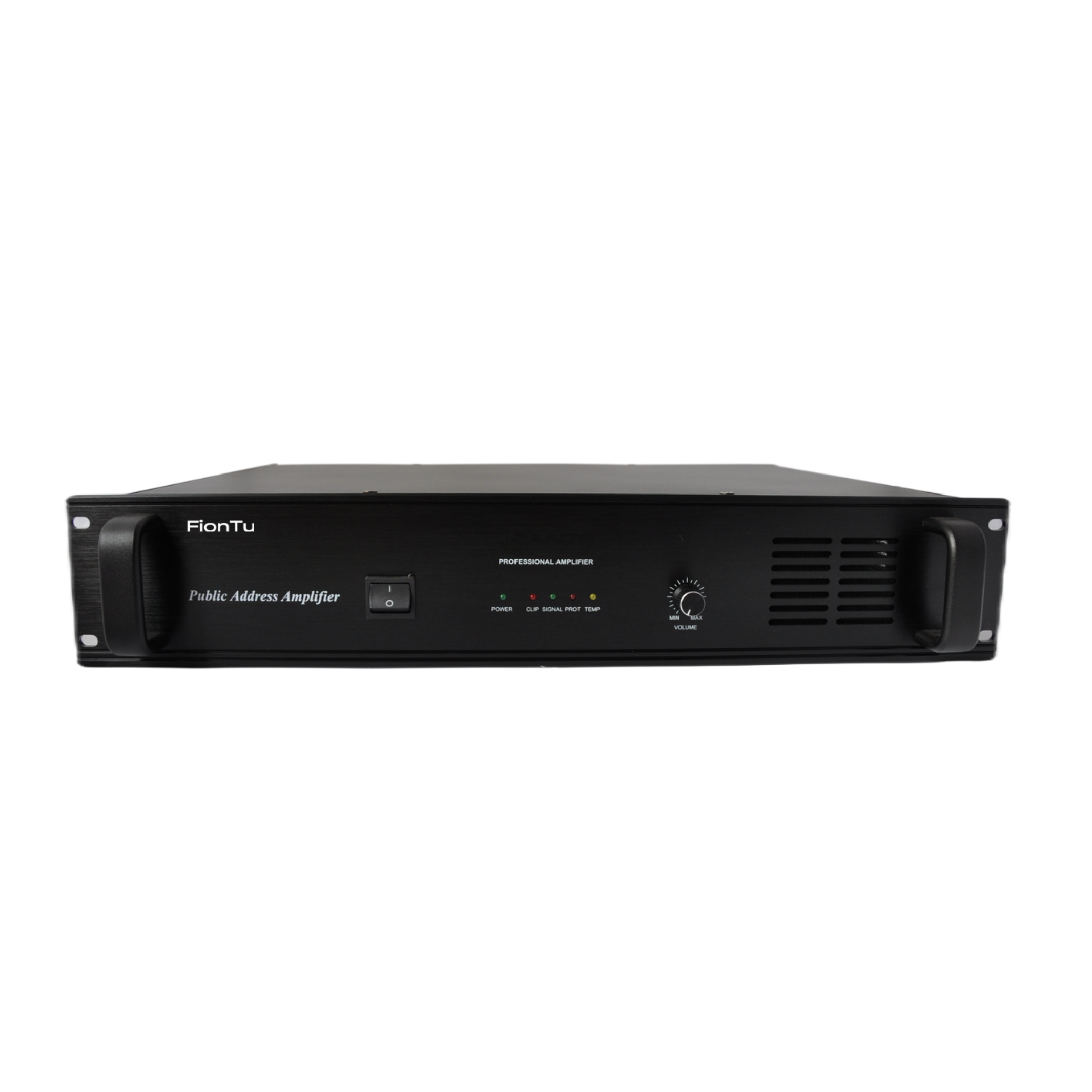

Pure power amplifier FP4-G8800S

1. Advanced power amplifier circuitry delivers high efficiency and strong output. 2. Features abnormal operation warning system for enhanced reliability. 3. Durable aluminum alloy front panel design for aesthetics.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Advanced, high-efficiency power amplifier circuitry delivers powerful output and exceptional load capacity. Features one audio input with independently adjustable volume
  • Features an abnormal operation warning function. Indicator lights indicate when input signal is excessive, load is excessive, temperature is excessive, or circuit conditions are faulty, ensuring high reliability
  • Aluminum alloy front panel design for aesthetics and practicality
    • Parameter
    Rated Output Power800W
    Input Sensitivity0dBV
    Signal-to-Noise Ratio>80dB
    Damping Factor200：1
    Common Mode Rejection>90dB
    Frequency Response50Hz-15kHz (±3dB)
    Total Harmonic Distortion4W/1kHz <0.3%
    Rise Rate>15V/μs
    Indicator Lights"Power", "Clipping", "Signal", "Protection" and "Over Temperature"
    ProtectionPower-On Protection, High-Temperature Protection, DC Protection, Short-Circuit Protection
    Donwload
    FP4-G8800S
