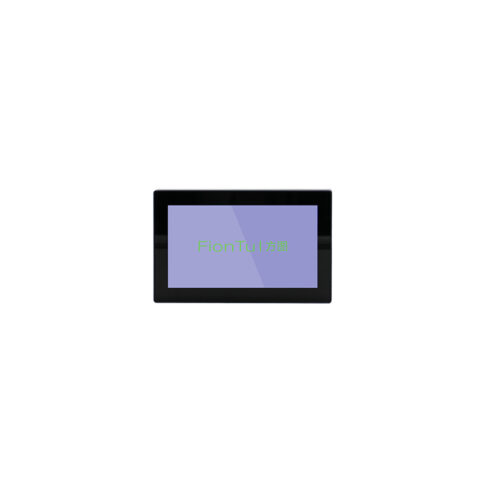

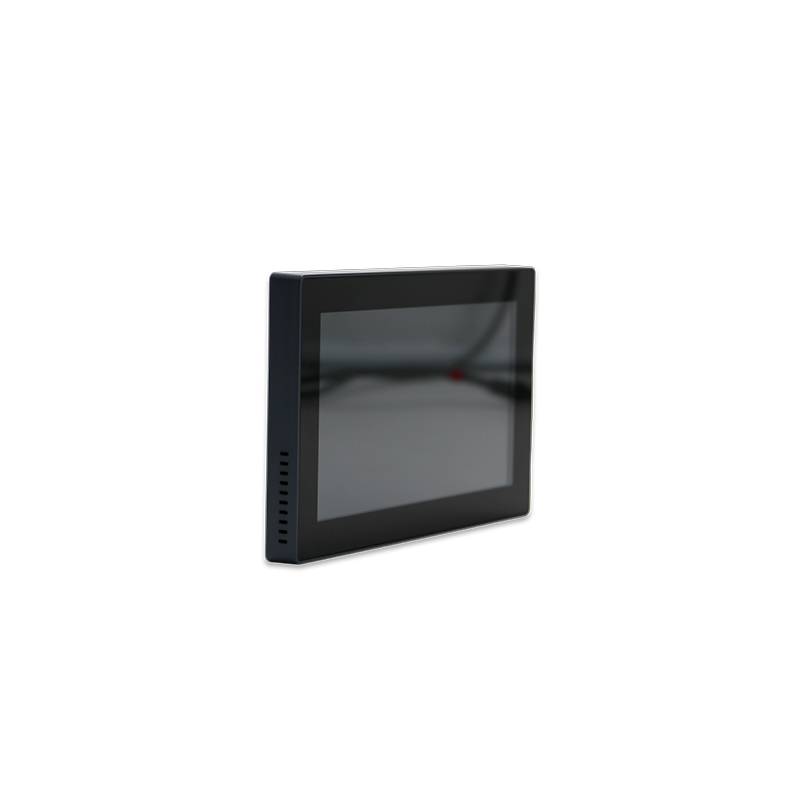

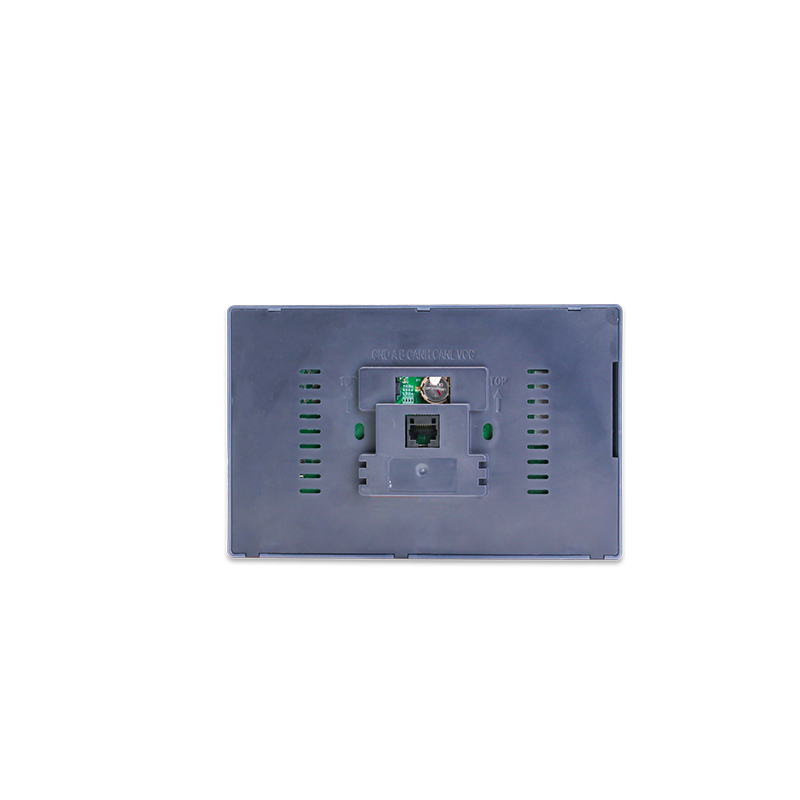

Programmable control panel FT-CE-CMA7

This device is an embedded touchscreen display with a 7-inch resolution of 1024x600, powered via POE and supporting Ethernet communication. It features built-in storage, supports image and video playback, and is compatible with VisualTFT® software for host computer control. Additionally, it includes a real-time clock and optional sound playback.
Categories:
Get Quote
Category Tags , , , ,
Description
Parameter
Core processor 800MHz 32
Operating systemEmbedded real-time operating system, running after 4s after power-on
Protocol typeEthernet
Size7.0 inches
Resolution1024*600
Storage space1Gbit
Font librarybuilt-in vector fonts, edge anti-aliasing processing, including any size dot matrix
Image storagesupport JPEG, PNG (semi-transparent/full-transparent) compression, support any size image storage
Color65K colors
Voltage48V
POE power supply protocolIEEE802.3af
Communication methodEthernet
Communication connector specificationRJ45
Image downloadSD card
Real-time clock (RTC)Support countdown, timer, year, month, day and other time display
Screen effective display area (AA)length × width = 153.7mm×86.2mm
Product size (length*width*height)Length×width×height=184.0mm×118.0mm×15.1mm
Supporting host computer softwareVisualTFT®
Sound playbackOptional
Video playbackMP4 video format, sharing storage space with pictures
Donwload
FT-CE-CMA7
