Paperless Server FT-1000B

This 2U paperless conference system rack server features enterprise-grade Xeon processors, a 1TB SSD, and 32GB of memory for stable, long-term operation. It offers dual Gigabit LAN, rich expansion interfaces, and dual-display support with HDMI and VGA. Designed with high durability, it includes advanced protection against magnetism, dust, and impact.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Paperless conference system rack server, data storage management center of paperless conference system software;
  • Adopt Xeon series processors dedicated to enterprise-level servers to maintain long-term stable operation of the server and keep the business online
  • Adopt enterprise-level hard disks, which greatly improve data security and reduce hard disk failure rate compared with desktop-level hard disks
  • Adopt industrial-grade industrial computer standard rack chassis design, 2U height, Magang high-grade flowerless galvanized plate design structure, with extremely high anti-magnetic, dust-proof and impact-proof capabilities
  • With professional server system, it can achieve strong reliability and ensure the perfect operation of paperless system
  • Rich external interfaces reflect the scalability of the equipment and facilitate expansion and access to other devices
  • Built-in dual Gigabit network cards to realize simultaneous operation of internal and external networks

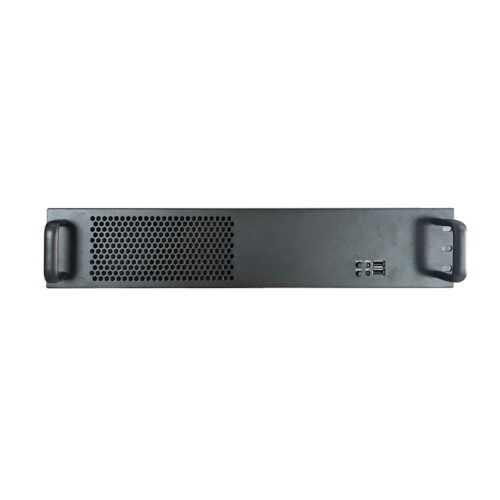

  • The front panel is equipped with power on and restart buttons, status indicator lights, which can intuitively check whether the equipment is running normally, and conveniently restart the equipment quickly
  • Supports simultaneous dual display, one standard HDMI and one VGA signal output, supports adaptive resolution adjustment, and is convenient for displaying multiple adaptive images
Parameter
CPUXeon series processor
Memory32GB
Hard disk1T SSD
BIOSAMI EFI BIOS
Super l/OFintek F81866AD
Ethernet2x Intel I210 10/100/1000Mbps LAN
Graphics controlIntel Skylake/Kaby Lake-S embedded GPU

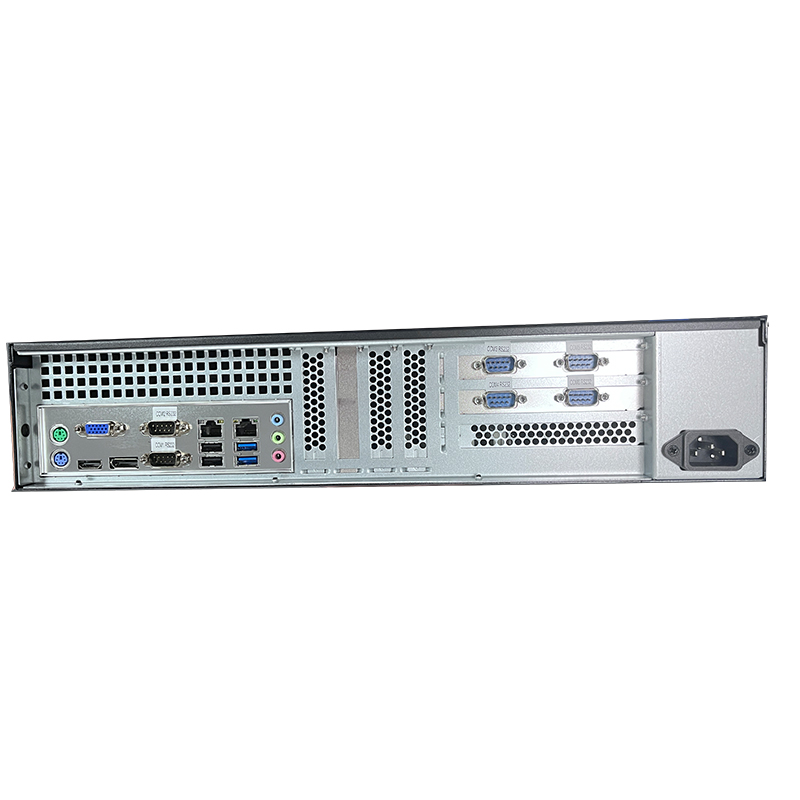

Display1x VGA, 1x HDMI (VGA, HDMI rear IO panel)
VGA supports a maximum resolution1920 x 1200@60Hz
HDMI supports a maximum resolution4096 x 2160@60Hz
SATA6x SATA3.0 (Built-in motherboard interface, not visible outside the chassis)
USB interface6xUSB3.0, 6xUSB2.0 (2 on the front panel, 4 on the rear panel)
Serial port6x RS232 (pin), COM1 supports RS422, RS485 mode
PS/21x PS/2 keyboard and mouse pin
AudioRealtek ALC662 HD Audio
Watchdog255-level timer, resettable
Power supply type24+4Pin ATX power supply
Environmental requirementsOperating temperature: -10C ~ 60C
Storage temperature-40°C ~ 85C
Humidity5% ~ 95% relative humidity, no condensation
Product size480*430*89mm (length x width x height)
Donwload
FT-1000B
