One-to-two wireless projection device FT-US02

This device supports simultaneous output of different content through HDMI and VGA, as well as mixed displays from multiple mobile terminals. It features a wireless transmission distance of up to 30 meters, 4K video input resolution, and customizable settings for audio output and display ratios. With robust connectivity options and support for various operating systems, it provides versatile functionality for presentations and screen sharing.
Categories:
Get Quote
Category Tags , , , ,
Description
Product Features
1. HDMI & VGA OutputSimultaneous output of identical content through HDMI and VGA, with adjustable resolutions.
2. Mixed DisplaySupports mixed display from computers and mobile devices.
3. Multi-device DisplaySimultaneous display of multiple mobile devices.
4. Automatic DetectionDetects multiple receivers on the same network for screen mirroring.
5. Resolution AdjustmentAllows modification of resolution and aspect ratio during screen mirroring.
6. Device Info DisplayDisplays username and type on the connected display.
7. Routing FunctionalityReceiver device includes routing functionality (wired or wireless).
8. Internet AccessMobile devices can screen-mirror while staying online.
9. Sound-sharing ModesFour modes, ensuring no audio mixing during multi-screen sharing.
10. Reverse ControlSupports mouse and 16-point touch reverse control.
11. CustomizationCustomizable boot/standby screen, web interface, frequency, and channel.
12. WiFi and PasswordAllows customization of WiFi name and password.
Parameter
1. Video Input Resolution4K / 3840×2160
2. Video Output Resolution1080p / 1920×1200
3. Frame RateUp to 30 fps
4. Wireless Transmission DistanceUp to 30 meters (line of sight)
5. Wireless Frequency Band2.4 GHz or 5 GHz (default: 5 GHz)
6. Wireless Encryption ProtocolWPA2-PSK
7. Aspect Ratio4:3 / 16:9 / 16:10
8. Simultaneous Display Sources2 channels
9. Connected Source DevicesUp to 16 devices
10. Audio Output44.1 kHz / 16-bit stereo via HDMI and 3.5mm analog audio output
11. Wireless Transmission ProtocolIEEE 802.11ac / 802.11n
12. Wireless Transmission RateUp to 867 Mbps
13. Available Channels9 (5G) / 11 (2.4G)
14. Transmission LatencyAverage latency <100 ms
15. Power Supply / ConsumptionHost: 12V / 1A, 5W; Button: 5V / 500mA, 1.5W
16. Operating Temperature+5°C to +40°C
17. Storage Temperature-20°C to +60°C
18. Humidity0–90% relative humidity (non-condensing)

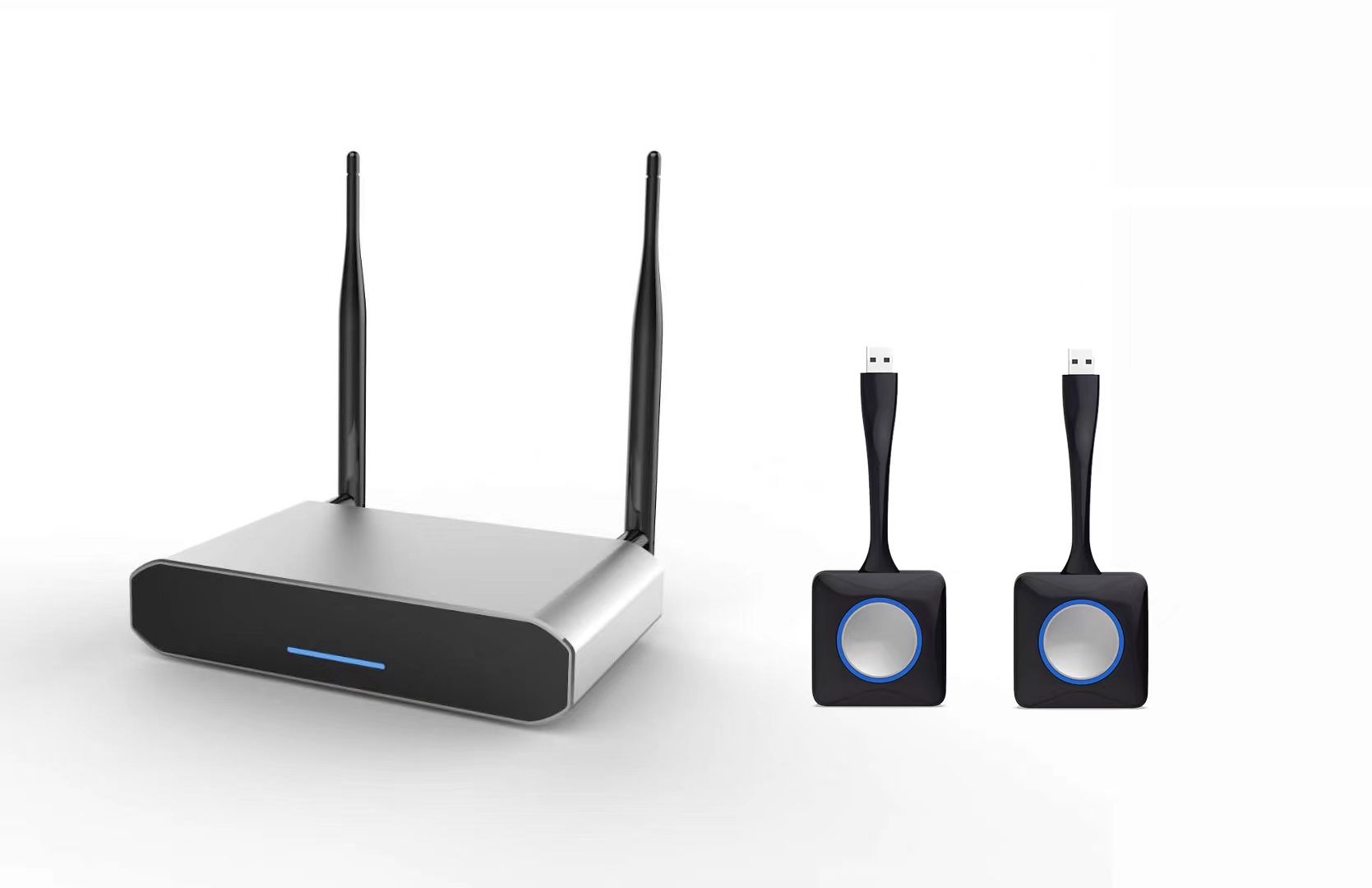

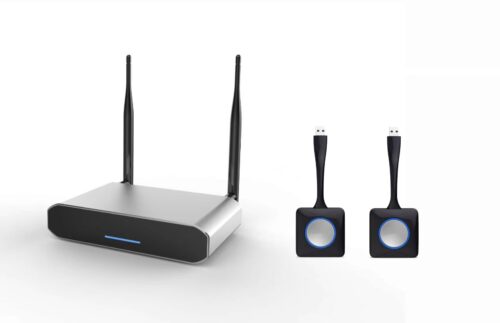

19. Standard Accessories2 transmitters, power supply, storage case, antenna

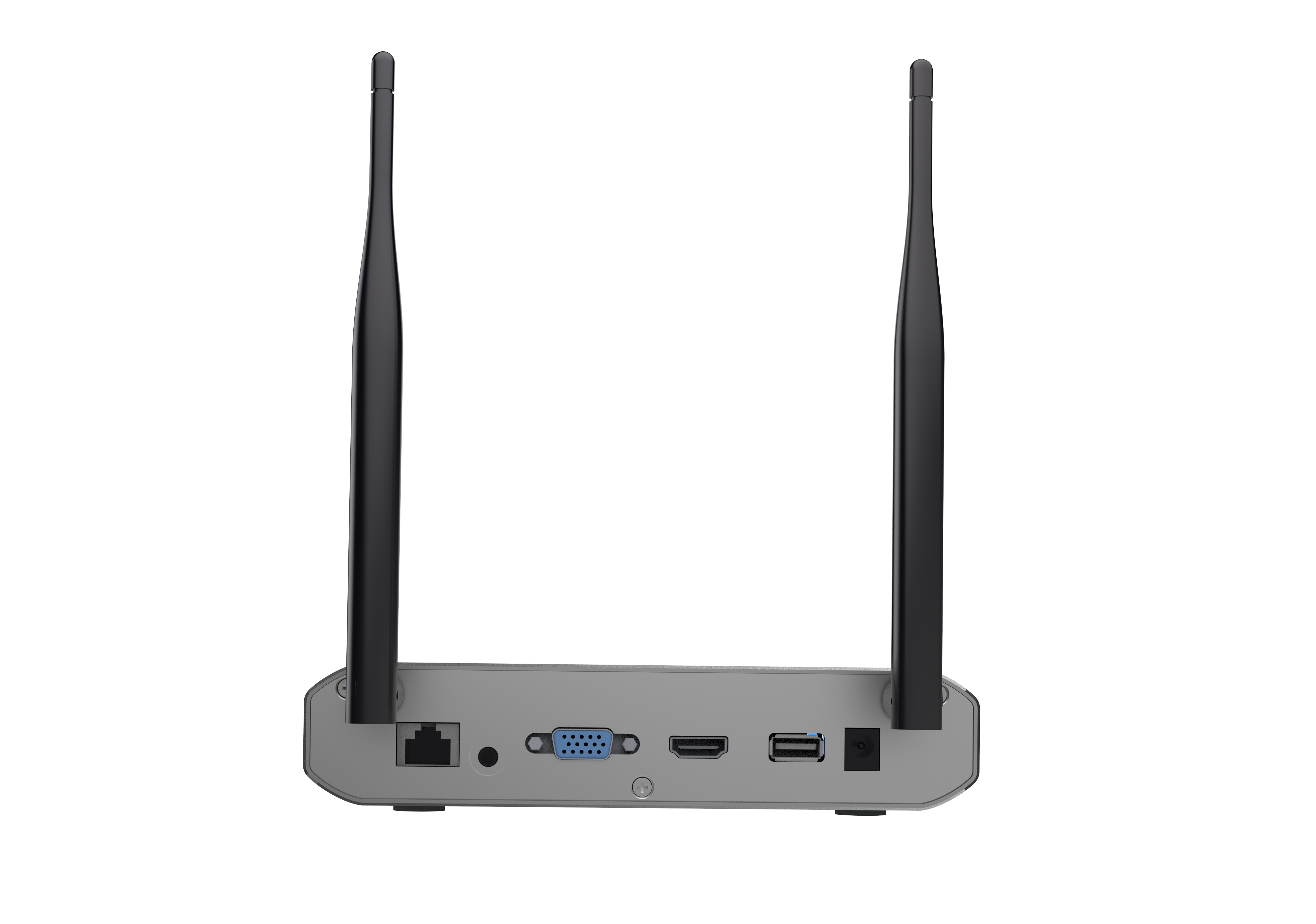

20. Hardware InterfacesVGA, HDMI, Network, Standby Switch, 3.5mm Audio, USB, 12V Power Input, Security Lock Hole
21. OS CompatibilityWindows 7/8.1/10, macOS X 10.10+, iOS 9+, Android 5.0+ (requires app installation, ESHOW)
Donwload
FT-US02
