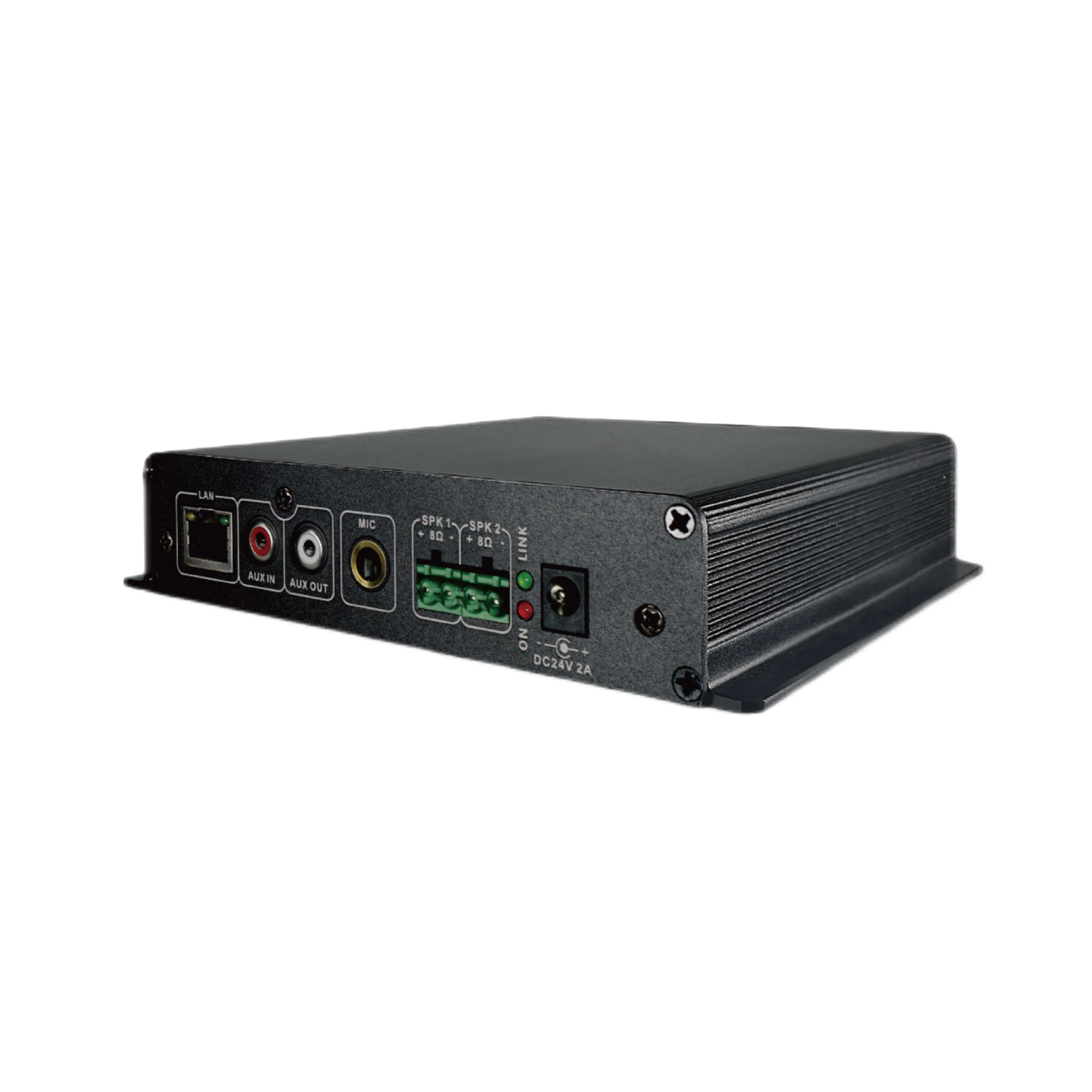

Network wall-mounted terminal FP6-P95030

The IP wall-mounted player terminal is a smart, fully digital device designed for high-fidelity audio transmission, supporting background music, emergency paging, and network configurations with low power consumption.
Categories:
Get Quote
Category Tags , , , ,
Description
  • The IP wall-mounted player terminal is a fully digital analog-to-digital signal processor based on the TCP/IP transmission protocol. Intelligently controlled by the main control system, it can play background programs, emergency paging, alarm signals, and more from the main control system
  • Fully digital design, high fidelity, and excellent voice transmission performance
  • High-grade aluminum alloy construction
  • Built-in high-quality digital amplifier with low power consumption
  • Features one auxiliary audio input, one auxiliary audio output, and one microphone input
  • Highly reliable design with a long lifespan, with a mean time between failures (MTBF) exceeding 100,000 hours
  • Overvoltage, overheating, and short-circuit protection
  • LED indicators for operating status, network status, and power status
  • Can receive emergency paging calls independently of the server, with the volume automatically adjusting to the set value
  • Supports DHCP and static IP network modes; supports AUTO IP, automatically switching to a temporary IP if no IP address is obtained in DHCP mode
  • Supports automatic standby mode for energy saving when no music signal (including local audio) is present
    • Parameter
    Power InputDC16-24V/2A
    Network InterfaceRJ45 (10/100M)
    Audio Input Sensitivity300mV
    Audio Output1V
    MIC Input Sensitivity10mV
    Amplifier Output Power2 x 30W
    Frequency Response20Hz-16kHz
    Distortion≤1%
    Signal-to-Noise Ratio≥81dB
    Operating Temperature-20°C to +60°C
    Dimensions155 x 100 x 32mm
    Net Weight0.4kg
    Donwload
    FP6-P95030
