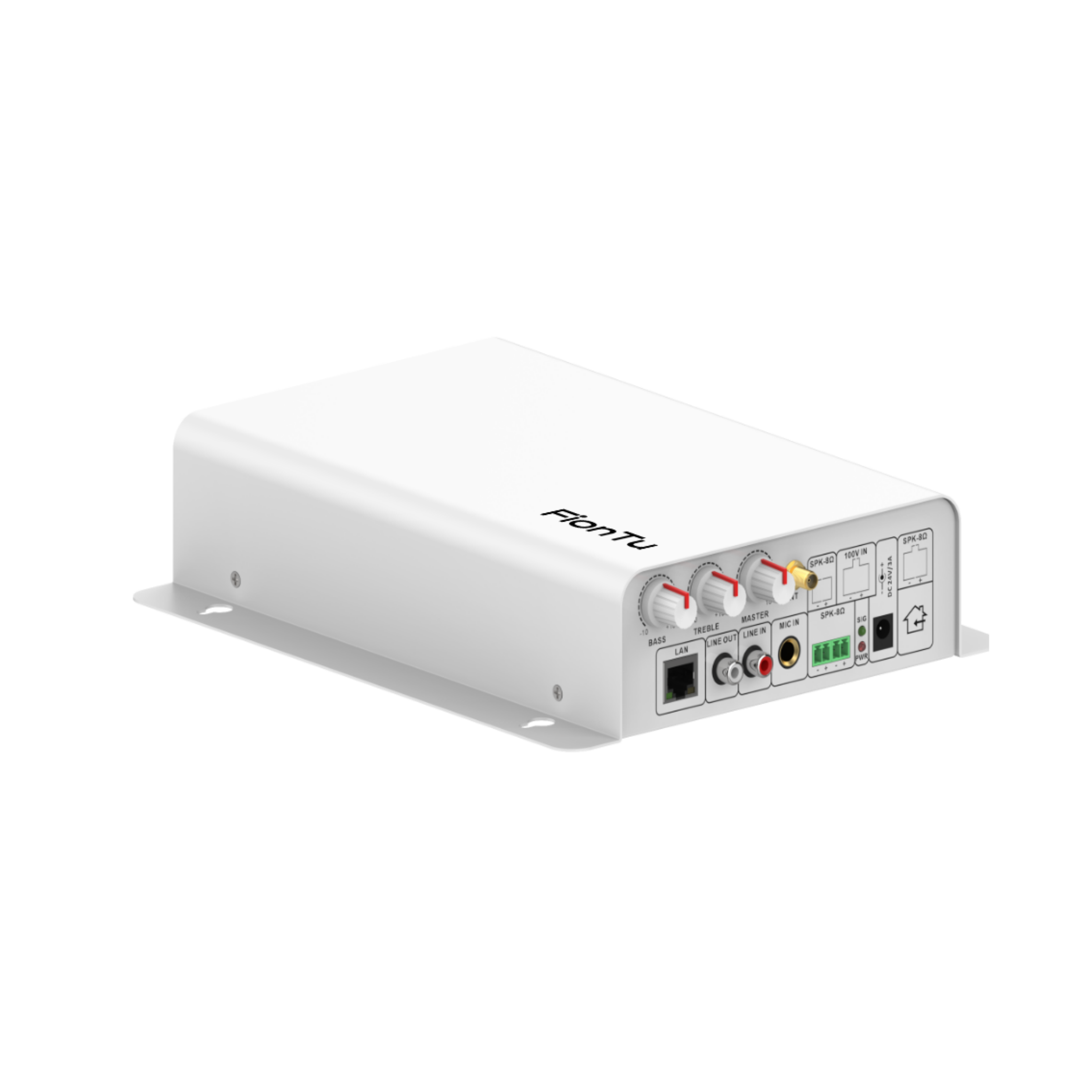

Network wall-mounted terminal FP6-P8330T

The IP wall-mounted player terminal is a fully digital, high-fidelity audio processor with TCP/IP support, offering emergency calling, offline playback, and reliable protection features.
Categories:
Get Quote
Category Tags , , , ,
Description
  • The IP wall-mounted player terminal is a fully digital analog-to-digital signal processor based on the TCP/IP transmission protocol. Intelligently controlled by the main control system, it can play background programs, emergency paging, alarm signals, and other signals from the main control system
  • Fully digital design, high fidelity, and high voice transmission index
  • Entire design made of high-grade metal materials
  • Built-in high-quality digital amplifier with low power consumption
  • Features one auxiliary audio input, one auxiliary audio output, and one MIC input
  • Highly reliable design with a long lifespan, mean time between failures (MTBF) > 100,000 hours
  • Features overvoltage, overheating, and short-circuit protection
  • Operating status and network LED indicators for network and power status
  • Receives emergency calls independently of the server, with the volume automatically adjusting to the set value
  • Supports 100V network and power outage backup, with a switchover time of less than 0.03 seconds
  • Supports U-band wireless microphone function
  • Supports offline playback, built-in 4GB storage, built-in offline local scheduled playback function, and scheduled program backup to the SD card, with fully automatic backup of scheduled programs
  • Professional DSP sound processing chip, supports 10-band parametric equalization, and delivers high-fidelity CD-quality sound
  • Supports custom terminal priority settings
  • Supports DHCP and static IP network modes; supports AUTO IP function: If no IP address is obtained in DHCP mode, it automatically switches to a temporary IP address
  • Supports automatic standby mode for energy saving when no music signal (including local audio signal) is present
  • Supports SIP standard communication protocol
    • Parameter
    Network interfaceStandard RJ45 input
    Power inputDC12-24V/2A
    Transmission rate100Mbps
    Supported protocolsTCP/IP, UDP, and SIP standard communication protocol
    Audio formatMP3
    Audio mode16-bit CD quality
    Sampling rate8kHz to 48kHz
    Amplifier rated power2 x 30W into 4Ω
    Audio input sensitivity300mV
    Audio output sensitivity1.0V
    MIC sensitivity10mV
    Frequency response20Hz to 16kHz
    Distortion≤1.0%
    Signal-to-noise ratio≥75dB
    Operating Temperature-20°C to +60°C
    Dimensions208 × 250 × 60 mm
    Net Weight2.1 kg
    Donwload
    FP6-P8330T
