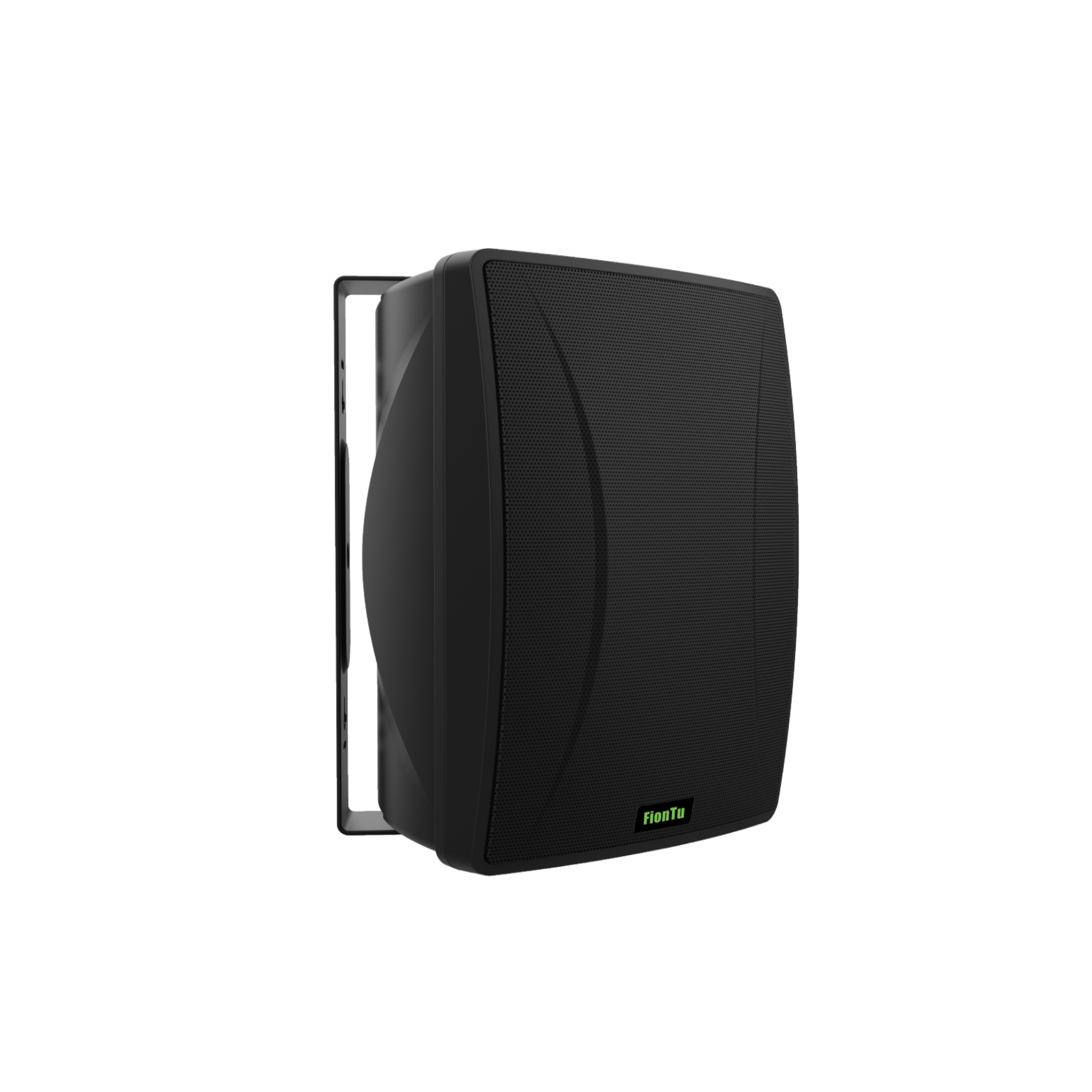

Network wall-mounted speakers FP6-P5340

This network-connected wall-mounted speaker features a fully digital design with high fidelity, supports emergency paging and scheduled playback, and offers reliable performance with advanced DSP audio processing.
Categories:
Get Quote
Category Tags , , , ,
Description
  • This network-connected wall-mounted ABS engineering plastic speaker features a fully digital analog-to-digital signal processor based on the TCP/IP transmission protocol. Intelligently controlled by a master control system, it can play background programs, emergency paging, alarm signals, and more
  • Fully digital design, high fidelity, and excellent voice transmission performance
  • Built-in 2 x 20W high-quality digital amplifiers, compatible with external sub-amps, and low power consumption
  • Highly reliable design with a long lifespan, mean time between failures (MTBF) > 100,000 hours
  • Features overvoltage, overheating, and short-circuit protection
  • Supports offline playback, built-in 4GB storage, and built-in offline local scheduled playback. Scheduled programs can be backed up to an SD card and automatically backed up
  • Professional DSP audio processing chip with 10-band parametric equalization for high-fidelity CD-quality sound
  • Receives emergency paging calls independently of the server, with volume automatically adjusted to the set value
  • Supports DHCP and static IP network modes; supports AUTO IP function: If no IP address is obtained in DHCP mode, it automatically switches to a temporary IP address
  • Supports automatic standby mode for energy saving when no music signal (including local audio signal) is present
  • Supports customizable terminal priority settings
  • 1 local MIC, 1 line-in input, and 1 line-out output for convenient local expansion
  • High and low volume adjustment, as well as a master volume control for the main audio output, facilitates installation and debugging
  • Supports SIP standard communication protocol
    • Parameter
    Network InterfaceStandard RJ45 Input
    Power InputDC24V/2A, AC220V 50Hz/60Hz
    Transmission Rate100Mbps
    Supported ProtocolsTCP/IP, UDP
    Audio FormatMP3
    Audio Mode16-bit CD Quality
    Sampling Rate8kHz to 48kHz
    Amplifier Rated Power2 x 20W
    Speaker Units4.5 x 1+ 1*1
    Sensitivity (1m, 1W)90±2dB
    MIC Sensitivity10mV
    Frequency Response95-20kHz
    Distortion≤1.0%
    Signal-to-Noise Ratio≥75dB
    Operating Temperature-20°C to +60°C
    Dimensions176×170×255mm
    Net Weight2.3kg
    Donwload
    FP6-P5340
