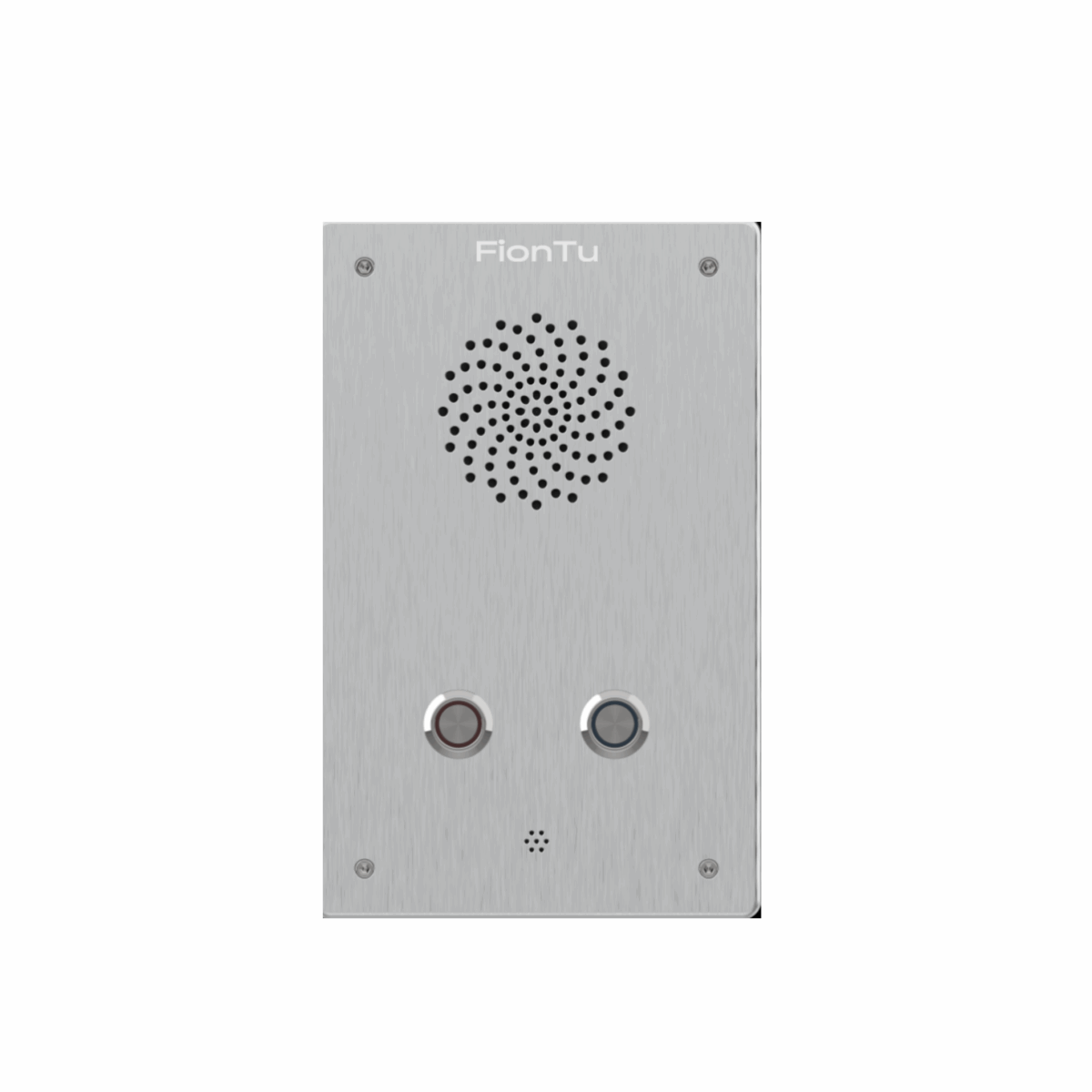

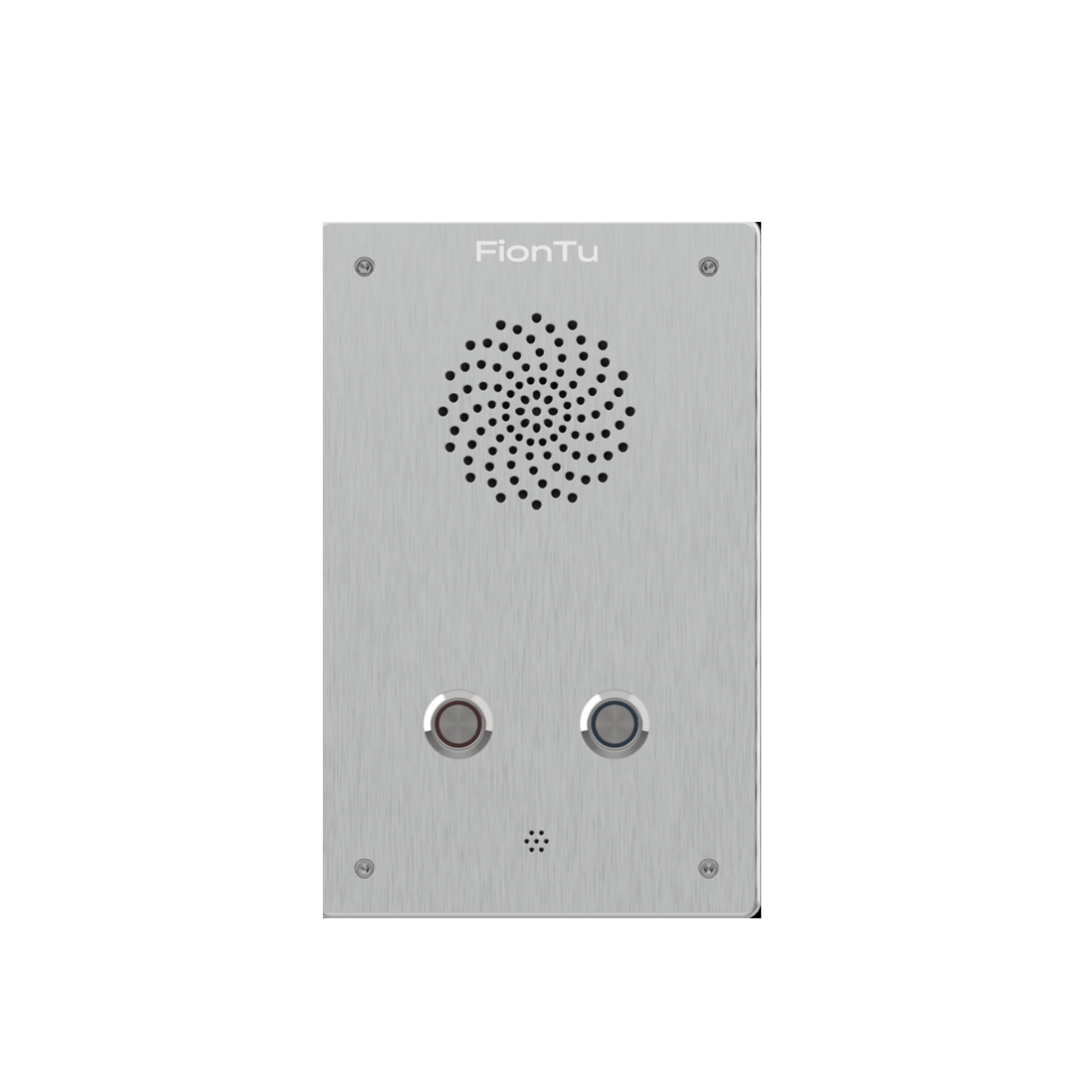

Network intercom terminal FP6-D3220S

A high-grade brushed aluminum alloy intercom device with HD voice, full-duplex communication, and emergency control features. It supports SIP protocol, remote control, and operates reliably in harsh environments.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Crafted from a high-grade brushed aluminum alloy panel with a stylish, damage-resistant, and waterproof construction
  • Features one-touch assistance and one-touch service consultation functions, with indicator lights for clear operational status. Service consultation information is configured on the network host and automatically backed up to local storage, making it easy for users to understand the details of the service being handled
  • Built-in high-fidelity, highly directional condenser microphone
  • Built-in 3W monitoring speaker for excellent voice clarity
  • Features one-touch assistance and an indicator light for clear operational status
  • User-configurable functions include speed dial, intercom, answer, and hang up
  • Supports two-way, full-duplex HD intercom. Supports full-duplex acoustic echo cancellation and acoustic echo suppression (AEC); automatic recording during intercom calls
  • Supports standard SIP communication protocol
  • Supports one short-circuit signal input, which can be connected to peripherals such as infrared sensors, door sensors, vibration sensors, and emergency buttons to trigger alarms or output linkage
  • Supports one short-circuit signal output, which can be connected to control devices such as alarm lights, door locks, and network cameras. It supports remote DTMF, remote server control commands, or single short-circuit input linkage control
  • One AUXIN for connecting external local audio sources
  • One AUXOUT for external active speaker output, providing speaker amplification (HD quality). The default setting is automatic broadcast amplification, which can be disabled
  • Supports one-way ambient monitoring for monitoring background sounds
  • Supports automatic forwarding of unanswered calls to any intercom terminal
  • Supports server-free intercom: Direct dialing to an IP address within the LAN without a server
  • Supports one EMC emergency 24V output
  • Supports mobile phone dialing for cross-network calling anytime, anywhere, allowing users to page on-site at any time
  • The device is dustproof and waterproof, and can operate 24 hours a day in both low and high temperature environments, ensuring stability and reliability
  • Supports both POE and external 24V DC power supply
  • 10/100Mbps Ethernet connection, supporting LAN and WAN
    • Parameter
    AUXIN sensitivity300mV
    AUXOUT sensitivity1V
    Amplifier Output2 x 20W, 4 ohms
    Power SupplyDC 24V
    Network InterfaceStandard RJ45 Input
    Transmission Rate100Mbps
    Supported ProtocolsTCP, UDP, IGMP, ICMP, RS485
    Power InputAC 100-240V, 50Hz/60Hz
    Operating Temperature-20°C to +70°C
    Dimensions115 × 40 × 180mm
    Net Weight0.8kg
    Donwload
    FP6-D3220S
