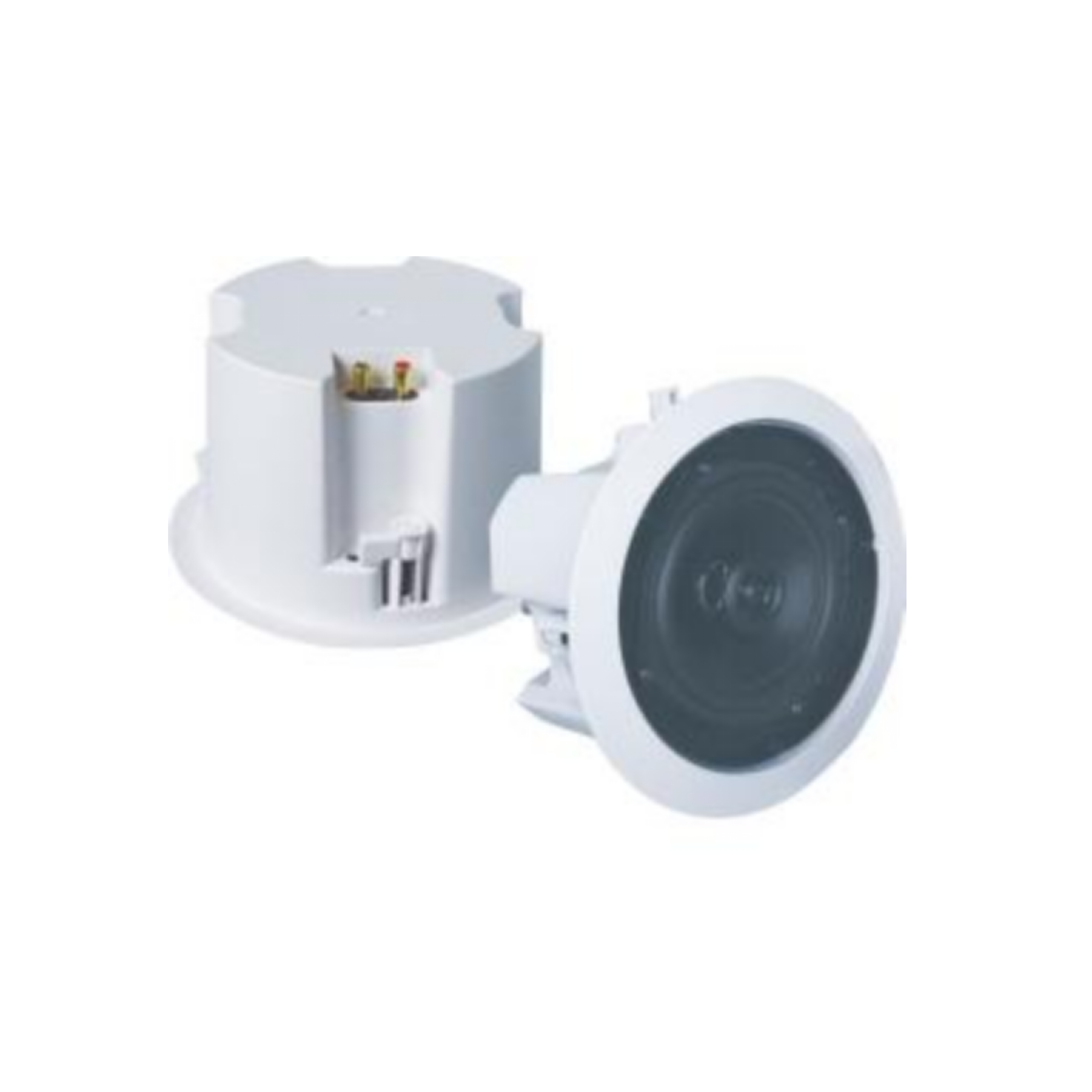

Network ceiling speakers FP6-P7630

The network ABS coaxial ceiling is a fully digital signal processor based on TCP/IP, offering high-fidelity audio with built-in amplifiers and emergency paging capabilities. It supports DHCP, static IP, and SIP protocols for reliable network communication, and features automatic standby mode for energy savings.
Categories:
Get Quote
Category Tags , , , ,
Description
  • The network ABS coaxial ceiling is a fully digital analog-to-digital signal processor based on the TCP/IP transmission protocol. Intelligently controlled by the main control system, it can play background programs, emergency paging, alarm signals, and more from the main control system
  • Fully digital design, high fidelity, and high voice transmission index
  • Built-in 2 x 30W high-quality digital amplifiers, compatible with external sub-speakers, and low power consumption
  • Highly reliable design with a long lifespan, mean time between failures (MTBF) > 100,000 hours
  • Features overvoltage, overheating, and short-circuit protection
  • Supports offline playback, built-in 4GB storage, built-in offline local scheduled playback, and automatic backup of scheduled programs to an SD card
  • Professional DSP audio processing chip with 10-band parametric equalization for high-fidelity CD-quality sound
  • Can receive emergency paging calls independently of the server, with volume automatically adjusted to the set value
  • Supports custom terminal priority settings
  • Supports DHCP and static IP network modes; supports AUTO IP function: If no IP address is obtained in DHCP mode, it automatically switches to a temporary IP address
  • Supports automatic standby mode for energy saving when no music signal (including local audio signal) is present
  • Supports SIP standard communication protocol
    • Parameter
    Network interfaceStandard RJ45 input
    Power inputDC24V/2A/24V
    Transmission rate100Mbps
    Supported protocolsTCP/IP, UDP, and SIP standard communication protocol
    Audio formatMP3
    Audio mode16-bit CD quality
    Sampling rate8kHz to 48kHz
    Rated power30W
    Speaker unit6.5×1+0.75×1
    Sensitivity (1m, 1W)92dB
    MIC sensitivity10mV
    Frequency response90-20kHz
    Cutout size200mm
    Operating temperature-20°C to +60°C
    Product DimensionsΦ208 x 130mm
    Net Weight1.6kg
    Donwload
    FP6-P7630
