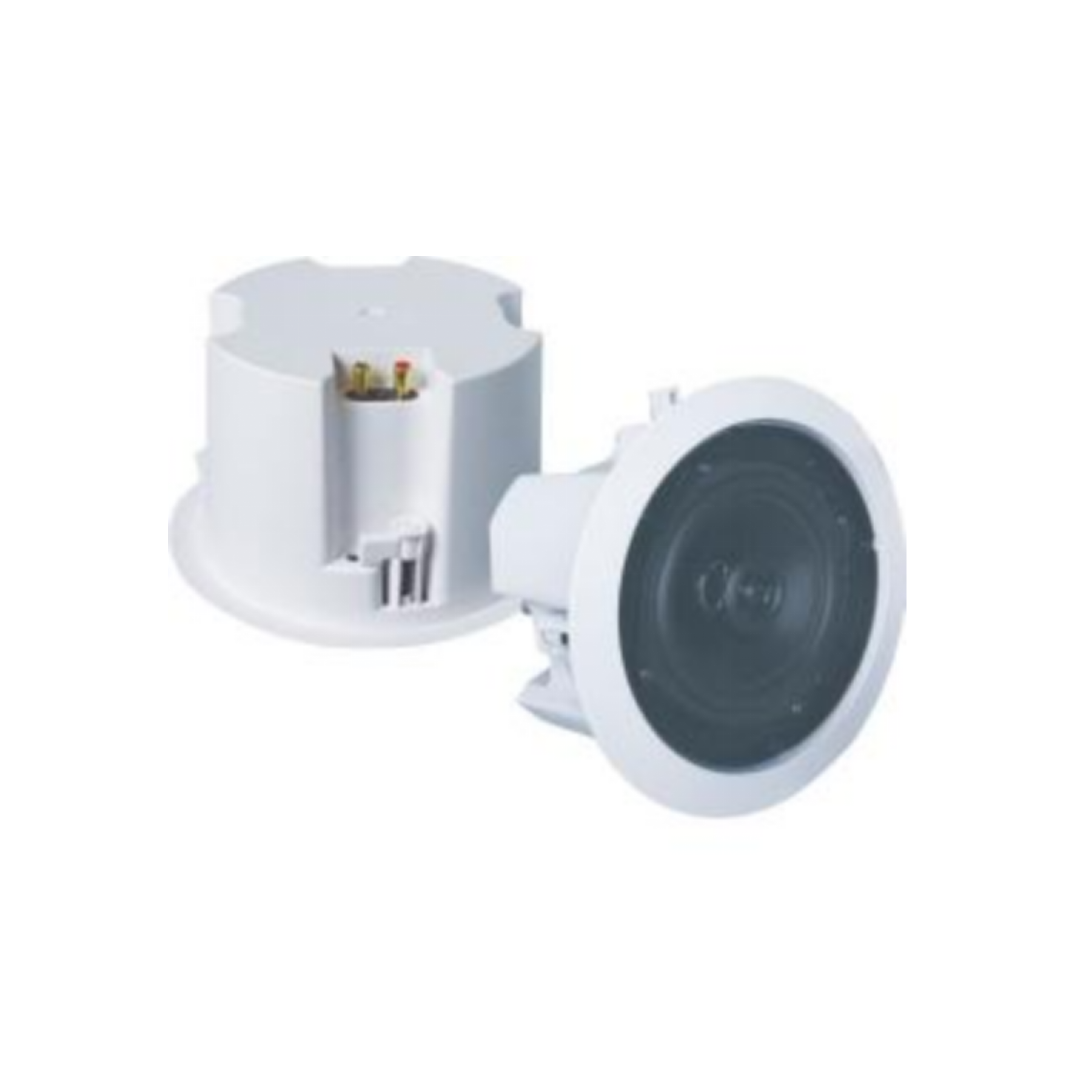

Network ceiling speakers FP6-P7520P

The network ABS coaxial ceiling is a fully digital audio processor with high fidelity, supporting TCP/IP and SIP protocols for intelligent control of background music, emergency paging, and local playback. It features built-in amplifiers, reliable performance, and energy-saving modes.
Categories:
Get Quote
Category Tags , , , ,
Description
Network interfaceStandard RJ45 input
Power inputDC24V/2A / POE 12V/24V
Transmission rate100Mbps
Supported protocolsTCP/IP, UDP, and SIP standard communication protocol
Audio formatMP3
Audio mode16-bit CD quality
Sampling rate8kHz to 48kHz
Rated power20W
Speaker unit5×1+0.75×1
Sensitivity (1m, 1W)92dB
MIC sensitivity10mV
Frequency response90-20kHz
Cutout size180mm
Operating temperature-20°C to +60°C
Product DimensionsΦ208 x 130mm
Net Weight1.6kg
Parameter
Specification:
  • The network ABS coaxial ceiling is a fully digital analog-to-digital signal processor based on the TCP/IP transmission protocol. Intelligently controlled by the main control system, it can play background programs, emergency paging, alarm signals, and more from the main control system
  • Fully digital design, high fidelity, and high voice transmission index
  • Built-in 2 x 20W high-quality digital amplifiers, compatible with external sub-speakers, and low power consumption
  • Highly reliable design with a long lifespan, mean time between failures (MTBF) > 100,000 hours
  • Features overvoltage, overheating, and short-circuit protection
  • Supports offline playback, built-in 4GB storage, built-in offline local scheduled playback, and automatic backup of scheduled programs to an SD card
  • Professional DSP audio processing chip with 10-band parametric equalization for high-fidelity CD-quality sound
  • Can receive emergency paging calls independently of the server, with volume automatically adjusted to the set value
  • Supports custom terminal priority settings
  • Supports DHCP and static IP network modes; supports AUTO IP function: If no IP address is obtained in DHCP mode, it automatically switches to a temporary IP address
  • Supports automatic standby mode for energy saving when no music signal (including local audio signal) is present
  • Supports SIP standard communication protocol
    • Donwload
    FP6-P7520P
