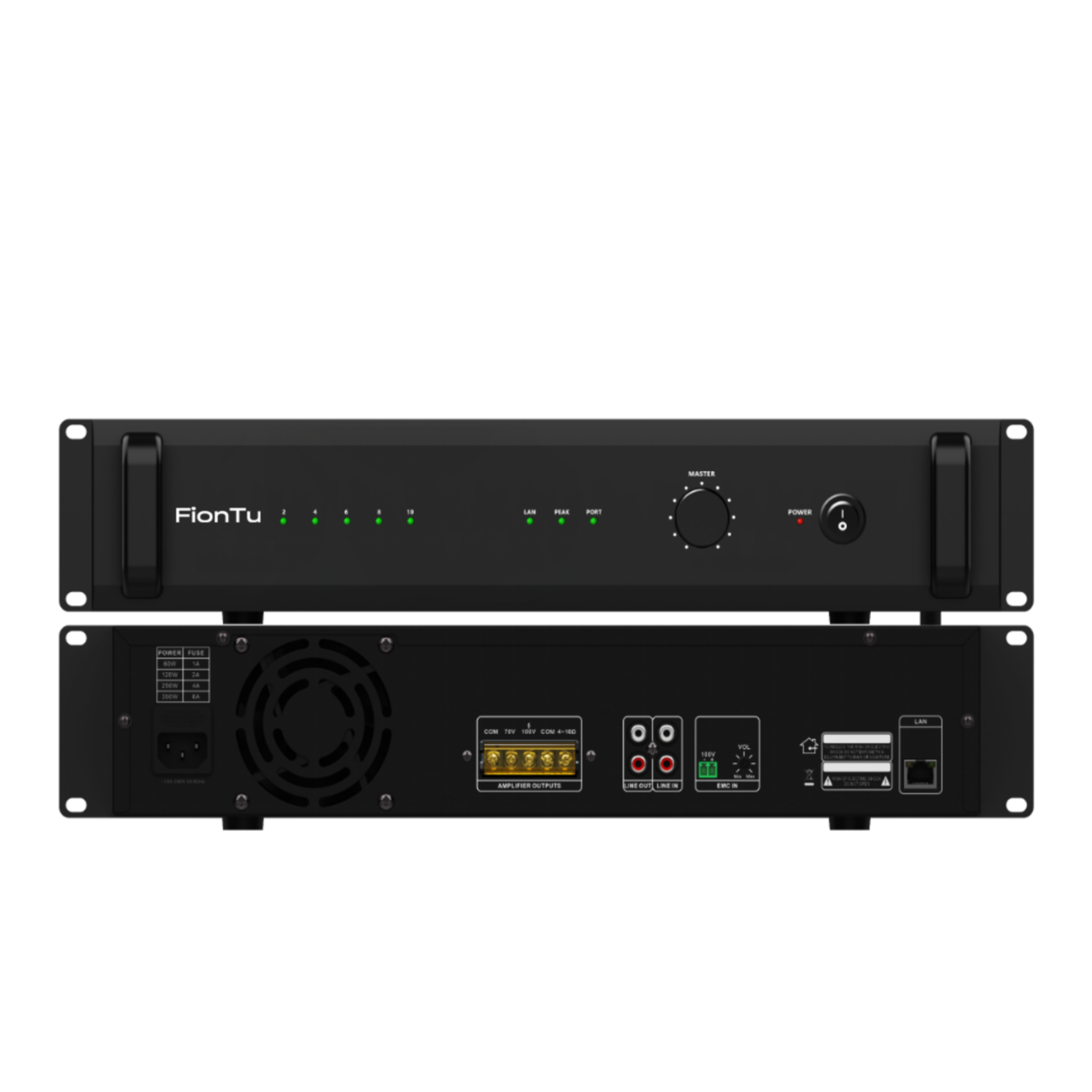

Internet radio amplifier FP6-P92608

High-grade aluminum alloy construction, supports 70V/100V output with built-in DSP for enhanced audio processing, and features energy-efficient digital amplifier.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Made of high-grade 2U aluminum alloy frosted panel
  • Can be mounted anywhere within network reach, using proprietary network transmission protocols and dynamic audio data transmission
  • Comes standard with one 10/100M port RJ45 network port supports LAN and WAN
  • Network playback function plays program sources sent from a networked host or audio streams from a networked audio collector
  • Plays background music, emergency paging, alarm signals, and other content from the system host. Network program sources feature over seven levels of priority management, divided into three categories: background broadcast, business broadcast, and emergency broadcast
  • A high-fidelity CD-quality decoding chip supports decoding of MP3/WMA/WAV/PCM audio streams with a maximum sampling rate of 48kHz and 16-bit
  • Seven status indicators on the front panel provide easy-to-understand operating status
  • A stepless front-panel volume control knob facilitates local volume adjustment
  • One AUX input and one AUX output on the rear panel facilitate expansion of local audio sources and local power expansion
  • An external 100V power supply on the rear panel. EMC input with priority management and adjustable mute level
  • Automatic standby mode for energy-saving operation when no music signal (including local audio) is present
  • Built-in high-efficiency digital amplifier with 70V/100V constant-voltage output and 4-16Ω constant-resistance output, achieving over 90% efficiency
  • Built-in DSP audio processing chip further enhances broadcast performance
  • Designed with overvoltage, overheating, and short-circuit protection features
    • Parameter
    NetworkRJ45 (10/100M)
    Rated output power80W
    Audio input sensitivity300mV
    Audio output sensitivity1.0V
    EMC input100V
    Frequency response80Hz-16kHz
    Distortion≤1.0%
    Signal-to-noise ratio≥75dB
    Operating temperature-20°C to +60°C
    Product Dimensions482 × 300 × 88 mm
    Net Weight5.2 kg
    Donwload
    FP6-P92608
