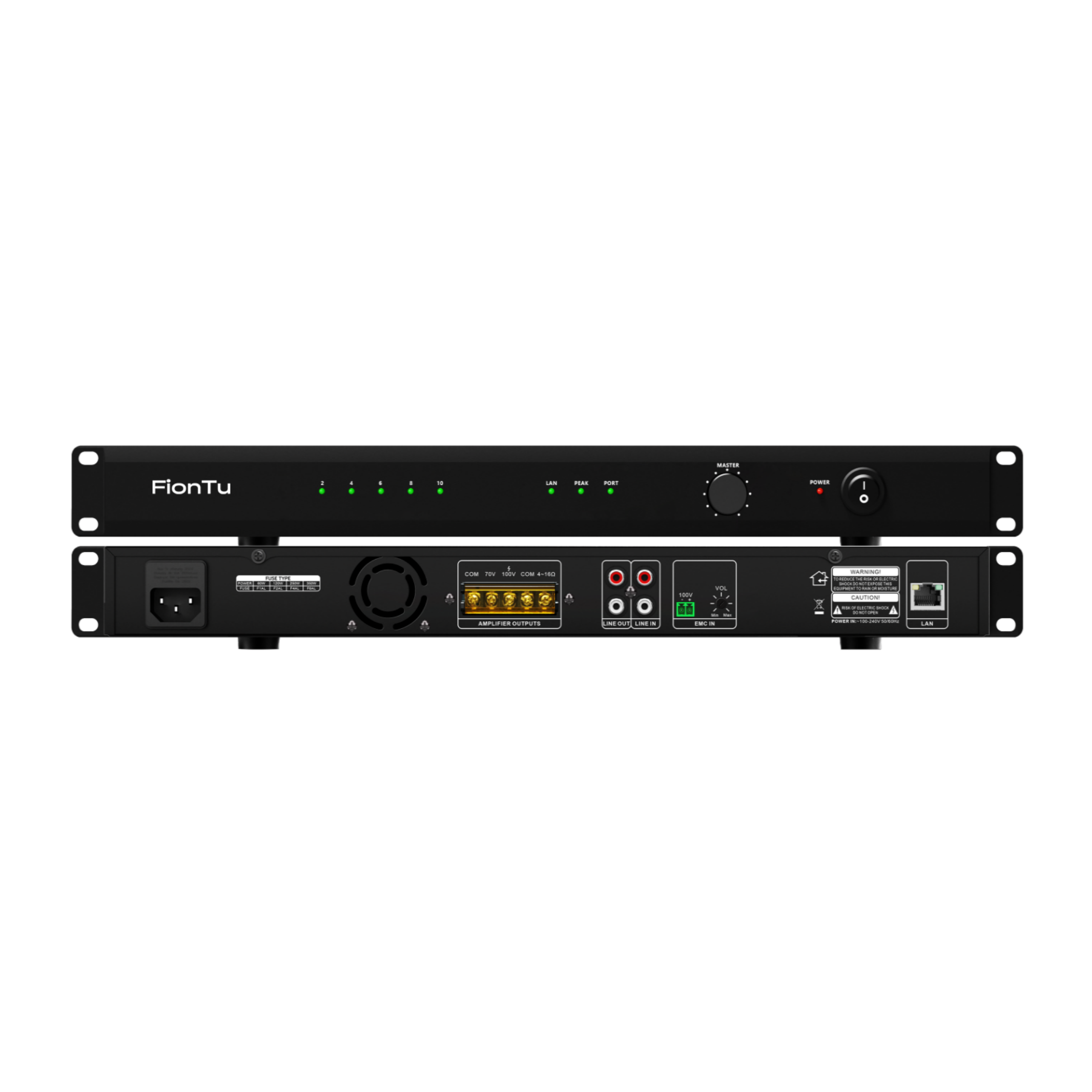

Internet radio amplifier FP6-P8212

This professional audio processor features high-fidelity sound with a DSP chip, supports network transmission for dynamic audio playback, and includes multiple inputs/output options for versatile connectivity. It also boasts an efficient 120W power amplifier with advanced protection features and automatic standby mode for energy savings.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Made of high-grade 1U aluminum alloy frosted panel
  • Can be mounted anywhere the network reaches. Utilizes a proprietary network transmission protocol for dynamic audio data transmission
  • Network playback function, capable of playing program sources sent from a networked host or audio streams from a networked audio collector
  • Supports playback of background music, emergency paging, alarm signals, and more from the system host. Network program sources feature over seven levels of priority management, divided into three categories: background broadcast, business broadcast, and emergency broadcast
  • Supports customizable terminal priority settings
  • Supports offline playback, built-in 4GB storage, built-in offline local scheduled playback, and automatic backup of scheduled programs to an SD card
  • Professional DSP audio processing chip, supports 10-band parametric equalization, and delivers high-fidelity CD-quality sound
  • Utilizes a high-fidelity CD-quality decoding chip, supporting 16-bit MP3/WMA/WAV/PCM audio streams with a maximum sampling rate of 48kHz
  • Features a 1.9-inch display that displays the IP address, AUX IN, and AUX OUT, MIC, spectrum, and other information
  • Four adjustment buttons and a directional knob for setting IP address, AUX IN, MIC 1/2, and other information
  • Three integrated status indicators on the panel provide clear operating status: one for network connection status, one for signal status, and one for power
  • Front panel USB port supports MP3/WMA/WAV/PCM audio stream data decoding
  • Rear external AUX IN input and one AUX OUT line outputs facilitate expansion of local audio sources and local power expansion
  • Two external local MIC inputs on the rear panel facilitate expansion of local microphones
  • External DC24V output with forced cutoff on the rear panel
  • Automatic standby mode for energy saving when no music signal (including local audio signal) is present
  • Built-in high-efficiency digital amplifier with 70V/100V constant-voltage output and 4-16Ω constant-resistance output, achieving over 90% efficiency
  • Overvoltage, overheating, and short-circuit protection features
  • Supports SIP standard communication protocol
    • Parameter
    Network InterfaceStandard RJ45 input
    Transmission Rate100Mbps
    Supported ProtocolsTCP/IP, UDP, and SIP standard communication protocol
    Audio FormatMP3
    Audio Mode16-bit CD quality
    Sampling Rate8kHz to 48kHz
    Amplifier Rated Power120W
    Audio Input Sensitivity0-1.0V
    Audio Output Sensitivity1.0V
    EMC Input Sensitivity100V
    MIC 1/2 Sensitivity0-30mV
    Frequency Response80Hz~16kHz
    Distortion≤1.0%
    Signal-to-Noise Ratio≥75dB
    Operating Temperature-20°C to +60°C
    Dimensions482×300×44mm
    Net Weight3.6kg
    Donwload
    FP6-P8212
