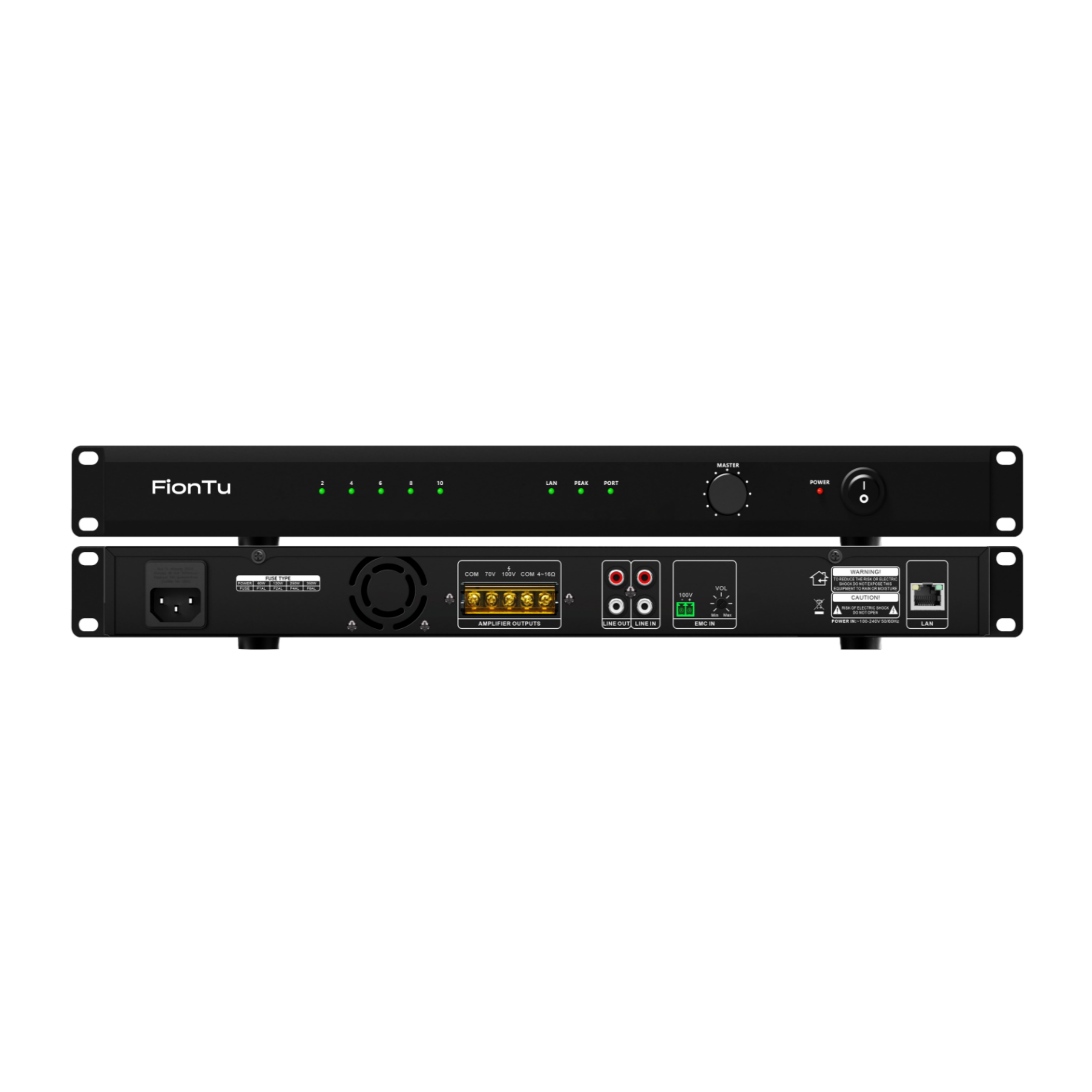

Internet radio amplifier FP6-P8108

High-grade aluminum alloy design, network-enabled audio transmission with priority management, and advanced DSP sound processing for high-fidelity playback.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Made of a high-grade 1U aluminum alloy frosted panel
  • Mountable anywhere within the network, utilizing the network's proprietary transmission protocol for dynamic audio data transmission
  • Standardly equipped with one 10/100M RJ45 network port, supporting both LAN and WAN
  • Network playback function, capable of playing program sources sent from a networked host or audio streams from a networked audio collector
  • Capable of playing background music, emergency paging, alarm signals, and other signals from the system host. Network program sources feature over seven levels of priority management, divided into three categories: background broadcast, business broadcast, and emergency broadcast
  • Supports customizable terminal priority settings
  • Supports offline playback, built-in 4GB storage, built-in offline local scheduled playback, and automatic backup of scheduled programs to an SD card
  • Professional DSP sound processing chip, supporting 10-band parametric equalizer High-fidelity CD sound quality
  • Utilizes a high-fidelity CD-quality decoding chip, supporting 16-bit MP3/WMA/WAV/PCM audio streams with a maximum sampling rate of 48kHz
  • Nine integrated front panel status indicators provide clear operating status: one for network connection, five for signal status, one for short-circuit protection, one for over-temperature protection, and one for power
  • Front panel adjustment knob for convenient local volume control
  • One AUX input and one AUX output on the rear panel facilitate expansion of local audio sources and local power expansion
  • External 100V power adapter on the rear panel. EMC input with priority management and adjustable mute level
  • Priority management and adjustable mute level
  • Automatic standby mode for energy saving when no music signal (including local audio signal) is present
  • Built-in high-efficiency digital amplifier with 70V/100V constant-voltage output and 4-16Ω constant-resistance output, achieving over 90% efficiency
  • Overvoltage, overheating, and short-circuit protection features
  • Supports SIP standard communication protocol
    • Parameter
    Network InterfaceStandard RJ45 Input
    Transmission Rate100Mbps
    Supported ProtocolsTCP/IP, UDP, and SIP standard communication protocol
    Audio FormatMP3
    Audio Mode16-bit CD Quality
    Sampling Rate8kHz to 48kHz
    Amplifier Rated Power80W
    Audio Input Sensitivity300mV
    Audio Output Sensitivity1.0V
    EMC Input100V
    Frequency Response80Hz-16kHz
    Distortion≤1.0%
    Signal-to-Noise Ratio≥75dB
    Operating Temperature-20°C to +60°C
    Dimensions482 × 300 × 44mm
    Net Weight3.0kg
    Donwload
    FP6-P8108
