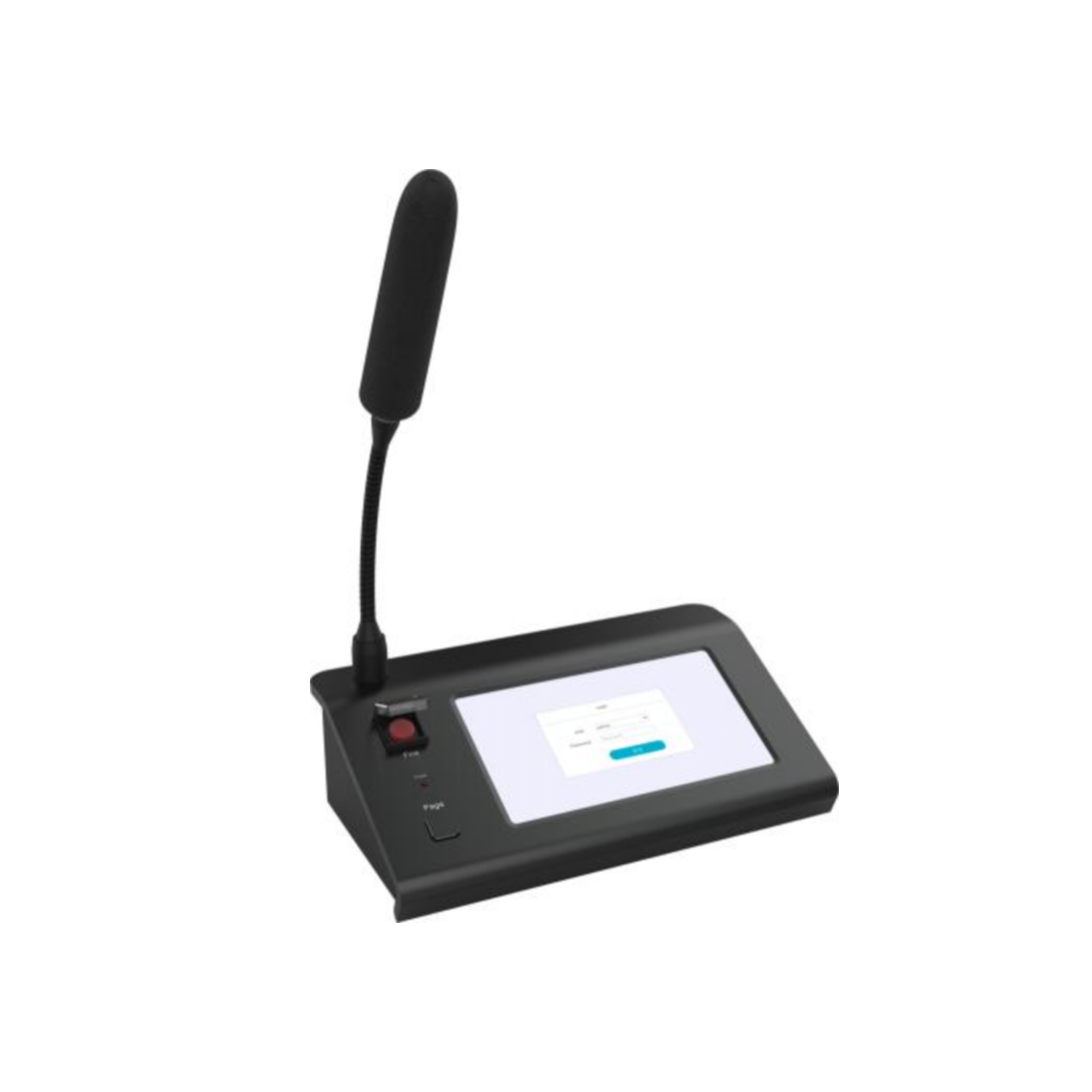

Internet broadcast paging microphone FP6-P2702S

A professional desktop network paging microphone with high-fidelity audio, durable aluminum alloy design, and advanced networking features including SIP, VoIP, and PoE support.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Professional desktop network paging microphone, durable and rugged, with a high-grade aluminum alloy panel and an all-metal body
  • High-fidelity gooseneck hose microphone input, with a red indicator automatically lighting up when the microphone is on
  • 7IPS high-definition display with a 170° wide viewing angle for unobstructed viewing
  • Capacitive touch technology for responsive operation and easy interaction
  • Graphical interface with clear information display and simple and convenient operation
  • Supports zone, group, and global broadcasting
  • On-demand control of zone/group/global program sources
  • Supports SIP protocol, intercom with VOIP network calls, and VOIP network call paging playback terminals
  • Supports Supports multiple song selection mode
  • Supports on-demand music file reading from USB flash drives
  • Supports paging station as a zone terminal and can be configured as a monitoring speaker
  • Supports RS485 communication protocol
  • Supports broadcasting even when the server is disconnected from the network
  • Enables network paging, and the MIC has a manual on/off mute function
  • Supports TCP, UDP, IGMP, ICMP, and other network protocols
  • Built-in professional DSP howling suppression module
  • Emergency one-touch paging button with a protective cover to prevent accidental operation
  • The MIC has an automatic shutoff function when there is no sound input, and the auto-off time can be set
  • Built-in 3W full-range high-fidelity speaker, For monitoring and intercom
  • Supports background audio, with automatic voice priority
  • Supports PoE power, compliant with IEEE802.3af
  • One-channel 3.5mm headphone line input, supports mono or stereo input, and has capture and playback capabilities
  • One-channel 3.5mm headphone line output, supports external power amplifier
  • One-channel 3.5mm headphone mic input
  • One-channel short-circuit input
  • One-channel short-circuit output
  • Standard RJ45 network port, supports LAN and WAN
  • Built-in server function, no additional server configuration required
    • Parameter
    Input sensitivity300mV
    Frequency20Hz-2 0kHz
    Output Amplitude1.0±0.1V
    Frequency Response20Hz-20kHz
    Distortion≤0.1%
    Signal-to-Noise Ratio≥90dB
    Input Sensitivity40±mV
    Distortion≤0.5%
    Effective Gain Limit Frequency Range (±3dB)80Hz-4kHz
    Signal-to-Noise Ratio (30kHz Low-Pass)≥75dB
    Network PortRJ45 (10/100)
    Audio Input3.5mm headphone jack
    Audio Output3.5mm headphone jack
    MIC Input3.5mm headphone jack
    InterfaceUSB Port: *1 RS485 communication port*1
    Short circuitShort circuit input*1, Short circuit output*1
    Input powerDC 12V 1A
    Operating temperature-20°C to +60°C
    Dimensions225 × 137 × 66mm
    Net weight0.8kg
    Donwload
    FP6-P2702S
