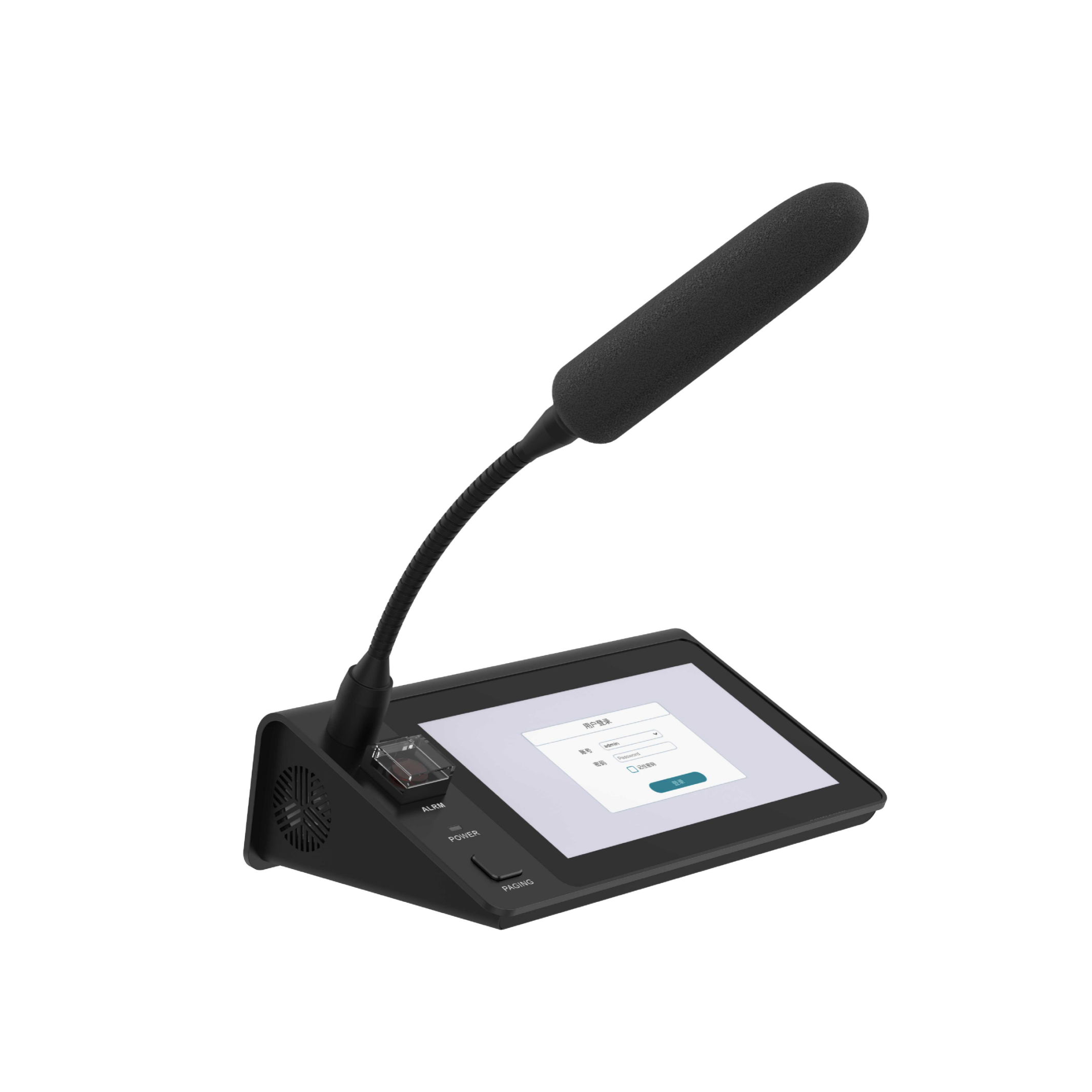

Internet broadcast paging microphone FP6-P2701

This professional network paging microphone features high-fidelity audio, advanced DSP anti-aliasing technology, and comprehensive networking capabilities including SIP protocol support. It offers versatile broadcasting modes, emergency functions, and robust construction for reliable performance in demanding environments.
Categories:
Get Quote
Category Tags , , , ,
Description
Parameter
Input sensitivity300mV
Frequency20Hz-20kHz
Output Amplitude1.0 ± 0.1 V
Frequency Response20 Hz - 20 kHz
Distortion≤ 0.1%
Signal-to-Noise Ratio≥ 90 dB
Input Sensitivity40 ± mV
Distortion≤ 0.5%
Effective Gain Limit Frequency Range (± 3 dB)80 Hz - 4 kHz
Signal-to-Noise Ratio (30 kHz Low Pass)≥ 75 dB
Network PortRJ45 (10/100)
Audio Input3.5 mm headphone jack
Audio Output3.5 mm headphone jack
MIC Input3.5 mm headphone jack
PortsUSB Port: *1 RS485 communication port*1
Short circuitShort circuit input*1, Short circuit output*1
Input powerDC12V1A
Operating temperature-20°C to +60°C
Dimensions225 × 137 × 66 mm
Net weight0.8 kg
Donwload
FP6-P2701
