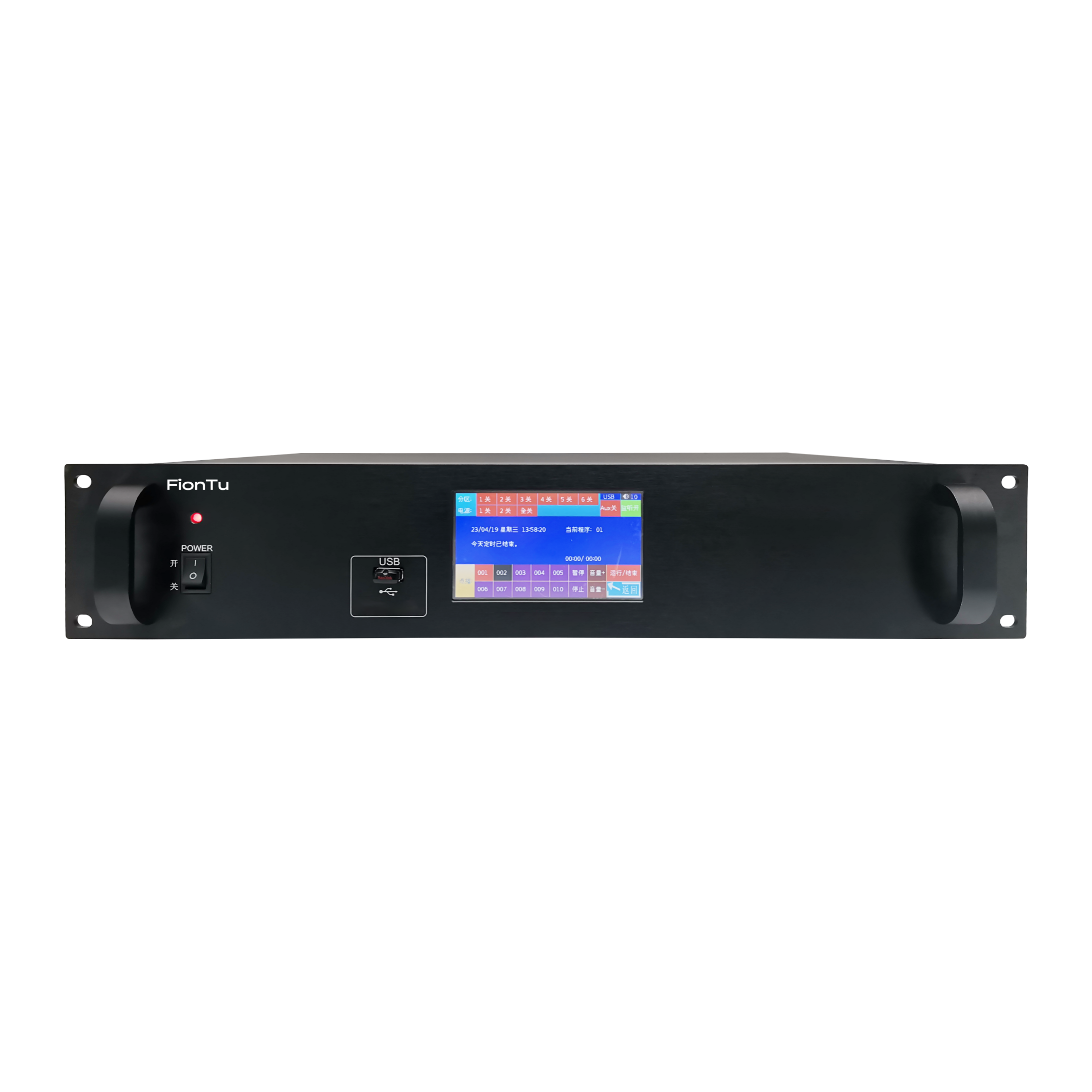

Intelligent programming host FP4-C9800M

- A microcomputer-controlled music broadcasting system for schools, military units, and公共场所, offering automatic scheduling, multi-zone control, and emergency alarm functions. - Supports various audio formats, remote firmware upgrades, and features a 5-inch touchscreen interface with PC programming capabilities.
Categories:
Get Quote
Category Tags , , , ,
Description
  • 5-inch TFT true color display with a graphical interface and full touchscreen operation
  • Includes PC programming software, allowing users to edit schedules and change music via a USB flash drive
  • Includes 16GB of internal memory
  • Song title display in Chinese, touchscreen playback, one-click playback, and power management
  • Supports both PC and host manual programming
  • Supports 10 programs, each with 999 programmable timing points
  • Supports lossless and various decoding formats: MP3, MP2, MP1, WMA, APE, FLAC, AC3, DTS, PA, AAC, AMR, ATRC, and WAV 8.Supports automatic music sorting function, no dedicated numbering software required. 9.Supports setting different volume levels for each scheduled music track. 10.Allows setting the external control power to remain on after the task is completed. 11.Features FM radio function with full-band automatic station search, automatic saving, manual quick saving, and multiple modes. 12.Fire protection function: triggers automatic alarm and fire short-circuit output when a short circuit occurs or a DC 12-24V signal is input. 13.1 local microphone input, 1 line input, and 2 audio outputs. 14.The microphone voice muting level can be set, and the microphone zone power trigger activation can be configured. 15.Equipped with a monitoring function, and the monitoring volume is adjustable. 16.Has a remote upgrade function, and firmware can be upgraded using a TF card. 17.Comes with 6 zones and 2 power channels. 18.Allows setting the advance turn-on time for zones and power. 19.Provides a fast music playback experience; features playback icons and an interface consistent with mainstream playback software such as Kugou. 20.2U chassis, aluminum alloy panel, and standard body.
    • Parameter
    Music StorageSD Card/USB Drive
    USB Drive File SystemFAT (FAT16), FAT32
    Supported SD Card/USB Drive Capacity128MB-32GB
    Supported Playback File FormatsMP3, MP2, MP1, WMA, APE, FLAC, AC3, DTS, PA, AAC, AMR, ATRC, WAV
    Audio Signal Electrical Parameters
    Signal-to-Noise Ratio>90dB
    Total Harmonic Distortion<0.1%
    Audio Signal Input<0.1%
    Power Supply VoltageAC220V±10%
    Power ConsumptionStandby <5W, Full Load <10W
    Amplifier Control PowerSingle Channel <1000W
    Peripheral Control PowerSingle Channel <300W
    Zone Control PowerSingle Channel <300W
    Weight4.7KG
    Dimensions480*320*90MM
    Donwload
    FP4-C9800M
