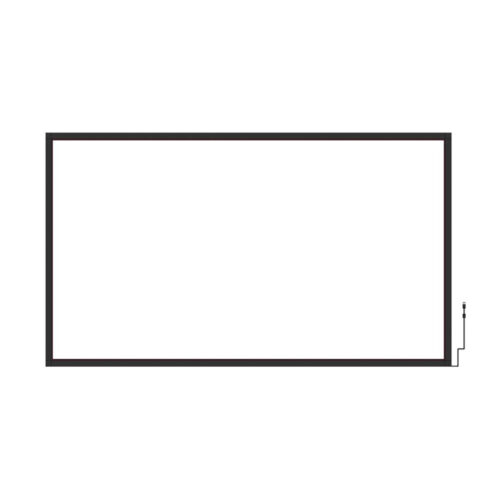

Infrared Touch Frame FT-HW001

This touch frame features 3D light source scanning with 10-point touch, IP65 waterproof aluminum design, 4096×4096 resolution, high durability, and wide OS compatibility. Supports multi-screen, driver-free use, and harsh environments.
Categories:
Get Quote
Category
Description
  • Touch Technology: 3D light source scanning multi-point touch technology
  • Touch Points: Default 10-point touch
  • Supported Sizes: Custom sizes available on request
  • Frame Material and Design: Material: 0603 national standard pure aluminum with high-end brushed black finish. Wide profile: Frame width 27mm, thickness 13.6mm. Front-maintenance design for easy installation and service. Waterproof rating up to IP65.
  • Independent Touch Zones: Supports simultaneous independent touch zones in multi-screen signal source displays without cross-interference (ideal for LCD splicing with multiple PCs)
  • Touch Physical Resolution: 4096 × 4096
  • Report Resolution: 32768 × 32768
  • Cursor Speed: ≥125 dots/sec
  • Transmission Speed: 12 Mbit/s
  • Scan Rate: 50 frames/sec
  • Driver: Driver-free, plug and play
  • Minimum Touch Object Size: 1.5 mm × 1.5 mm
  • Touch Accuracy: ±1.5 mm
  • Initial Response Time: ≤8 ms
  • Transparency: ≥96% (100% without glass)
  • Brightness: ≥350 cd/m²
  • Touch Method: Finger, gloved hand, stylus (non-capacitive), or any opaque object
  • Touch Pressure: Zero pressure required
  • Touch Durability: Equivalent to 200 million touches at the same point as capacitive screens
  • Object Shape Recognition: Supported
  • Sensor Lifespan: Single sensor: ≥5000 hours; Whole system (interval use): ≥1,000,000 hours in power-saving mode
  • Surface Hardness: Mohs level 7, resists 1kg steel ball drop from 1 meter without shattering (per GB9963-1988 & IEC-60950-1999). Shattered pieces are non-hazardous.
  • MTBF: ≥5000 hours
  • Operating Systems: Windows XP/7/8/10, Linux, Android, Ubuntu, MAC
  • Software Interface Protocols: Adobe Flash (TCP mode), Windows 7 Multitouch HID, SDK packages, Titouch serial protocol

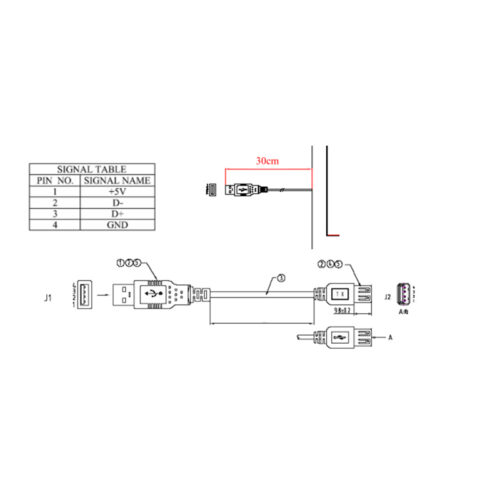

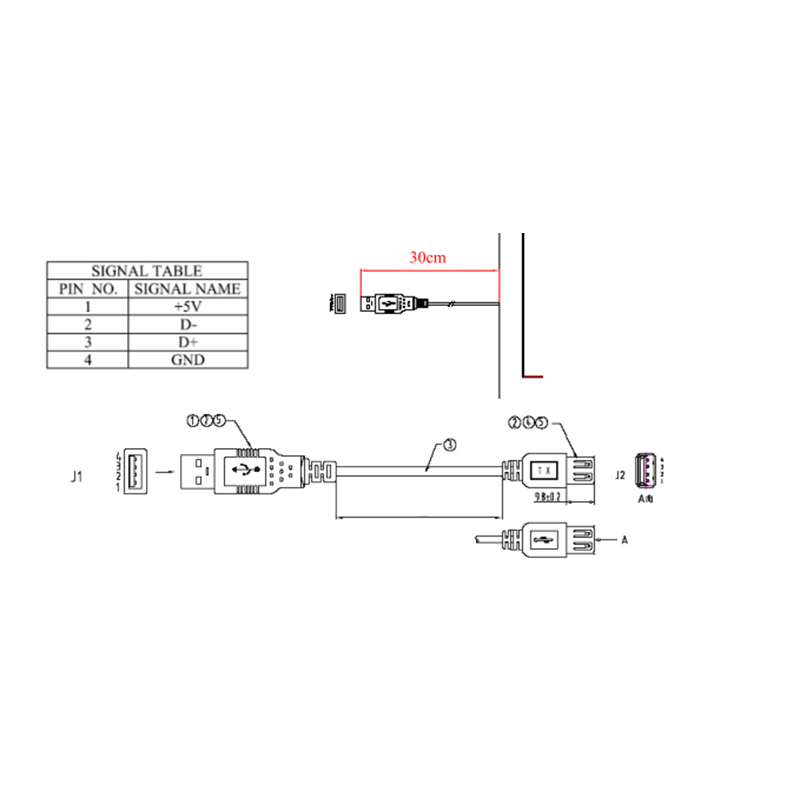

  • Interface: USB 2.0 HID mode
  • Operating Temperature: -10°C ~ 60°C
  • Storage Temperature: -40°C ~ 85°C
  • Operating Humidity: 10% ~ 90% RH (non-condensing)
  • Storage Humidity: 10% ~ 95% RH (non-condensing)

Parameter
  • Operating Voltage: USB powered 5.0V (internal voltage 3.3V)
  • Average Current: <200 mA (varies by size)
  • Power Consumption: 1W
  • Maximum Current: <350 mA
  • Sleep Current: <10 mA
  • Electrical Design Standards: Complies with GB4943.1-2011 safety standards including: markings, electric shock & energy hazard protection, SELV circuits, grounding, clearance & creepage, contact current, dielectric strength, and abnormal/fault conditions
  • ESD Protection: EN61000-4-2 Level 4 (15kV air / 8kV contact)
  • System Sealing: Control system fully embedded within the touch frame, compliant with NEMA 4 standard
  • Waterproof: Meets NEMA 4 standards; no adjustment required during maintenance
  • Fire Resistance: Complies with UL-94HB standard
  • Environmental Resistance: Dustproof, anti-static, anti-shock; supports multi-touch with up to 20% sensor failure
  • Interference Resistance: No static interference or drift
  • Temperature Shock Tolerance: -40°C (1 hr) to 85°C (1 hr), 50 cycles, 2°C/min rate

Donwload
FT-HW001
