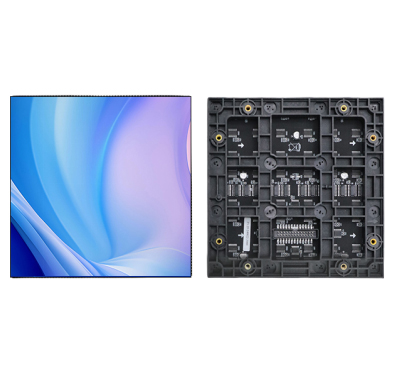

Name: Indoor LED full-color display flexible screen (GOB) GPS125-JA
Availability: InStock

Indoor LED full-color display flexible screen (GOB) GPS125-JA

High-resolution LED display module with 256x128 pixels, wide viewing angles of 170°, and customizable installation for curved surfaces.

Lamp beads	SMD/1010
Scanning method	64S
Pixel pitch	1.25mm
Pixel structure	1R1G1B
Pixel density	640000/㎡
Module resolution	256 (W) * 128 (H)
Module size	320mm * 160mm
Box size	Simple box is customized according to the curvature and size of the site
Module display	Front-side GOB Process Treatment
Main parameters
Visible viewing distance	≥1 .25m
Horizontal viewing angle	≥170° Vertical viewing angle: ≥170°
Color temperature	1000K-10000K adjustable
Flatness of the entire screen	≤0.1mm
Yes	Single point brightness and color correction
Brightness uniformity	≥99%
White balance brightness	≥500cd/㎡
Design	De-blanking drive protection circuit and high grayscale high refresh design
Contrast	≥10000:1
Refresh rate	≥3840Hz
Frame change Frequency	≥60HZ
Grayscale	65536
Drive mode	constant current
Control mode 1	synchronous
Control distance	network cable: 100 meters, optical fiber: 10 kilometers
Signal interface	RJ45 interface
Brightness adjustment range	0 to 100 stepless adjustment
Continuous working time	≥72 hours
Typical lifespan	100,000 hours
Protection level	IP5X, display front IP65
Safety Installation method	Customized simple box fixed installation
Electrical parameters
Working voltage	DC: 4.2-5V
Power supply requirements	AC: 220×(1±10%)V, 50×(1±5%)Hz
Maximum power consumption	≤650W/㎡
Average power consumption	≤228W/㎡
Environmental parameters
Storage temperature range	-20℃ to 60℃
Working temperature range	-20℃ to 50℃
Working humidity range	10%-80%RH without condensation
