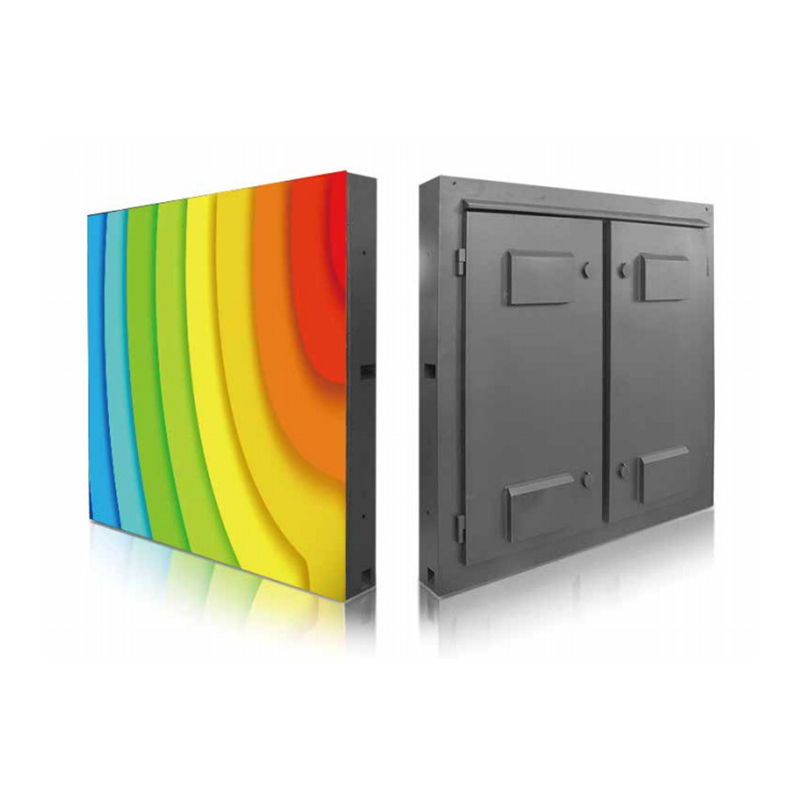

Indoor full color LED display SP153-YAT
The LED display features SMD 1212 pixels, high resolution (416x312), and wide viewing angles (≥170° horizontal/vertical).
Categories: Dammam LED Screen Series
- Sorry, this product cannot be purchased.
Description
Parameter
| Lamp beads | SMD/1212 |
| Scanning method | 52S |
| Pixel pitch | 1.53mm |
| Pixel structure | 1R1G1B |
| Pixel density | 427186/m2 |
| Module resolution | 208 (W) * 104 (H) |
| Module size | 320mm * 160mm |
| Cabinet size | 640mm * 480mm |
| Cabinet resolution | 416 (W) * 312 (H) |
| Main parameters | |
| Visual viewing distance | ≥1.53m |
| Horizontal viewing angle | ≥170°Vertical viewing angle: ≥170° |
| Color temperature | 1000K-10000K adjustable |
| Screen flatness | ≤0.2mm |
| Yes | Single point brightness and color correction |
| Brightness uniformity | ≥99% |
| White balance brightness | ≥550cd/㎡ |
| Design | De-blanking drive protection circuit and high grayscale high refresh design |
| Contrast | ≥10000:1 |
| Refresh rate | ≥3840 Hz |
| Frame frequency | ≥60HZ |
| Grayscale | 65536 |
| Drive mode | constant current |
| Control mode | synchronous |
| Control distance | network cable: 100 meters, optical fiber: 10 kilometers |
| Signal interface | RJ45 interface |
| Brightness adjustment range | 0 to 100 stepless adjustment |
| Continuous working time | ≥72 hours |
| Typical lifespan | 100,000 hours |
| Protection level | IP5X |
| Installation method Type | die-cast box hard connection, box fixed |
| Electrical parameters | |
| Working voltage | DC: 4.2-5V |
| Power supply requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz |
| Maximum power consumption | ≤650W/㎡ |
| Average power consumption | ≤230W/㎡ |
| Environmental parameters | |
| Storage temperature range | -20℃ to 60℃ |
| Working temperature range | -20℃ to 50℃ |
| Working humidity range | 10%-80%RH without condensation |
