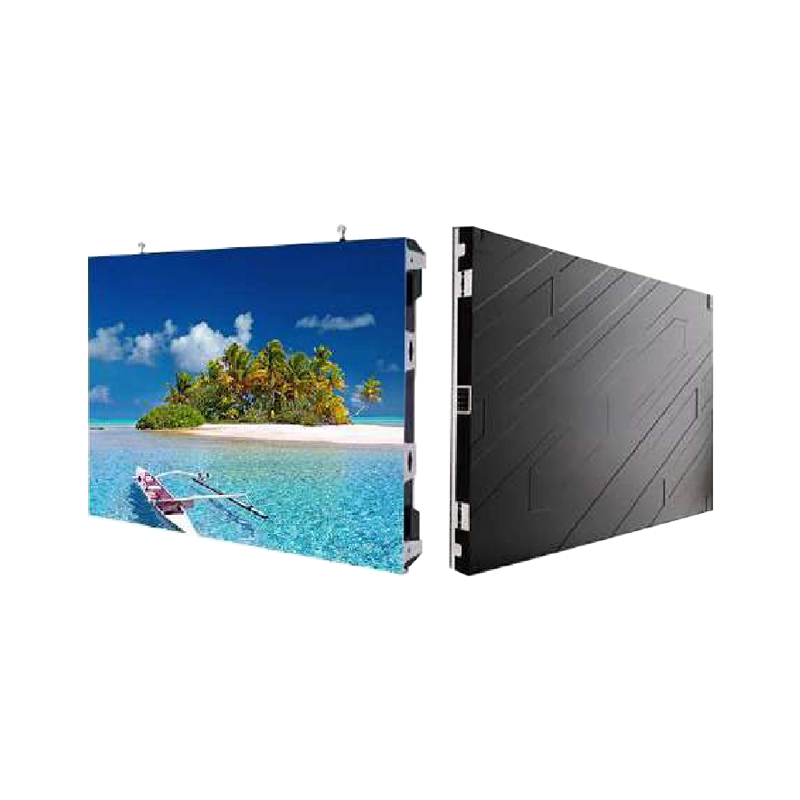

Indoor full color LED display GP500-YA
The LED display features high-resolution SMD/2020 lamp beads, wide viewing angles (≥160°), and excellent brightness uniformity with advanced single-point correction.
Categories: Dammam LED Screen Series
- Sorry, this product cannot be purchased.
Description
Parameter
| Lamp beads | SMD/2020 |
| Scanning method | 16S |
| Pixel pitch | 5mm |
| Pixel structure | 1R1G1B |
| Pixel density | 40000/m2 |
| Module resolution | 64 (W) * 32 (H) |
| Module size | 320mm * 160mm |
| Box size | 640mm * 480mm |
| Box resolution | 128 * 96 |
| Module display | Front-side GOB Process Treatment |
| Main parameters Numbers | |
| Visible viewing distance | ≥5m |
| Horizontal viewing angle | ≥160° Vertical viewing angle: ≥160° |
| Color temperature | 1000K-10000K adjustable |
| Whole screen flatness | ≤0.2mm |
| Yes | Single point brightness and color correction |
| Brightness uniformity | ≥99% |
| White balance brightness | ≥450cd/㎡ |
| Design | De-blanking drive protection circuit and high grayscale high refresh design |
| Contrast | ≥10000:1 |
| Refresh rate | ≥38 40Hz |
| Frame frequency | ≥60HZ |
| Grayscale | 65536 |
| Drive mode | constant current |
| Control mode | synchronous |
| Control distance | network cable: 100 meters, optical fiber: 10 kilometers |
| Signal interface | RJ45 interface |
| Brightness adjustment range | 0 to 100 stepless adjustment |
| Continuous working time | ≥72 hours |
| Typical lifespan | 100,000 hours |
| Protection level | IP5X |
| Safety Box specifications | Die-casting box magnetic installation |
| Electrical parameters | |
| Working voltage | DC: 4.2-5V |
| Power supply requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz |
| Maximum power consumption | ≤480W/㎡ |
| Average power consumption | ≤160W/㎡ |
| Environmental parameters | |
| Storage temperature range | -20℃ to 60℃ |
| Operating temperature range | -20℃ to 50℃ |
| Operating humidity range | 10%-80%RH without condensation |
