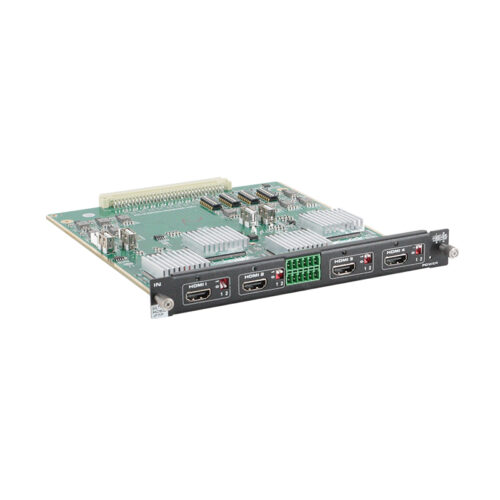

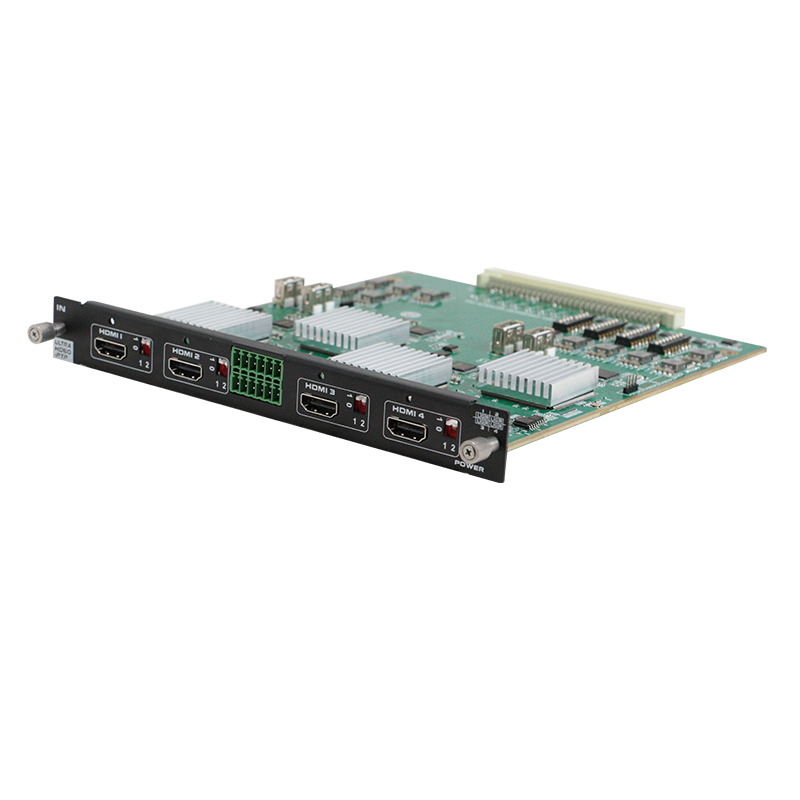

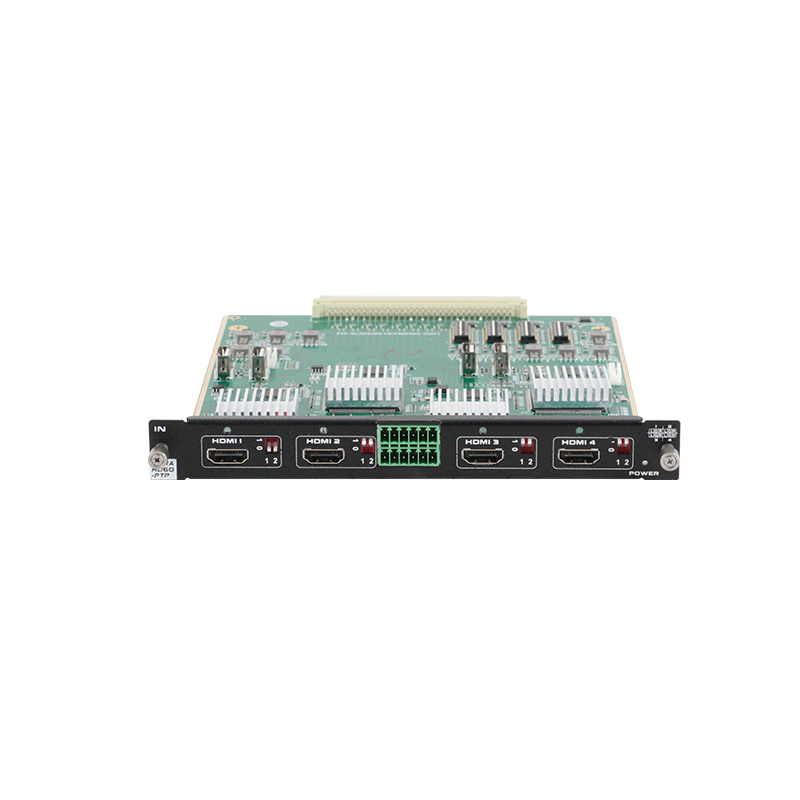

HDMI cross-resolution input board FT-4IHMST

The FT-4IHMST is a 4K HDMI input card with 4 HDMI interfaces, supporting resolutions up to 4Kx2K at 60Hz. It is compatible with HDMI2.0 and HDCP2.2 standards, offers seamless switching with 2K output boards, and includes features like power-off memory protection and 3.5mm audio embedding. The card supports hot-swap functionality and EDID management.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Supports 4-way HDMI signal input
  • Supports power-off on-site switching memory protection function, and unique ESD static protection function
  • Supports 3.5mm audio embedding
  • Compatible with HDMI2.0 and HDCP2.2 standards
  • Maximum resolution supports 4Kx2K@60Hz, with 10-meter cable length with equalization
  • Supports hot plugging, plug and play, extremely convenient.
  • Supports seamless switching function 8.FT-4IHMST is a 4K HDMI input card with 4 4K HDMI interfaces. It supports seamless switching with 2K output boards. It has a highly integrated board design and can be equipped with any number of boards as needed
    • Parameter
    Protocol HDMI2.0 standard, HDCP2.2 protocol
    Gain 0 dB
    Pixel bandwidth 300MHz, all digital
    Interface bandwidth 3.4Gbps, all digital (10.2Gbps in total, 3.4Gbps for each color)
    Maximum supported resolution 4Kx2K@30Hz
    Bit clock jitter (Clock Jitter) <0.15 Tbit
    Bit rise time (Risetime) <0.3Tbit (20%--80%)
    Bit fall time (Falltime) <0.3Tbit (20%--80%)
    Maximum transmission delay 5nS (±1nS)

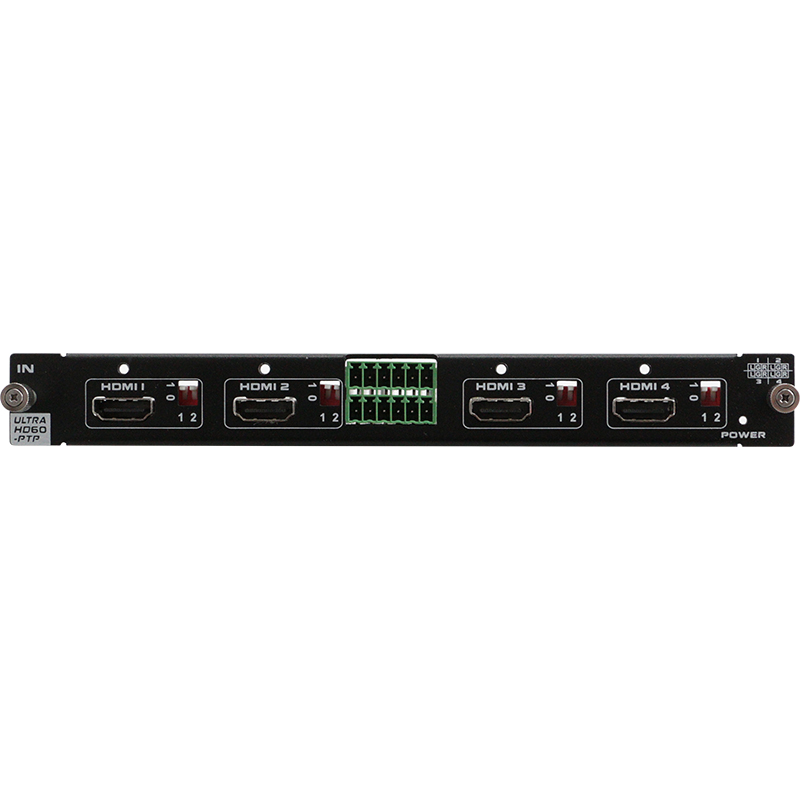

    Interface 4-way HDMI-A female interface/4-way 3.5mm audio interface
    Signal strength T.M.D.S.+/-0.4Vpp
    Minimum/maximum level T.M.D.S.2.9V/3.3V
    Impedance 50Ω
    EDID Support EDID management and learning
    Maximum DC bias error 15mV
    Recommended maximum input/output distance input less than 20 meters, at 1080P resolution (it is recommended to use certified HDMI dedicated cables, such as Molex TM wire)
    Product weight about 0.5KG
    Maximum power consumption 5W
    Donwload
    FT-4IHMST
