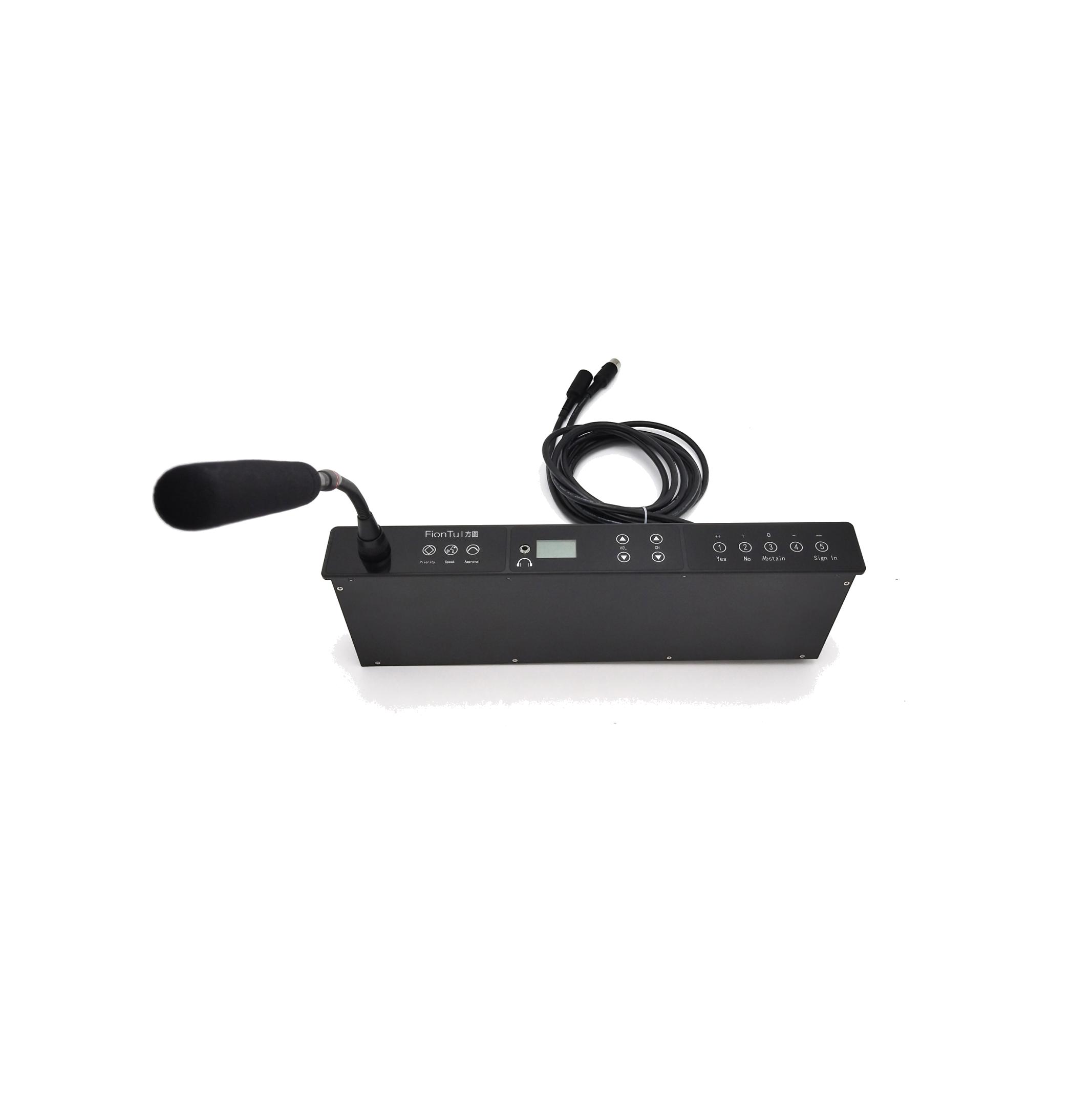

Fully digital conference unit G10 ETV

This conference system uses all-digital audio transmission with a 24bit/48KHz sound quality standard, offering 16-channel simultaneous interpretation, customizable speaking modes, and built-in DSP for optimal sound. It features a robust aluminum alloy design, a clear LCD display, and supports various software modules for enhanced functionality. The system ensures reliability with ring backup and "hot-plug" support for seamless operation.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Adopt embedded structure, easy to operate, neat and beautiful
  • Adopt aluminum alloy panel, sheet metal shell design, anodizing process, mainly used in high-end conferences, lecture halls and other professional occasions
  • All-digital audio transmission technology is adopted between conference units and between conference units and host, 24bit/48KHz sound quality standard, based on network uncompressed transmission
  • Built-in high-performance DSP audio chip, can independently adjust microphone gain, optimize audio signal, restore human voice, excellent sound quality
  • Built-in 5-band equalization, frequency shift, voice control and noise threshold settings
  • Support ring backup function, if one unit in the middle is broken, it will not affect the continued work of other units
  • With OPEN/OVERRIDE/VOICE/APPLY/PTT speaking mode
  • With 16-channel simultaneous interpretation function
  • With black and white dot matrix LCD screen, the display is clear at a glance Support working mode, unit authority type display (chairman, VIP, representative., speaking status, number ID, VOL value, simultaneous interpretation listening channel display With VOL button and CH button, the adjustment value is displayed synchronously
  • Speech module: Touch button with indicator light function Speak button, one-click to turn on or off speech Priority button, one-click to execute the chairman priority mode Approval button, the chairman can execute the unit speech approval in the application mode with one click
  • Voting module: Touch button with indicator light function Supports check-in, voting, review and election operations
  • Diverse software modules can realize multiple working modes, custom chairman/VIP, channel language selection, audio input/output, unit/host equalizer, recording, camera tracking, check-in and voting functions. The system is very forward-looking and new functions can be easily expanded in the future
  • 3.5mm stereo headphone jack can connect headphones and the volume can be adjusted
  • The system has automatic repair function and supports hot plugging of lines
    • Parameter
    Output frequency response40Hz-18KHz
    Maximum power consumption2.5W
    Working voltageDC 24V
    Screen size1.15 inches
    Screen resolution128*64 (DPI)
    Headphone output interfaceØ 3.5 mm stereo jack
    Headphone volume10mW
    Headphone load32Ω
    Materialaluminum alloy + sheet metal
    Connection methoddedicated 6-core cable
    Connector6P-DIN + buckle
    Colorblack
    Dimensions (length * width * height mm) Base372* 46*124, microphone rod: φ21.5*321 (without windshield)
    Standard spare partssponge windshield
    Frequency response20Hz-20KHz
    Directional characteristicsstrong directivity
    Output impedance680Ω
    Sensitivity-33 dB
    Microphone rod4-pin XLR female microphone rod (with LED indicator)
