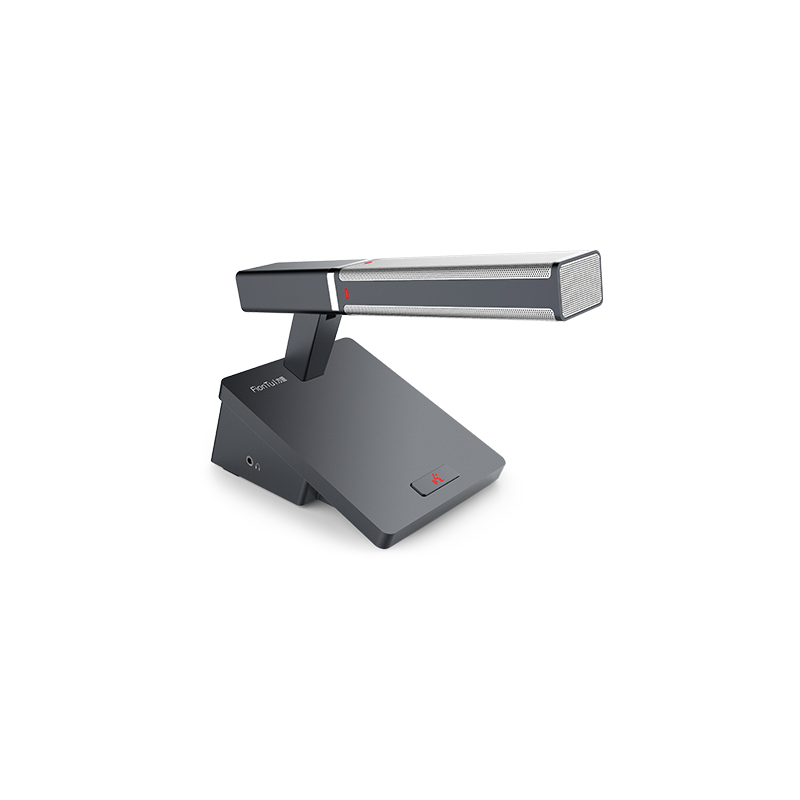

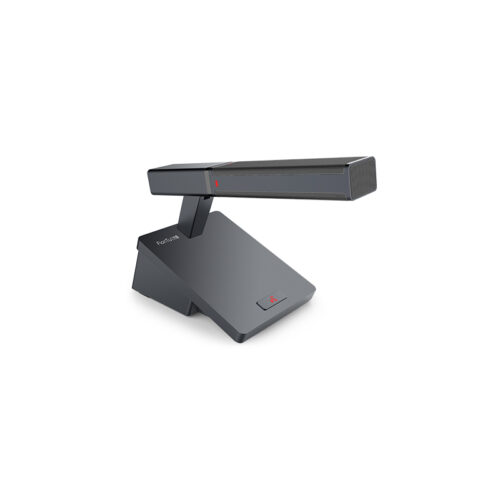

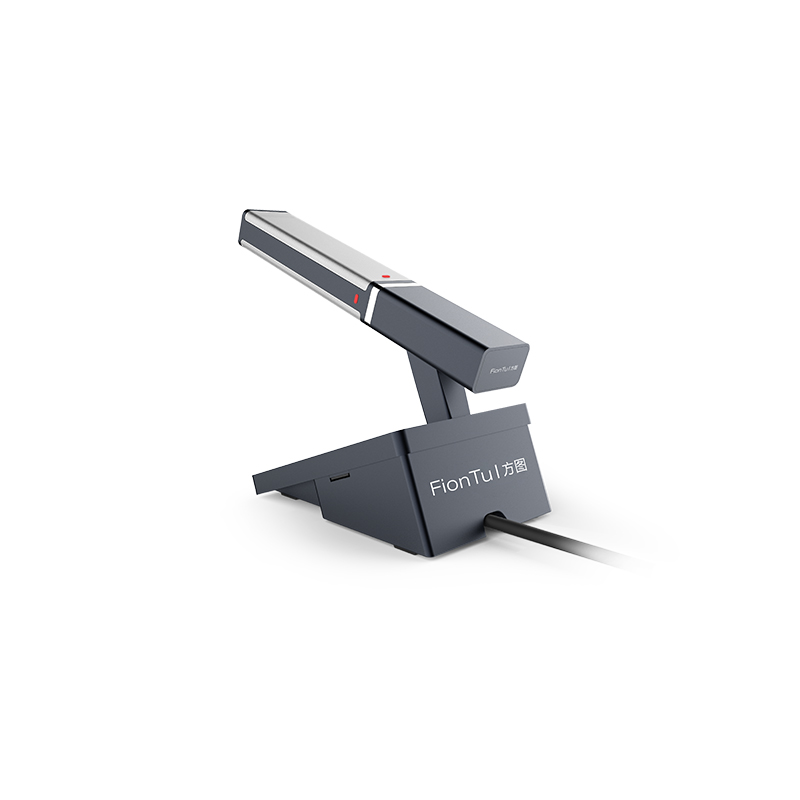

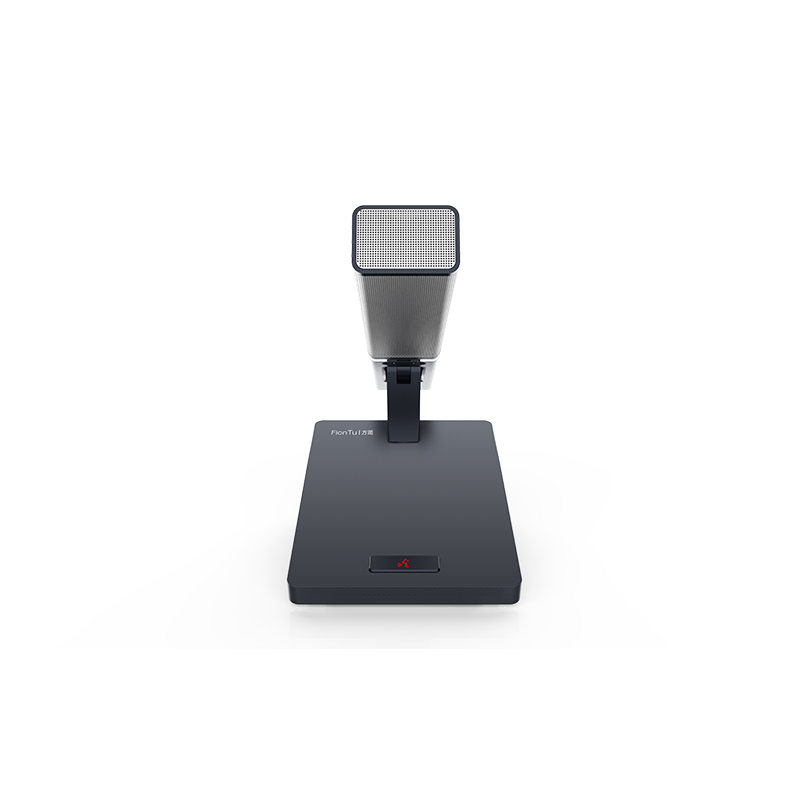

Digital Conference Unit G20 E-L

This microphone system features a high-fidelity gold film capsule with supercardioid pickup for superior sound quality and reduced interference. It offers customizable chairman unit functionality, adjustable microphone positioning, and supports automatic camera tracking with video switchers. The system also includes advanced features like automatic repair and hot-plug support for easy setup.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Top-grade gold film high-fidelity microphone capsule, super directional sound receiving effect, better sound quality
  • Built-in high-performance CPU, faster processing speed, better sound quality
  • Effective sound receiving angle of 100° can prevent interference from adjacent microphones and suppress howling
  • With video switcher and camera, after using computer preset, the camera automatic tracking function can be realized
  • Customized chairman unit configuration function, according to the needs of the site, any unit can be temporarily defined as the chairman unit, and there is no limit on the number of chairman units
  • Microphone adjustable elevation angle -50° to 45° (horizontal)
  • The system has automatic repair function and supports hot plug of lines
    • Parameter
    Output frequency response 40Hz-16KHz
    Signal-to-noise ratio >74 dB
    Dynamic range >108 dB(1 KHz)
    Total harmonic distortion <0.05%
    Maximum power consumption 1.5W
    Headphone volume 10mW
    Headphone load >16 Ω
    Headphone output interface  Ø 3.5 mm stereo jack
    Shell material Zinc/aluminum alloy
    Connection method FionTu conference six-core dedicated connection cable
    Weight 0.9kg
    Color Qiang blue
    Dimensions (mm)Length * Width * Height Microphone rod:200*34.5*23, base:138*98*54
    Microphone parameters
    Pickup microphone 14mm diameter gold-plated condenser microphone
    Directional characteristics Supercardioid
    Sensitivity -28 dB
    Frequency response 30Hz-18KHz
    Input impedance  2.2KΩ
    Maximum sound pressure level 130 dB (THD<3%)
    Equivalent noise 25 dB-A
    Donwload
    G20 E-L
