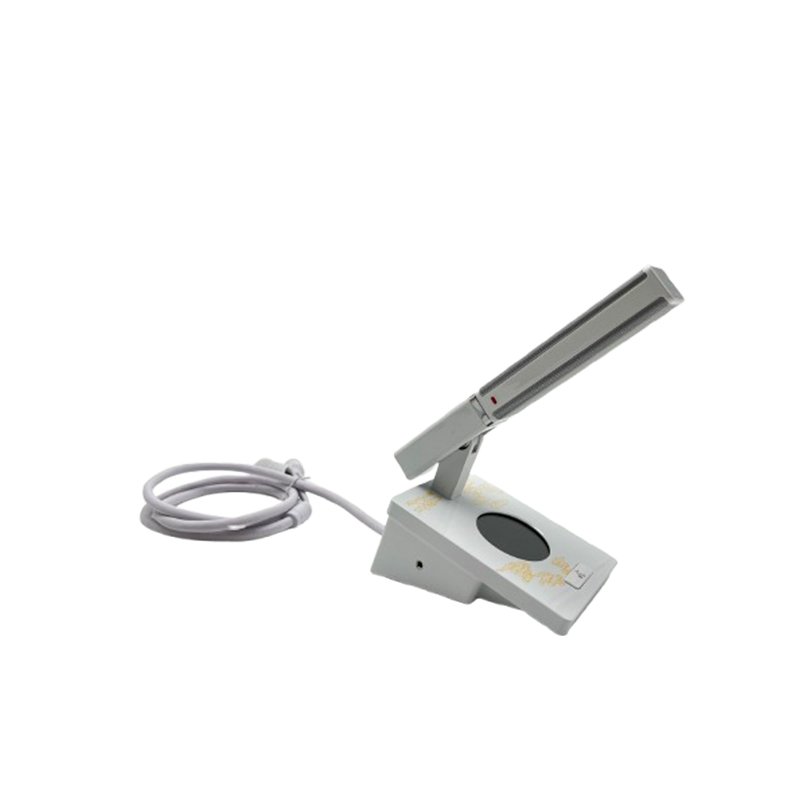

Digital and analog dual backup conference unit (ceramic white) G20F PLUS

A high-fidelity conference microphone with dual gold-plated condenser heads, supercardioid pickup, touch screen control, and advanced noise reduction. Supports encrypted communication, automatic camera tracking, real-time voting, and call linkage via LORA.
Categories:
Get Quote
Category
Description
  • All core components use domestic chips, and the summit version of high-fidelity pickup microphone pole design
  • Based on FionTu's original digital audio processing and transmission technology
  • Gold film high-fidelity microphone head, super directional sound pickup effect, better sound quality
  • Super strong anti-mobile phone interference ability
  • With microphone switch key to eliminate noise
  • Double backup system design, seamless integration of hand-in-hand conference system and phantom power microphone to ensure higher system reliability
  • Round high-resolution display touch screen: support dynamic clock display, call service, receive messages, display pictures, adjust volume, customize interface
  • Cooperate with management software to realize sign-in, voting, voting, election, scoring and other functions in real time
  • Cooperate with video switcher and camera, after using computer preset, the camera automatic tracking function can be realized
  • With call linkage function, remotely notify the security personnel to provide services through LORA technology
  • According to the encrypted communication protocol setting of the microphone host, the customized chairman machine configuration function can be temporarily defined as the chairman unit according to the needs of the site, and there is no limit on the number of chairman units
  • The system has an automatic repair function and supports "hot plugging" of the line
Parameter
 Output frequency response20Hz-20KHz
 Signal-to-noise ratio>76dB
 Dynamic range>110dB (1KHz)
 Total harmonic distortion<0.05%
 Maximum power consumption2.4W
 Phantom power supply48VDC
 Headphone volume10mW
 Headphone load>16Ω
 ScreenCircular diameter 50mm capacitive touch screen
 Headphone output interfaceØ 3.5mm stereo jack
 Screen resolution480*480
 StorageTF card
Microphone parameters
 Microphone head14mm diameter gold-plated condenser head*2
 Directional characteristicssupercardioid
 Sensitivity-28dB
 Frequency response20Hz-20KHz
 Input impedance2.2KΩ
 Maximum sound pressure level130dB (THD<3%)
 Equivalent noise25dB-A
Donwload
G20F PLUS Digital and analog dual backup conference unit (ceramic white)
