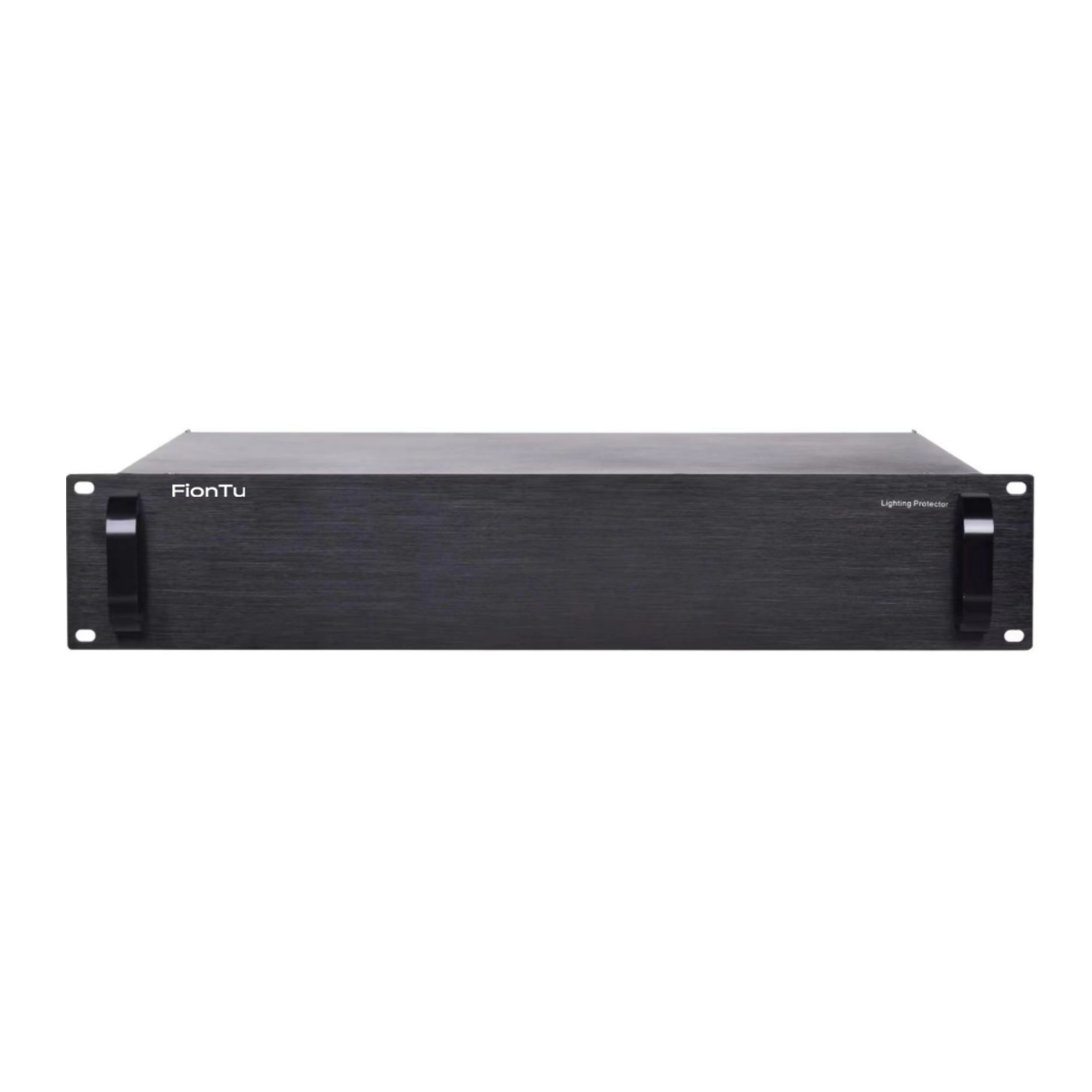

Broadcast lightning arrester FP4-C9816

This device provides lightning, overvoltage, and leakage protection for broadcast systems with 4-channel on/off control. It offers a high input/output capacity of 70-200V/20A per channel and advanced protection features including overvoltage threshold at 350V, Iimp (8/20) μs peak current of 30kA, and leakage protection ≥10mA.
Categories:
Get Quote
Category Tags , , , ,
Description
  • This device is used for lightning protection, overvoltage protection, and leakage protection in broadcast systems
  • 4-channel input and output on/off control
  • Clear normal operation and fault protection indication
  • Number of channels: 1-4, selectable
    • Parameter
    Input capacity70-200V, 20A per channel (power input)
    Output capacity70-200V, 20A per channel (power input)
    Overvoltage protection threshold voltage350V
    Rated discharge impulse current (Iimp (8/20) μs)Peak current 30kA
    Leakage protection current≥10mA
    Alarm output level0V (short circuit)
    Local protectionAC fuse
    Power supplyAC 220-240V/50-60Hz
    Dimensions484*365*88mm
    Donwload
    FP4-C9816
