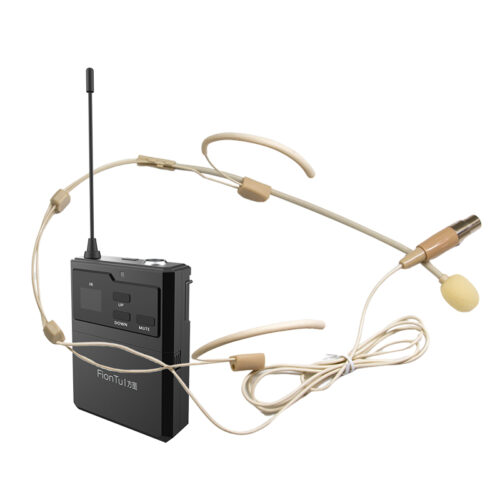

Beidou High Fidelity Wireless Headset Microphone A8-YMST1

The waistpack wireless transmitter features a mini-XLR interface, customizable settings, and a high contrast display with key information like frequency and battery status. It supports up to 150m working distance, with adjustable output power and up to 10 hours of battery life. The head-mounted microphone is omnidirectional, with a 50Hz-20KHz frequency response and wired connection.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Waistpack wireless transmitter, can be paired with a clip microphone or a headset microphone
  • High contrast display: can display frequency, frequency number, group number, battery power, transmission signal strength, mute status and other information
  • Standard mini XLR interface, strong compatibility, can be connected to different microphones
  • Equipped with 4 setting buttons, equipped with an easy-to-use navigation menu, easy to set up and use
  • Transmitter parameters can be modified: support modification of frequency, transmission power, volume, etc. on the microphone
  • Support multi-color LED indicator: can display 8 different color labels to identify paired channels
    • Parameter
    Audio interfaceMini-XLR
    Frequency range660.05-685.05MHz
    Dynamic range101dB
    Frequency response60-18KHz
    Frequency stability±0.005%
    Working distance150m (open and interference-free)
    Battery specifications2×1.5V AA
    Output powerhigh/medium/low three gears switchable
    Weight75g (excluding battery and microphone)
    Shell materialABS
    Size66*23*88 mm (length*width*height, excluding antenna)
    Battery lifehigh power about 7 hours；Medium power about 8 hours；Low power about 10 hours

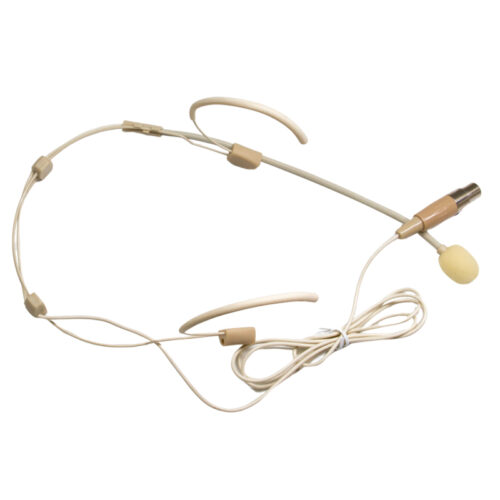

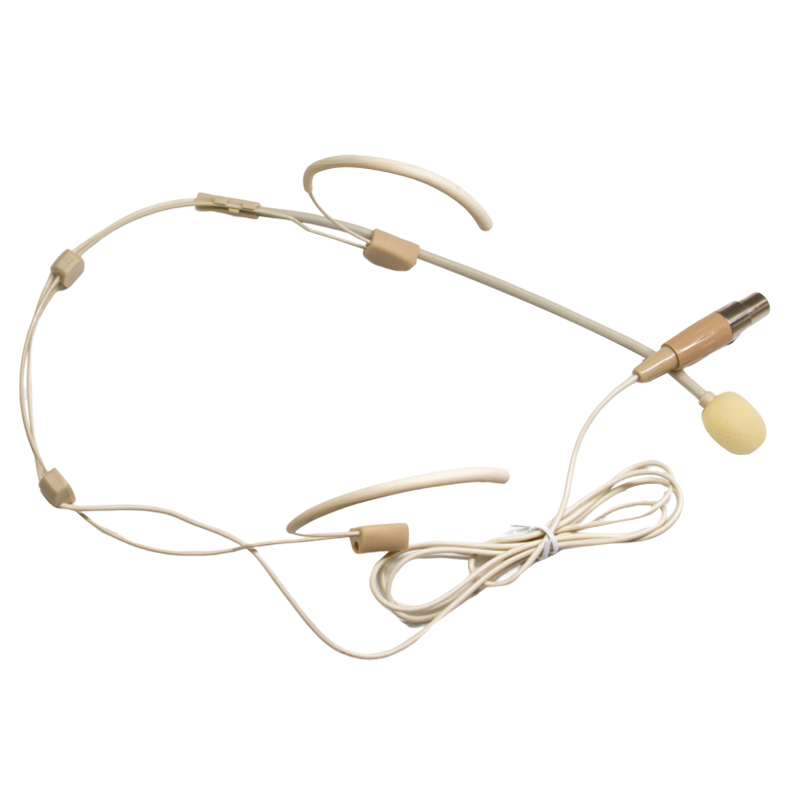

    Head-mounted microphone parameters
    Directional characteristicsomnidirectional
    Frequency response50Hz-20KHz
    Sensitivity-35±3dB
    Output impedance≦ 2.2KΩ
    Signal-to-noise ratio≥65dB
    Connectionwired (1.3 meters)
    InterfaceMini XLR
    Colorskin color
    Donwload
    A8-YMST1
