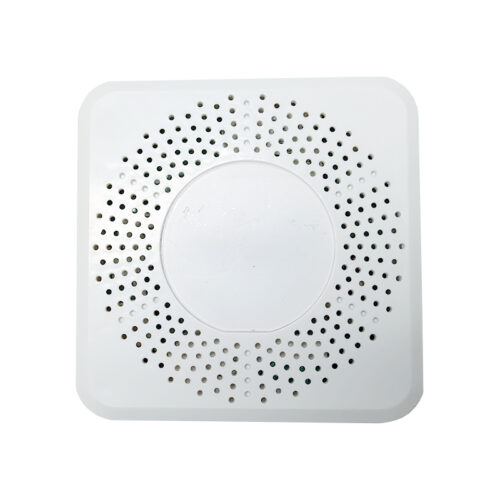

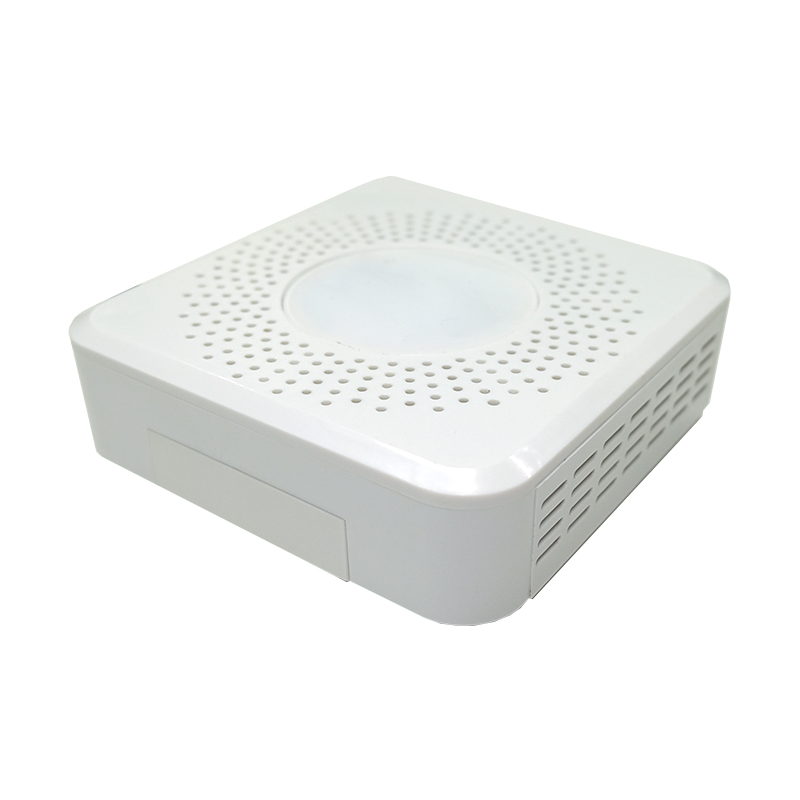

Air Quality Sensors FT-CM-AIR06

A multi-parameter environmental monitoring device measures temperature, humidity, PM2.5, PM10, TVOC, formaldehyde, and carbon dioxide with high resolution and accuracy. It uses RS485 communication with Modbus-RTU protocol and requires a separate 12V power supply.
Categories:
Get Quote
Category Tag
Description
Parameter
Power supply12V power adapter
Temperature-40~80 degrees Celsius, resolution 0.1 degrees Celsius, accuracy ±0.5 degrees Celsius
Humidity0~100RH%, resolution 0.1RH%, accuracy ±3RH%
PM2.50~999ug/m³, resolution 0.1ug/m³, accuracy <±10%
PM100~999ug/m³, resolution 0.1ug/m³, accuracy <±10%
TVOC0~50ppm, resolution 0.1PPM, accuracy <±15%
Formaldehyde0-2PPM, resolution 0.01PPM, accuracy <±15%
Carbon dioxide0~2000PPM, resolution 1PPM, accuracy ±4%
Communication protocolModbus-RTU
Communication interfaceRS485
Communication baud rate9600bps
Size120 * 120 * 42mm
Powersupply needs to be configured separately
Donwload
FT-CM-AIR06
