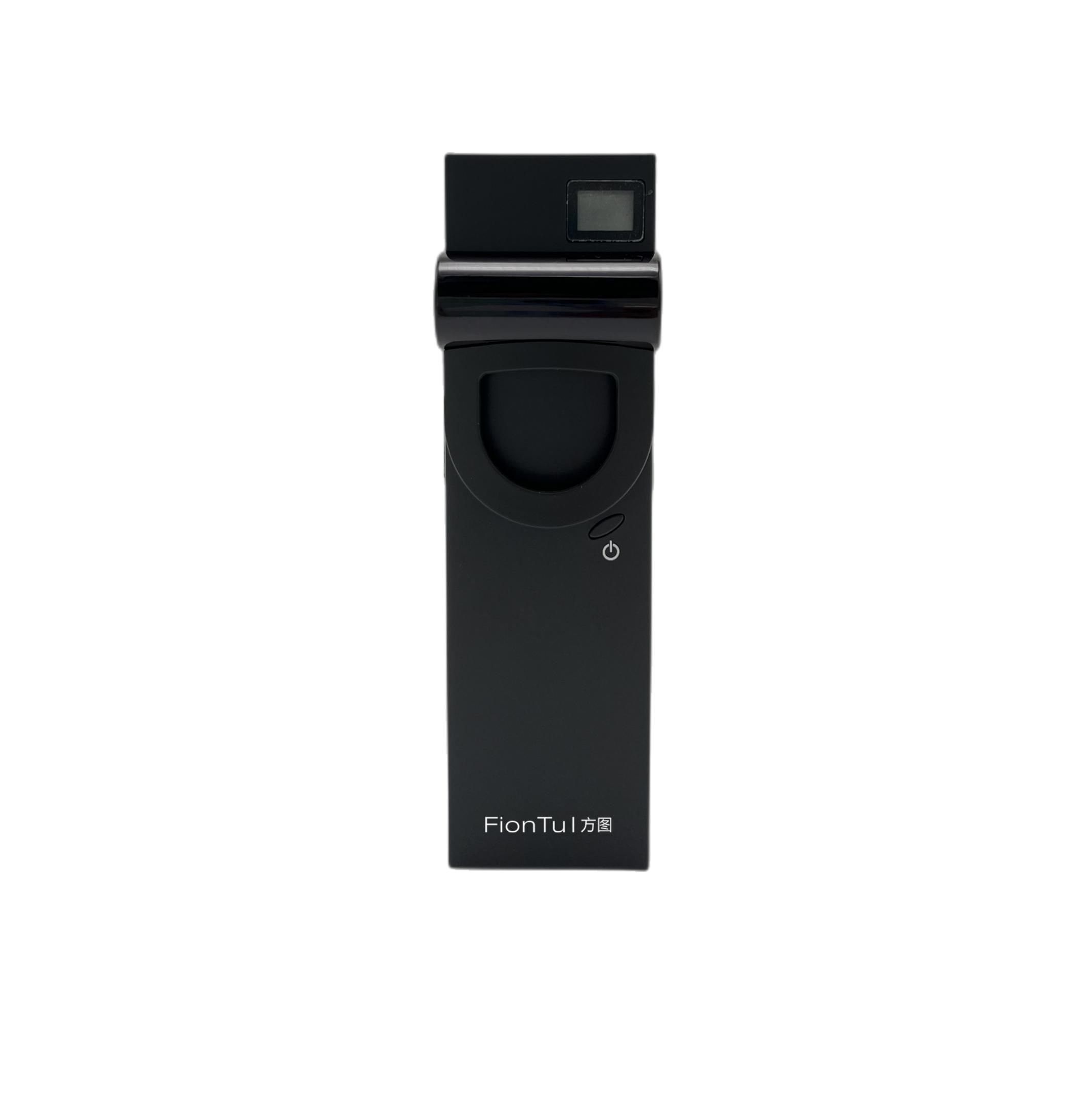

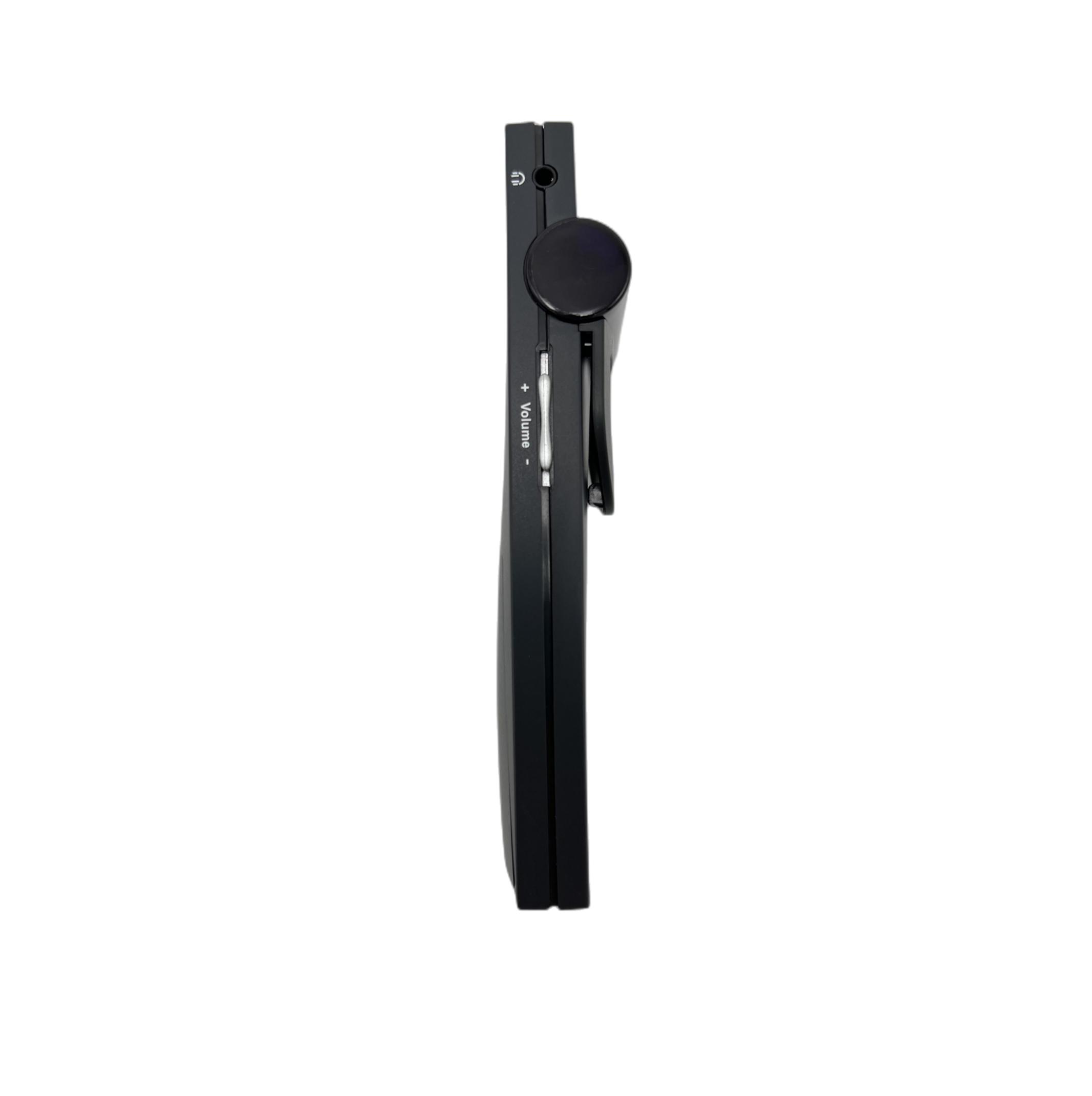

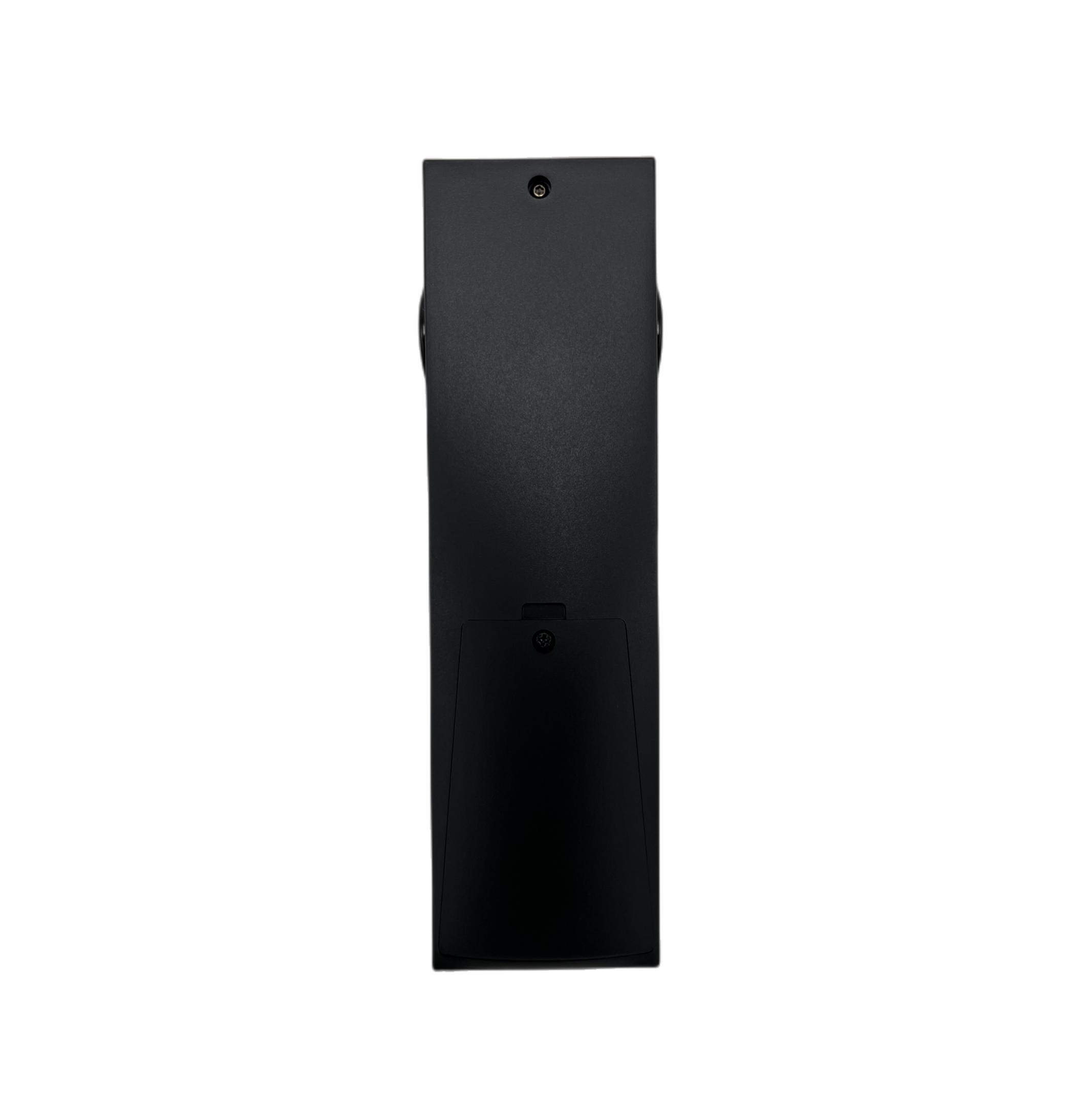

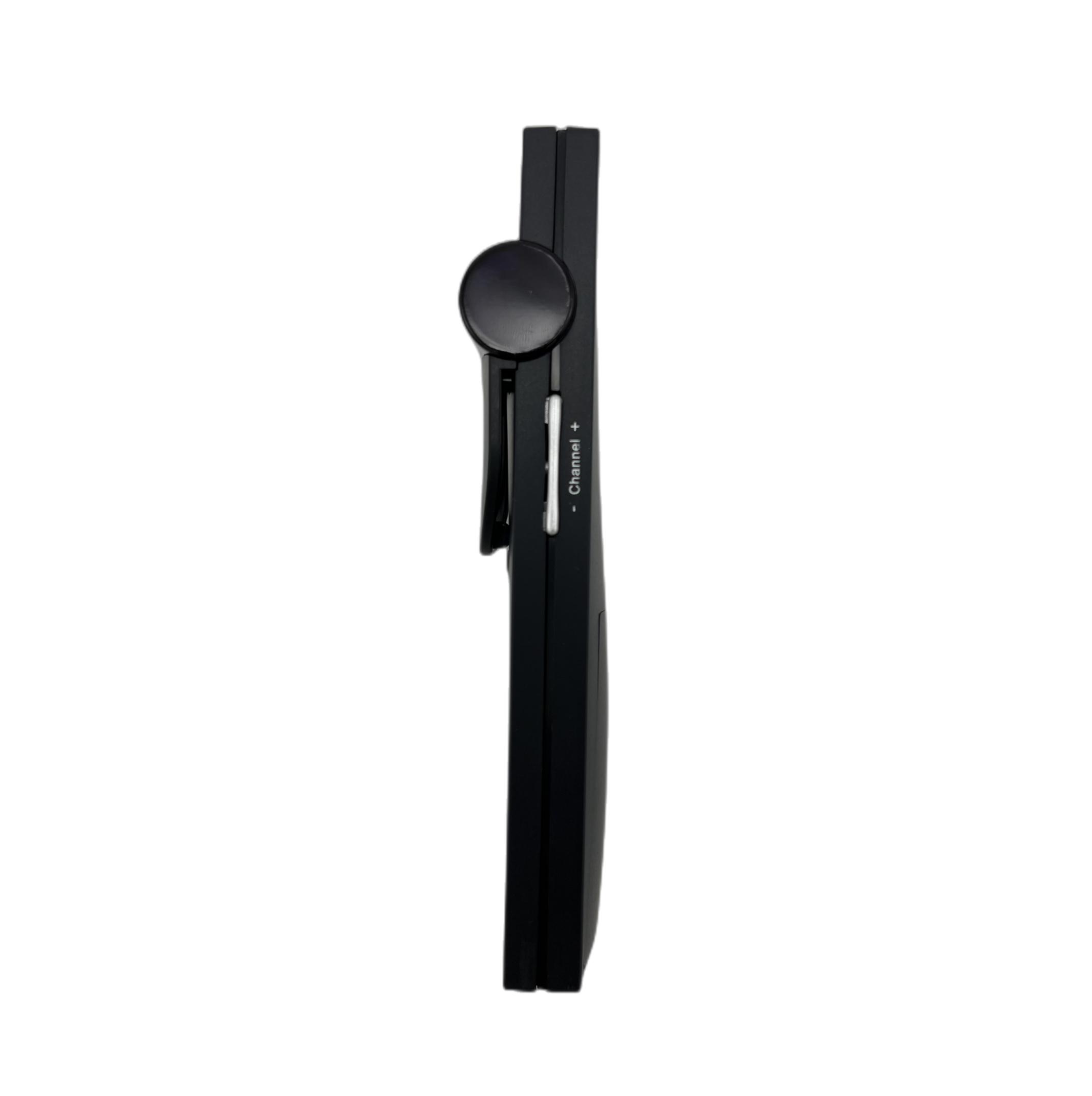

8-channel receiving unit FT-A-TR8

This infrared receiver, supporting up to 8 channels, ensures high-quality, low-noise digital transmission with a wide dynamic range. It features an ergonomic, lightweight design with a user-friendly LCD display and 16-level volume control. Powered by rechargeable or AA batteries, it offers over 30 hours of battery life and automatic shutdown when idle.
Description
Parameter
 Sensitivity angle270
 Headphone output volume at 2.4V450mVrms
 Headphone output frequency response20Hz ~ 20kHz
 Headphone output impedance32 ohms
 Maximum signal-to-noise ratio>80dBA
 Power supply voltage1.8V – 3.6V, nominal 2.4V
 Battery working timemore than 30 hours
 Dimensions (mm)155×44×19
 Weight135g (including battery)
