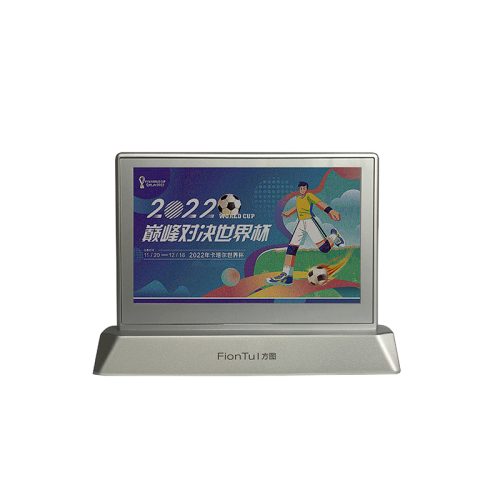

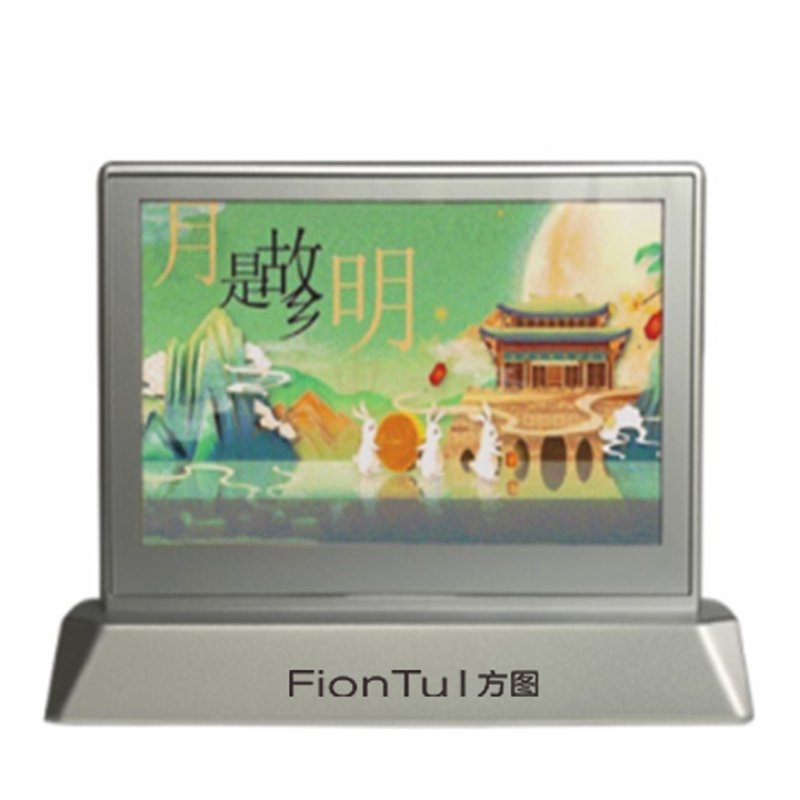

7.3-inch seven-color ink screen dual-screen smart electronic conference table sign FT-MZP

The ink screen electronic conference table is an eco-friendly, paperless device using wireless NFC and Bluetooth technology for seamless information display, ideal for high-end conference venues. It features a 7.3-inch E-Ink screen with a customizable dual-sided display, low power consumption, and a battery life of over a year. This system supports Android and Hongmeng devices, offering quick, efficient updates via mobile or cloud management.
Categories:
Get Quote
Category Tags , , , ,
Description
  • The ink screen electronic conference table is an intelligent paperless conference device that transmits display information to the terminal through wireless technology, combined with mobile phones and cloud management systems. Applicable to conference rooms of high-end hotels, government agencies, large enterprises and companies.
  • Low-carbon and environmentally friendly, simple to operate, replaces traditional paper table signs, reduces paper printing, and arranges the venue in advance. It is the best choice for the information upgrade of major conference venues.
  • Compared with traditional electronic table signs, it has the characteristics of no reflection when taking photos, no glare when watching for a long time, no black screen when power off, and strong battery life.
  • The screen adopts E-Inkink screen technology, which is easy to read, flicker-free, radiation-free, and does not hurt the eyes when watching for a long time. The reading angle can be close to 180°, and full-angle reading can bring a better reading experience.
  • Energy saving and power saving, the display is static, power failure does not affect the display content, no refresh and no power consumption, extremely low power consumption, built-in 2 built-in No. 5 Nanfu alkaline batteries, enough power to support no less than 2000 times to modify the display information, can be used for more than 1 year, and ultra-long standby.
  • Adopts advanced Bluetooth + N FC technology, wireless control, one-click refresh, fast and efficient, flashing not only relies on NFC, but also supports any Android and Hongmeng system mobile phones with Bluetooth to modify the table card display information.
  • Both sides can display different information and names, the background can be customized, built-in multiple background skins, support custom image import.
  • Support computer cloud server, management of personnel information, grouping, template background, etc.
    • Parameter
    Screen size7.3 inches
    Product size208*44*149.6mm (length × width × height)
    Screen colorblack and white, red, blue, yellow, orange and green seven-color screen display
    Screen resolution800*480
    Visible area160.0(H)*96.0(V)mm
    DPI127
    Processaluminum alloy metal shell/ABS
    Display contentsupport name, position, meeting theme, unit, etc.
    Working environmentworking  temperature  :15 ～ 35  ° C,  storage  temperature:  -25 ～ 60  ° C,  relativehumidity: 5%～95% (no condensation)
    Background templatecustomize various fonts, font sizes, and adjust background templates
    Power consumptionscreen  refresh  working  current  50mA,  standby  current  below  0.2mA,  working voltage:2.5-3.6V
    Communication methodNFC, Bluetooth
    Product weight528.9g
    Installation methoddesktop, ready to use
    Battery lifeBuilt-in No. 5 Nanfu alkaline battery, fully charged can be used for 1 year
    Operating systemAndroid and  Hongmeng system phones, do  not support Apple phones without IOS
    Power supplybattery power
    NFC recognition distance<1cm
    Grayscaleblack, white, red, blue, yellow, orange, green 2 grayscales
    Displayhorizontal screen display
    Heat dissipation methodnatural air cooling
    Structureupright double-sided display, base local integrated
    Data upload time<5s
    Image transmission mode 1Image transmission through NFC in the center of the display
    Image transmission mode 2Image transmission through mobile phone Bluetooth, keep the transmission range of 0-5m for best
    Donwload
    FT-MZP
    Get Quote
