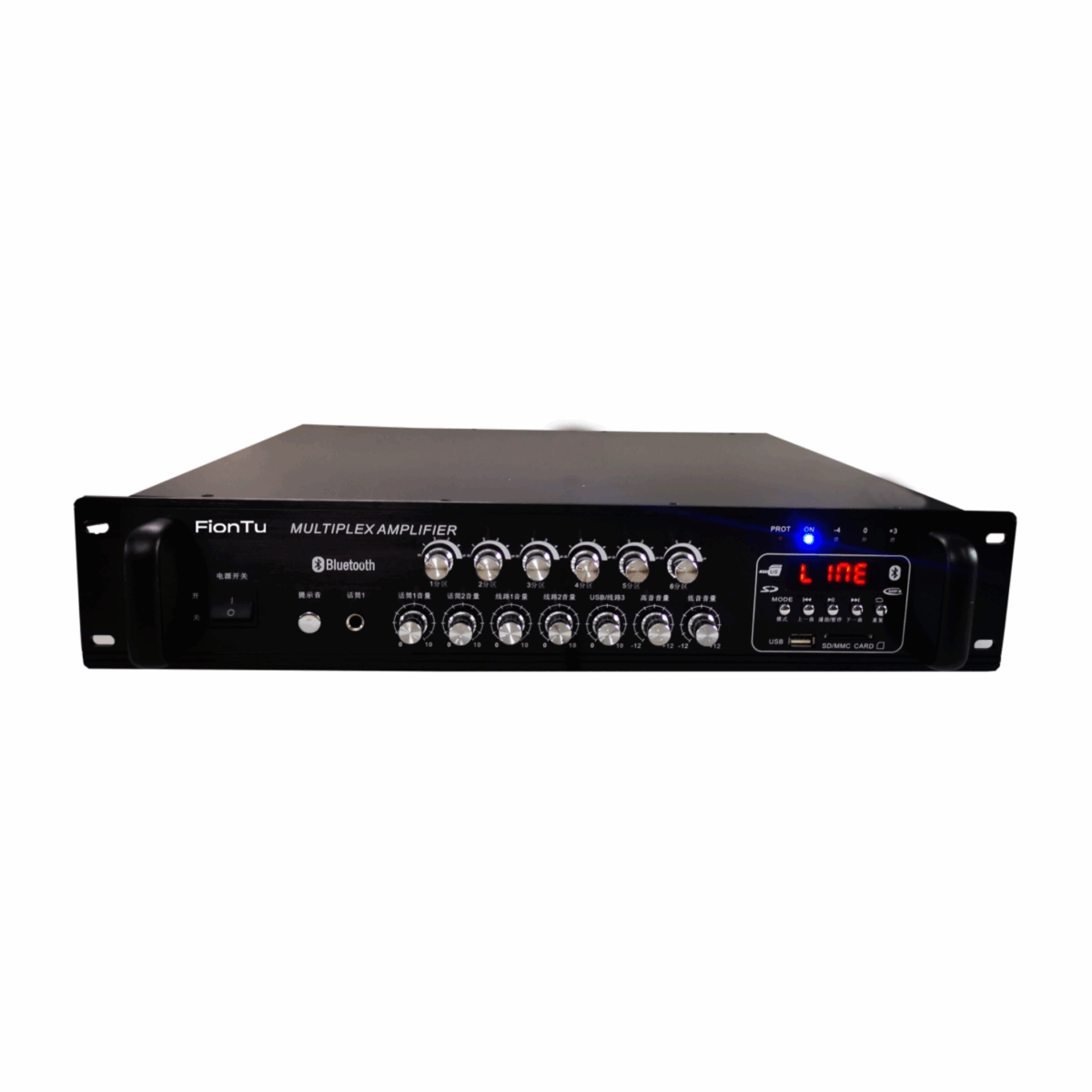

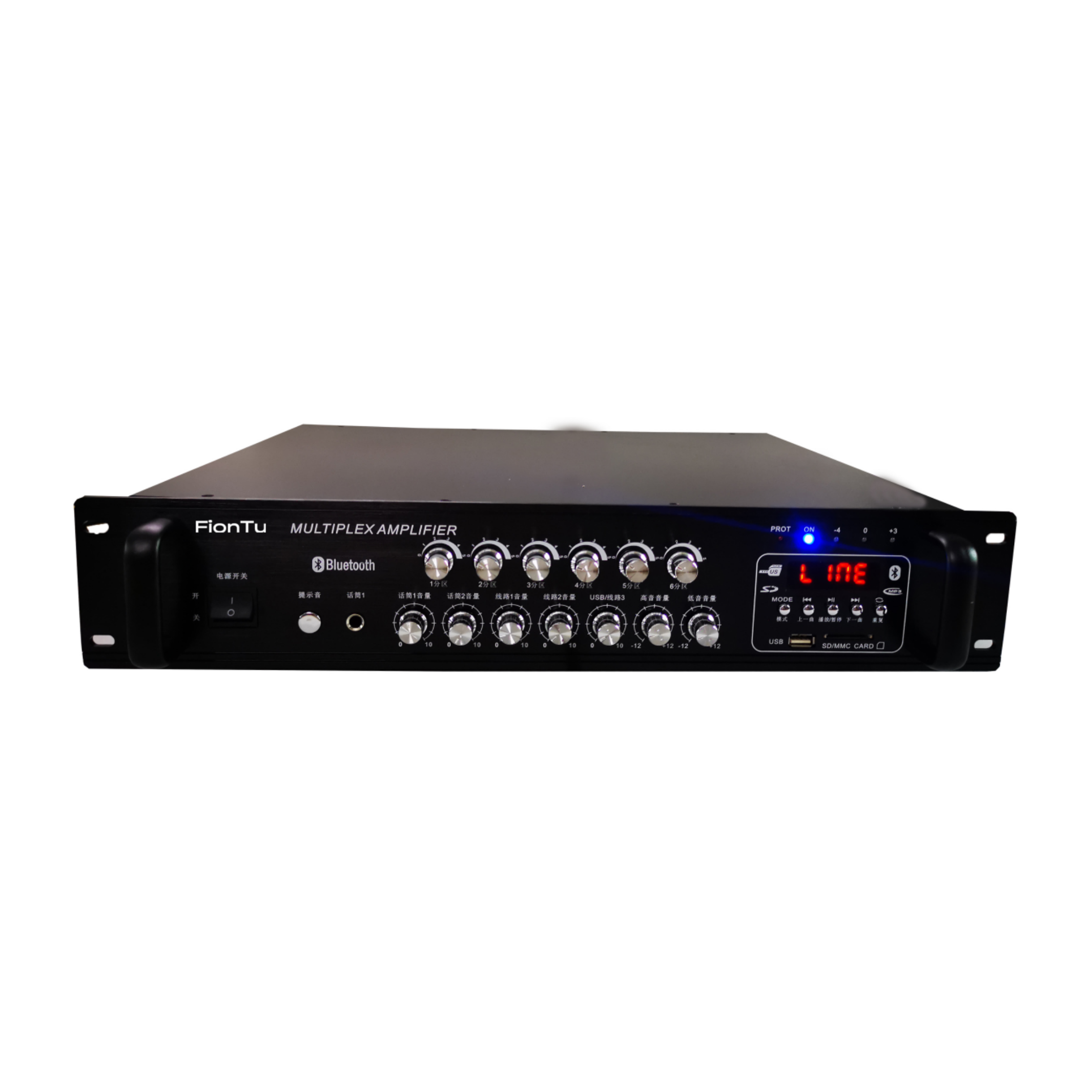

6-zone integrated amplifier FP4-G6360V

Key Points: This professional 360W amplifier features 2U aluminum chassis design with multi-zone outputs (70V/100V/4-16Ω), integrated MP3/FM/Bluetooth player, and comprehensive protection circuits. It offers 6-channel zoning control, professional DSP processing with bass/treble EQ, and advanced thermal/short-circuit protections for stable performance.
Categories:
Get Quote
Category Tags , , , ,
Description
Parameter
Rated Power360W
Output70V, 100V, 4-16Ω, CH1-CH5
Input Sensitivity/ImpedanceMIC1, 2, 5mV/600Ω, unbalanced TS input, AUX1, 2, 3: 350mV/10kΩ, unbalanced RCA input
Output Sensitivity/Impedance1000mV/470Ω, unbalanced TS output
Overload Source EMFMIC1, 2, 3: >12dB, unbalanced TRS input, AUX1, 2, 3: >20dB, unbalanced RCA input
Tone (Bass)±10dB @100Hz
Tone (treble)±10dB @10kHz
Frequency response50-16kHz (+1dB, -3dB)
Signal-to-noise ratioMIC1, 2: 66dB, AU1, 2, 3: 80dB
Total harmonic distortion0.5% at 1kHz, 1/3 output power
Mute functionMIC1 takes priority over other channels
Channel crosstalk attenuation≤50dB
CoolingFront-to-back forced air cooling
ProtectionOverheating, overload, and short circuit
Donwload
FP4-G6360V
